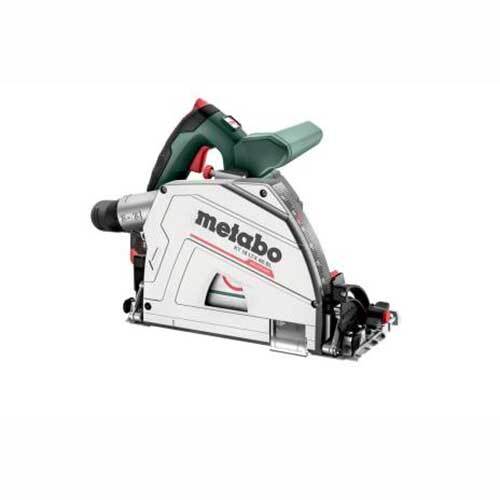

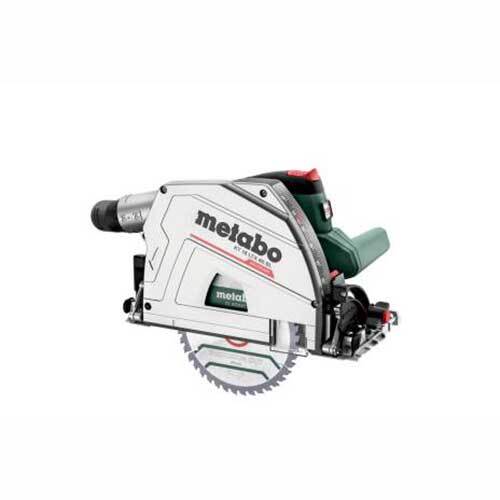

Metabo 18V 165mm Brushless Plunge Cut Circular Saw 2250 - 5000rpm - Tool Only
Available
The Metabo KT 18 LTX 66 BL (order number 601866840) is a cordless plunge cut saw with a brushless motor and a 165 x 20mm saw blade. It is made for powerful plunge cuts and precise cuts up to a depth of 66mm, with a variable no-load speed of 2250 - 5000rpm.
It has a saw blade, dust bag, hexagonal wrench and metaBOX 340. The saw is supplied without battery pack and without charger.
Where this product is used

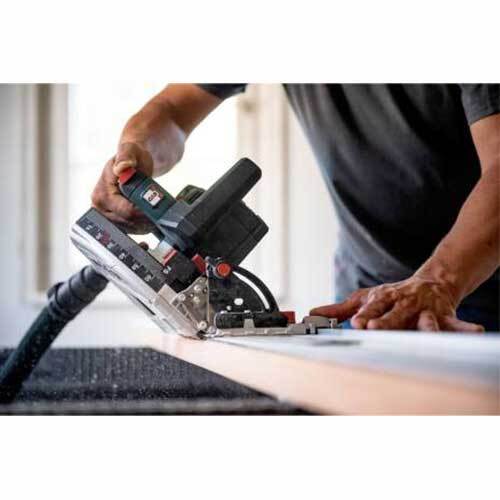

- Plunge cuts and precise cuts up to a depth of 66mm
- Cutting different materials, using the variable speed
- Sawing close to the wall, possible down to 14mm

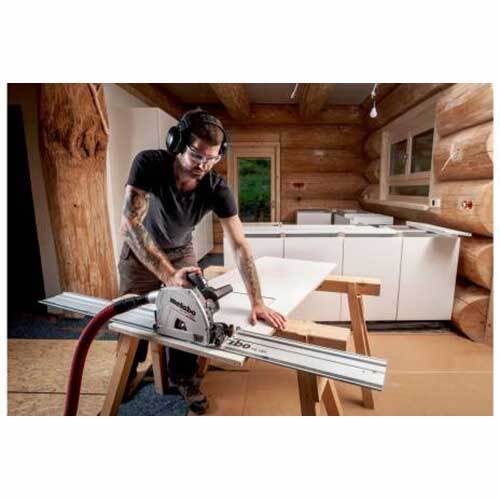

- Cutting with or without a guide rail, using the double guide for setting the cutting depth
Features
- Brushless motor, used with LiHD high-performance battery packs

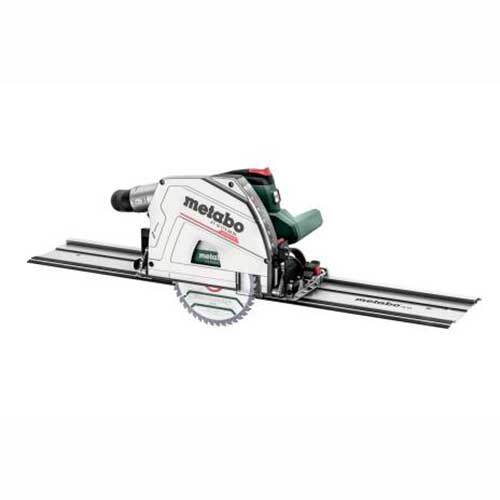

- The saw can be fitted without play on guide rails from Metabo and other manufacturers
- Variable speed for different materials
- Double guide for precise setting of the cutting depth with and without guide rail
- Undercut function for precise transitions, with 0° and 45° position readjustable
- Low-dust sawing with a large-volume dust bag or by connecting a vacuum cleaner
- Automatic switching on and off of a connected vacuum cleaner with CordlessControl (available as accessory)
- Fast brake stops the saw blade quickly
- Viewing window in the guard for precise cutting guidance
- Lever for locking the plunge position and spindle stop for fast, easy saw blade changes
Key specifications
| Specification | Detail |
|---|---|
| Brand | Metabo |
| Model | KT 18 LTX 66 BL |
| Order number | 601866840 |
| Battery voltage | 18V |
| Swivel range from / to | -1 / +46° |
| Adjustable cutting depth | 0 - 66mm (0 - 2 19/32") |
| Maximum cutting depth at 90° | 66mm (2 19/32") |
| Maximum cutting depth at 45° | 43mm (1 11/16") |
| Max. cutting depth with guide rail | 61mm (2 13/32") |
| Saw blade Ø x bore | 165 x 20mm (6 1/2 x 5/8") |
| No-load speed | 2250 - 5000rpm |
| Max. cutting speed | 43m/s |
| Weight without battery pack | 4.3kg |
| Weight with battery pack | 5.3kg |
| Vibration, sawing chipboards | 2.5 m/s² (K 1.5 m/s²) |
| Sound pressure level | 93 dB(A) |
| Sound power level (LwA) | 101 dB(A) (K 3 dB(A)) |
Supplied with
- Saw blade "precision cut wood - classic" 165x20 Z42 WZ 5°
- Dust bag
- Hexagonal wrench
- MetaBOX 340
- Without battery pack, without charger
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Metabo 18V 165mm Brushless Plunge Cut Circular Saw 2250 - 5000rpm - Tool Only
SKU: A0175000 | Model: 601866840
The KT 18 LTX 66 BL (601866840) weighs 4.3kg without battery pack and 5.3kg with battery pack. It is supplied without battery pack and without charger.
