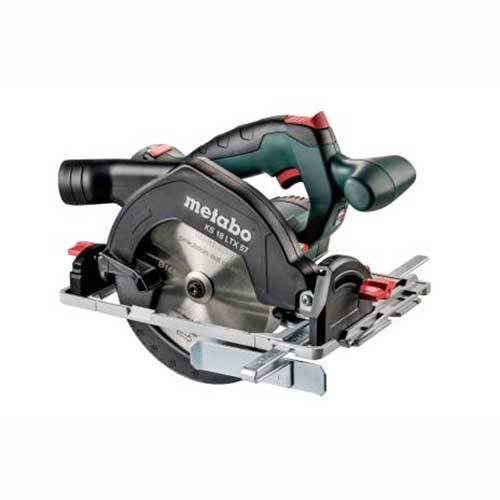

Metabo KS 18 LTX 57 Cordless Circular Saw

• Powerful, light, cordless circular saw for universal use on construction sites
• Aluminium base plate can be directly used on guide rails from Metabo and Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers
• Fast brake stops the saw blade quickly and improves safety
• Accurately angled bevel cuts down to 50°, with handy snap-in point at 45°
• 0° position re-adjustable for highest cutting precision
• Clearly visible cutting indicator for precise sawing after initial cut
• Handle with non-slip soft-grip surface for safe guidance
• Extraction possibility by means of connecting an all-purpose vacuum cleaner (not included)

Contents

• Carbide circular saw blade (18 teeth)
• Without battery pack, without charger
• Parallel guide
• Hexagonal wrench

Technical Data

• Battery voltage: 18 V
• Maximum cutting depth at 90°: 57 mm / 2 1/4 "
• Saw blade Ø x bore: 165 x 20 mm // 6 1/2 x 5/8 "
• No-load speed: 4600 rpm

Characteristics

Type of battery pack
Li-Power
Battery voltage
18 V
Swivel range from/to:
‌ 0 / + 50 °
Adjustable cutting depth
0 - 57 mm / 0 - 2 1/4 "
Maximum cutting depth at 90°
57 mm / 2 1/4 "
Maximum cutting depth at 45°
43 mm / 1 11/16 "
Max. cutting depth with guide rail
52 mm / 2 1/16 "
Saw blade Ø x bore
165 x 20 mm // 6 1/2 x 5/8 "
No-load speed
4600 rpm
Max. cutting speed
40 m/s / 129 ft/min
Weight without battery pack
2.8 kg / 6.2 lbs
Weight with battery pack
3.2 kg / 7.1 lbs

Vibration

Sawing chipboards
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
92 dB(A)
Sound power level (LwA)
103 dB(A)
Uncertainty of measurement K
3 dB(A)
