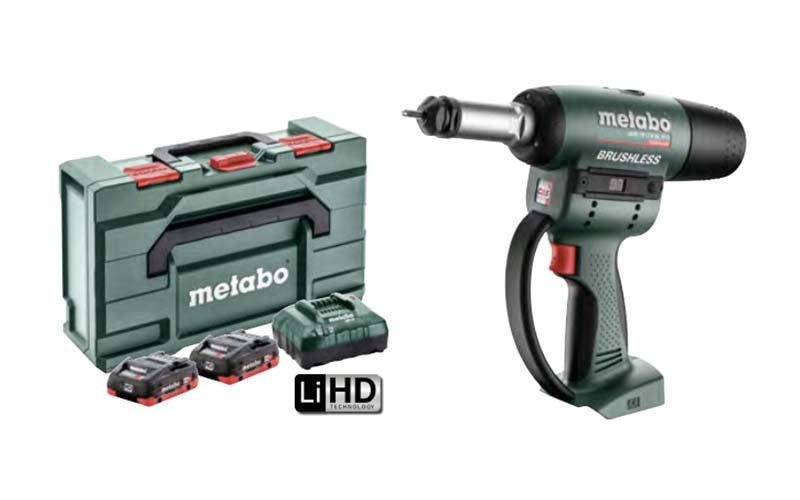

Metabo Cordless Rivet Nut Gun Kit - AU60178800

• Rivet Nut Gun NMP 18 LTX BL M10
• 2 x 4.0 Ah LiHD Battery Packs
• ASC 55 Air-Cooled Charger
• metaBOX 145 M case

About NMP 18 LTX BL M10

• Cordless rivet nut gun with setting power adjustment for blind rivet nuts up to M10 in aluminium, M8 in steel, M6 in stainless steel.
• Versatile use thanks to mandrel quick change system.
• Automatic drill-on of the blind rivet before setting.
• Time-saving auto-reverse function: Pull mechanism returns to starting position after setting and nut is drilled off the mandrel.
• Easy presetting of the placement force on the LED display for working that is gentle on the material and threads.
• LED display with protective cover: 10 memory positions for retrieveable settings.
• Selectable LED light during setting or continuously (max. 10 min).
• Eyelet for energy-saving work with balancer / spring tension.
• With matching adapter (accessory) also suitable for blind rivet studs.
• Powerful Brushless motor for quick work progress and highest efficiency.
• Practical storage screwed onto the housing for additional mandrels.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Technical Data

Characteristics

Battery voltage
18V
Max. blind rivet nuts in aluminium
M10
Max. blind rivet nuts in steel
M8
Max. blind rivet nuts in stainless steel
M6
Placement force
15 kN
Device travel
10mm / 3/8"
Weight without battery pack
2 kg
Weight with battery pack
2.4 kg

Vibration

Uncertainty of measurement K
1.5 m/s²

Noise emission

Sound pressure level
52 dB(A)
Sound power level (LwA)
63 dB(A)
Uncertainty of measurement K
3 dB(A)

About LIHD Battery Pack

• LiHD battery packs for ultimate performance and extremely long application with minimal temperature generation.
• Intelligent battery management for long-lasting battery packs with a 3-year warranty.
• Patented “AIR COOLED“ charging technology.
• Permanent Electronic Single Cell Protection (ESCP) when charging, for particularly long life.
• Processor-controlled charge and discharge management.
• Capacity display with almost no self-discharge.

About Air Cooled Charger ASC 55

• The universal one: one charger for all slide-on battery packs of all Volt classes (12-36V).
• Patented "AIR COOLED" charging technology for short charging times thanks to cooling the battery pack during the charging cycle.
• Optimal communication between battery pack and charger for maximum service life of the battery packs.
• 3-year warranty on all Metabo battery packs and chargers irrespective of the number of charging cycles.
• "Air Cooled" function: the patented principle is based on air-cooling the battery pack during the charging process.
• The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved.
• Battery voltage: 12 - 36 V
• Mains voltage: 220 - 240 V
• Mains frequency: 50 - 60 Hz
• Max. charging current: 3 / 4 A
• Output rating: 55 W
• Charging time for 18 V/4.0 Ah: 80 min
• Charging time for 18 V/8.0 Ah: 160 min
