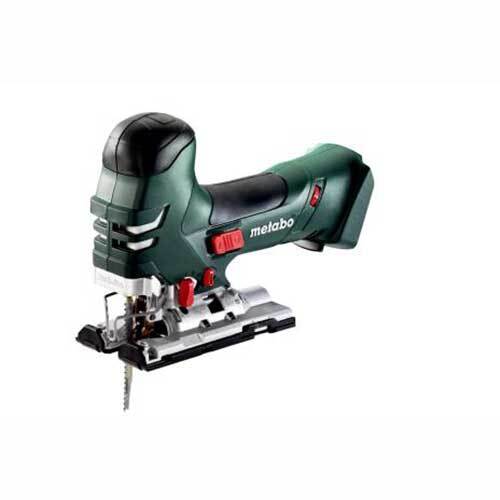

Metabo STA 18 LTX 140 Cordless Jigsaw

• Extremely powerful jigsaw with VTC-Electronics for fast cuts into softwood of up to 140 mm
• High sawing performance: in excess of 40 metres in chipboard (19 mm) with only one battery pack charge
• Extremely handy due to small handle size and soft-grip surface
• Precise and material-matched sawing due to the variable stroke rate, pendulum stroke and low-lying saw blade guidance with spring support
• Metabo "Quick" for changing saw blades without tools and with automatic ejection
• Convenient automatic start-up with automatic stroke rate acceleration
• Simple bevel cuts thanks to footplate with rest points that can be adjusted without tools
• Selectable shaving blower function ensures free view of cutting line
• Integrated LED work light for illumination of the cutting line
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised stroke rates, which remain constant under load
• Restart protection: prevents unintentional start-up after battery pack change
• Long service life thanks to optimum gear and motor design and robust die-cast aluminium gear housing

Contents

• Plastic guard plate
• Chip guard plate
• Without battery pack, without charger

Technical Data

• Battery voltage: 18 V
• Cutting depth wood: 140 mm / 5 1/2 "
• Strokes in idle: 1000 - 3000 rpm

Characteristics

Type of battery pack
LiHD
Battery voltage
18 V
Cutting depth wood
140 mm / 5 1/2 "
Cutting depth NF metal
35 mm / 1 3/8 "
Cutting depth sheet steel
10 mm / 3/8 "
Swivel range from/to:
- 45 / + 45 °
Pendulum stroke levels
4
Strokes in idle
1000 - 3000 rpm
Saw blade stroke
26 mm / 1 1/32 "
Weight without battery pack
2.3 kg / 5.1 lbs
Weight with battery pack
2.7 kg / 6 lbs

Vibration

Sawing wood
12 m/s²
Uncertainty of measurement K
1.8 m/s²
Sawing metal
12 m/s²
Uncertainty of measurement K
2.3 m/s²

Noise Emission

Sound pressure level
90 dB(A)
Sound power level (LwA)
101 dB(A)
Uncertainty of measurement K
3 dB(A)
