Metabo 18V Brushless Metal Bevelling Tool KFMVB 18 LTX 4 RF (Tool Only) - 601769840
Available

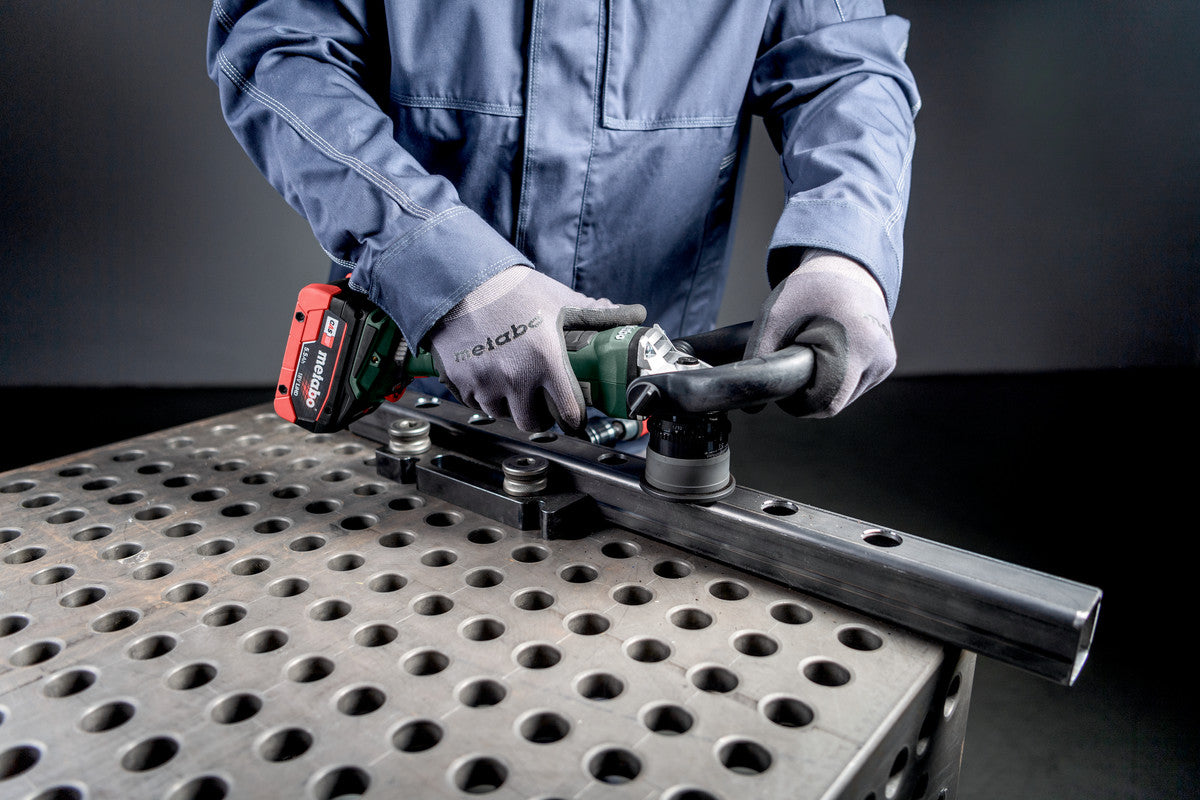

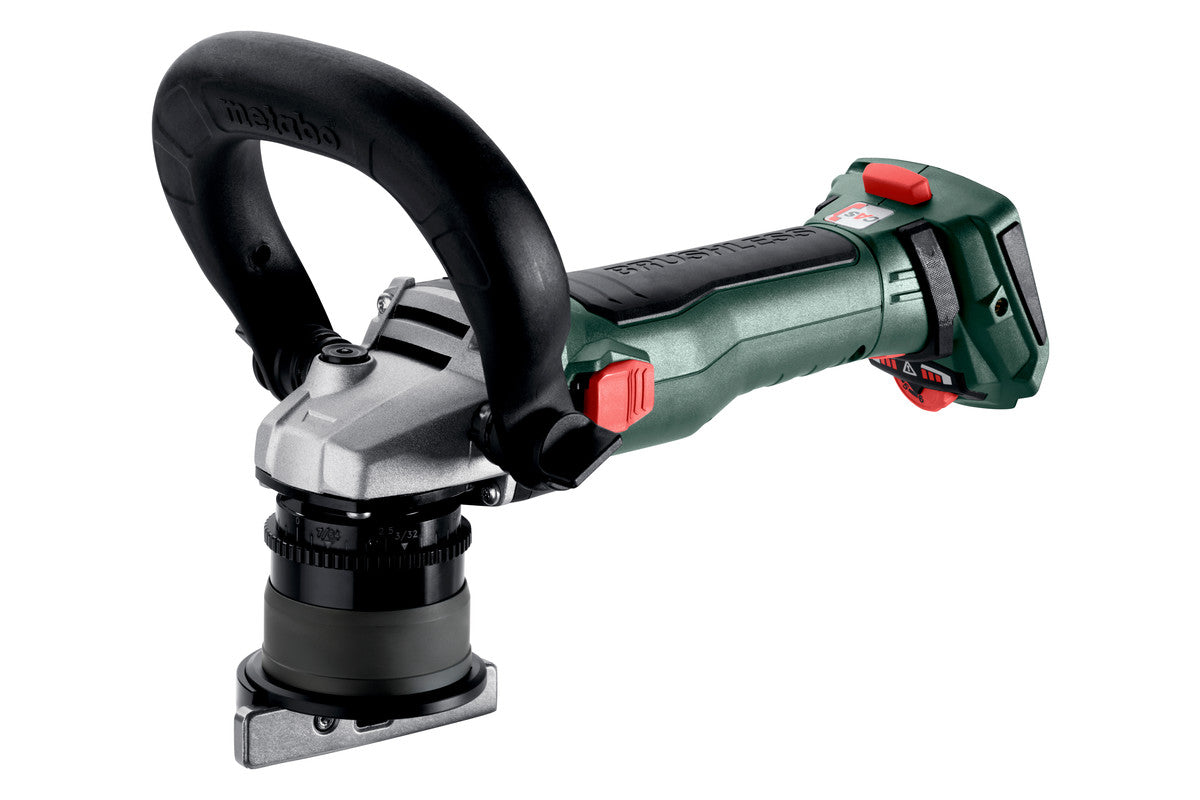

The Metabo KFMVB 18 LTX 4 RF (601769840) is an 18V cordless bevelling tool for metal with a brushless motor, for easy, quick preparation of edges before coating.
It creates 45° chamfers up to 4mm and radii of 2 and 3mm on interior and exterior edges, and rounds off the edges of drill holes. It is supplied without battery pack and charger.
Where this product is used
- Creating 45° chamfers up to 4mm on interior and exterior edges
- Creating radii of 2 and 3mm (R2 and R3) on edges
- Rounding off the edges of drill holes
- Deburring sheets of 0.7mm and larger with the thrust ring
- Preparing surfaces for powder or paint coating, free from oxide and burrs
Features
- Patented one-touch controller: tool-free setting of the cutting depth in 0.1mm steps, with stop points and protection against unintentional adjustment
- Slim milling head and ball bearing stationary seal ring for working in pipes and on curves

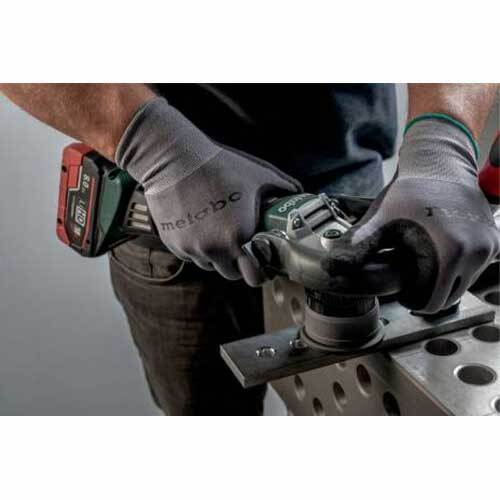

- Guide stop for a uniform finish when processing straight sheets
- Variable speed setting with thumbwheel, with speeds that stay constant under load
- Fast brake for quick stopping of the tool
- Battery pack can be rotated in 90° steps for ergonomics in any working position
- Electronic overload protection, soft start and restart protection
- Produces small metal chips during trim routing, with no metal dust
- This tool can be combined with all 18V battery packs and chargers of the CAS brands
Key specifications
| Specification | Detail |
|---|---|
| Brand | Metabo |
| Model | KFMVB 18 LTX 4 RF |
| Order number | 601769840 |
| Battery voltage | 18V |
| No-load speed | 4000 - 8600rpm |
| Type of edges | Chamfer and radius |
| Maximum chamfer width at 45° | 6mm (1/4") |
| Maximum chamfer height at 45° | 4mm (5/32") |
| Possible radii | R2 / R3 |
| Cutting depth setting grading | 0.1mm (0.0039") |
| Smallest internal diameter of curves | 13mm (0.51") |
| Weight without battery pack | 2.3kg |
| Weight with battery pack | 2.7kg |
| Vibration | 8.1 m/s² (K 2.5 m/s²) |
| Sound pressure level | 81 dB(A) (K 3 dB(A)) |
| Sound power level (LwA) | 89 dB(A) (K 3 dB(A)) |
Supplied with

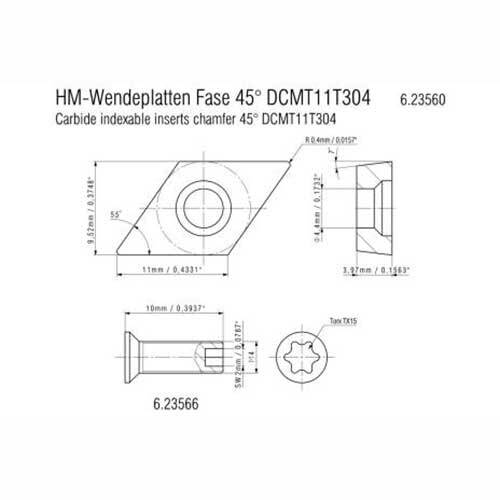

- 2 carbide indexable inserts, 45° chamfer

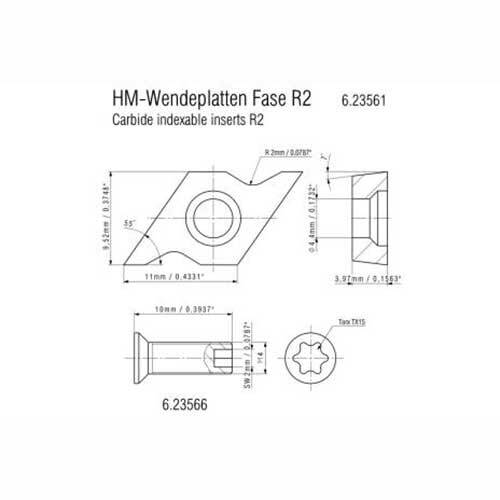

- 2 carbide indexable inserts, radius R2

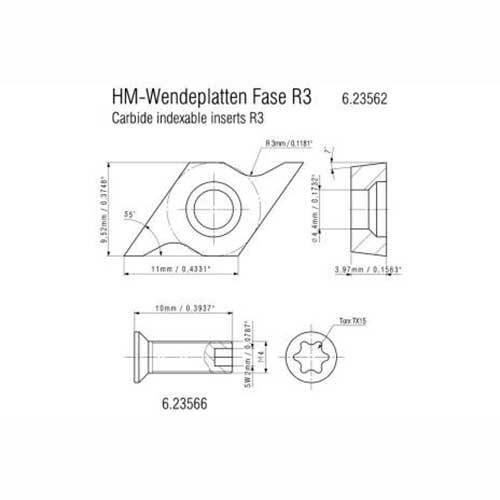

- 2 carbide indexable inserts, radius R3
- Thrust ring
- Guide stop
- Screwdriver for Torx screws 15
- Bow-type handle
- Dust protection filter
- MetaBOX 215
- Without battery pack, without charger
