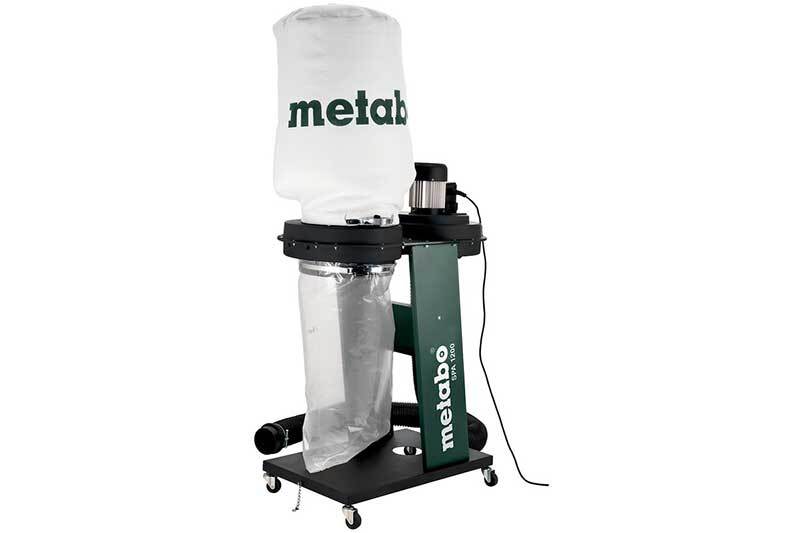

Metabo 550W Chip Extractor - SPA 1200 (601205000)

Metabo Chip & Dust Extraction Unit SPA 1200 (601205000)

• Raw air extraction device for (semi) stationary wood processing machines.
• Significantly reduces dust content.
• The filter material of dust class L.
• Integrated grounding as protection from electrostatic charge.
• Quick change of the application location by means of the wheeled unit and simple connection.
• Stable stand with supported chip collection bag.
• A comprehensive range of accessories: automatic switch-on devices, filter cartridges, hoses, and adapters.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Suction hose 100 x 2500mm
• Filter bag made of needle felt
• Chip Collection Bag

Technical Data

• Maximum vacuum: 1600Pa / 0.2psi
• Hose connection Ø: 100mm / 4"
• Chip bag capacity: 65l / 17gal
• Rated input power: 0.55kW

Characteristics

Dimensions
830 x 450 x 1600mm // 2.8 x 1.5 x 5.3ft
Maximum vacuum
1600 Pa / 0.2 psi
Maximum volume flow
900 m³/h / 237755 gal/h
Filter surface
1 m² / 1550 sq.inch
Hose connection Ø
100 mm / 4 "
Chip bag capacity
65 l / 17 gal
Mains voltage
220 - 240 V
Rated input power
0.55 kW
Weight
22 kg / 48.5 lbs
Cable length
3 m

Noise Emission

Sound pressure level
85 dB(A)
Sound power level (LwA)
98 dB(A)
Uncertainty of measurement K
3 dB(A)
