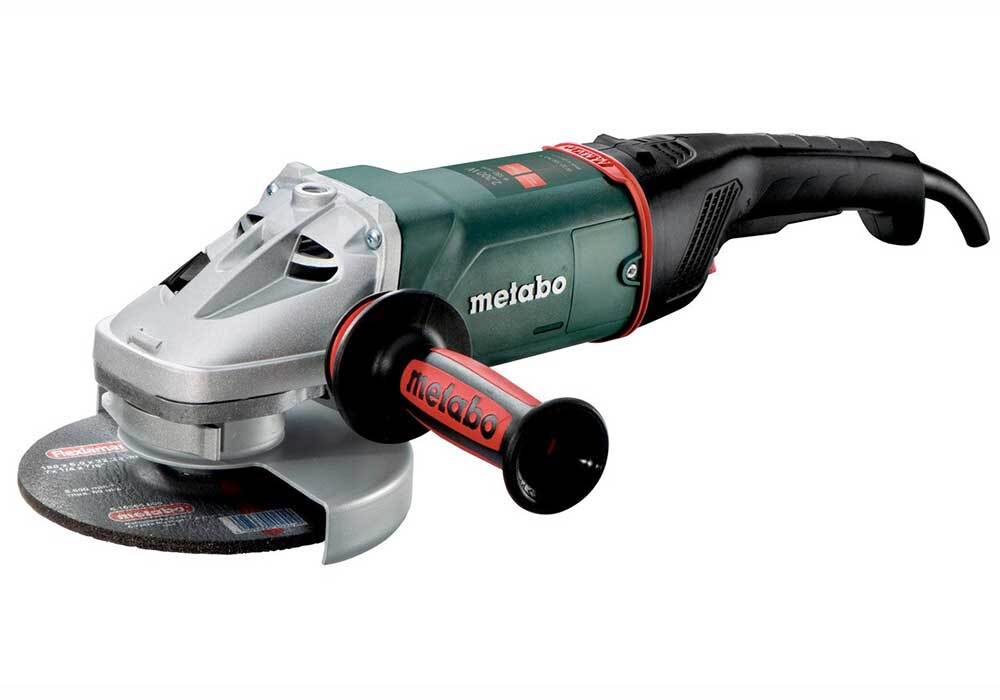

Metabo W 22-180 Mvt (606461190) Angle Grinder

• Metabo Marathon motor with patented dust protection for long service life.
• Deadman's switch for high user protection.
• Rotating back handle and side handle can be mounted at 3 positions for optimum handle position also when cutting.
• Tool-free adjustable guard; twist-proof.
• Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user’s health.
• Metabo safety switch prevents unintentional start.
• Auto-stop carbon brushes to protect the motor.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Guard
• Inner support flange
• Nut with two holes
• Metabo VibraTech (MVT) side handle
• Flat-pin spanner

Technical Data

• Disc-Ø: 180 mm // 7 "
• Rated input power: 2200W
• No-load speed: 8500 rpm
• Torque: 11 Nm / 97 in-lbs

Characteristics

Disc-Ø
180 mm // 7 "
Rated input power
2200 W
Output power
1500 W
No-load speed
8500 rpm
Revolutions at rated load
5800 rpm
Torque
11 Nm / 97 in-lbs
Spindle thread
M 14
Handle circumference
144 mm / 5.669 "
Weight (without power cable)
5.7 kg / 12.6 lbs
Cable length
4 m / 13 ft

Vibration

Surface grinding
6.1 m/s²
Uncertainty of measurement K
1.5 m/s²
Grinding with sandpaper
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
94 dB(A)
Sound power level (LwA)
105 dB(A)
Uncertainty of measurement K
3 dB(A)
