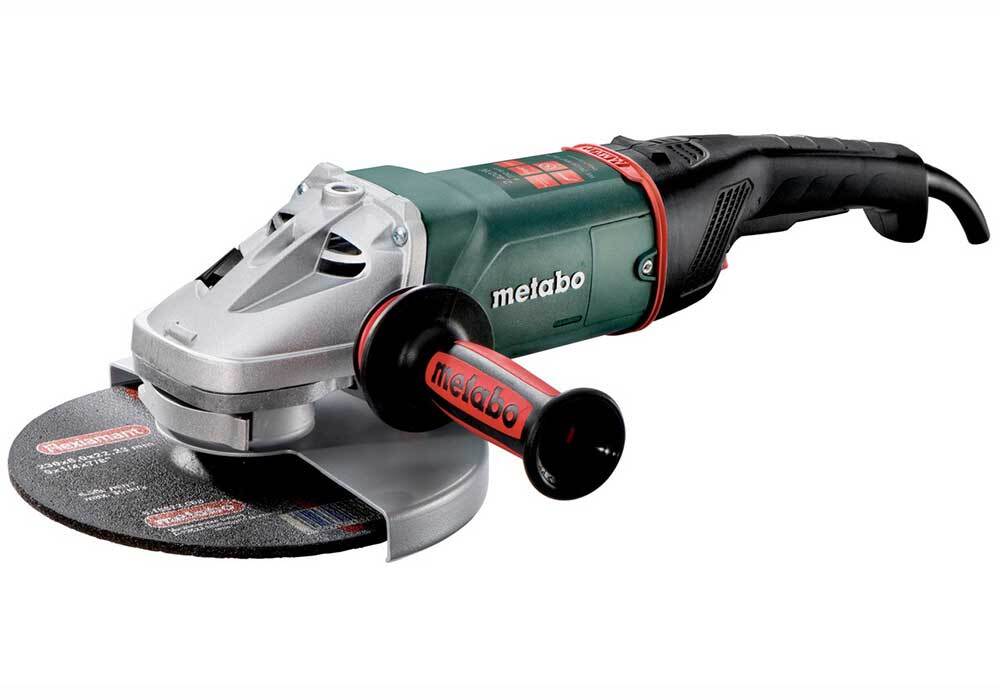

Metabo WE 24-230 MVT QUICK (606470190) Angle Grinder

• Metabo Marathon motor with patented dust protection for long service life.
• Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety.
• Deadman's switch for high user protection.
• Rotating back handle and side handle can be mounted at 3 positions for optimum handle position also when cutting.
• Metabo Quick for tool-free disc change by means of a quick-locking nut.
• Tool-free adjustable guard; twist-proof.
• Starting current limitation prevents the actuation of the lock on start-up.
• Electronic overload protection and restart protection.
• Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user’s health.
• Metabo safety switch prevents unintentional start.
• Auto-stop carbon brushes to protect the motor.
• LED signal indicates triggered restart protection or overheating.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Guard
• Inner support flange
• Quick-locking nut
• Metabo VibraTech (MVT) side handle

Technical Data

• Disc-Ø: 230 mm // 9 "
• Rated input power: 2400W
• No-load speed: 6600 rpm
• Torque: 17 Nm / 150 in-lbs

Characteristics

Disc-Ø
230 mm // 9 "
Rated input power
2400 W
Output power
1600 W
No-load speed
6600 rpm
Revolutions at rated load
4600 rpm
Torque
17 Nm / 150 in-lbs
Spindle thread
M 14
Handle circumference
144 mm / 5.669 "
Weight (without power cable)
5.8 kg / 12.8 lbs
Cable length
4 m / 13 ft

Vibration

Surface grinding
6.2 m/s²
Uncertainty of measurement K
1.5 m/s²
Grinding with sandpaper
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
94 dB(A)
Sound power level (LwA)
105 dB(A)
Uncertainty of measurement K
3 dB(A)
