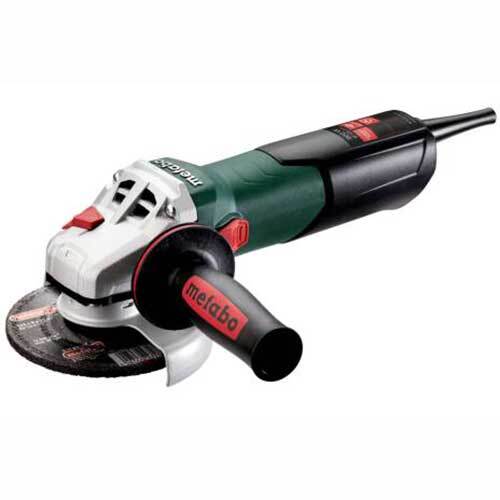

Metabo W 9-125 Quick Angle Grinder

• Low fatigue as never before: compact angle grinder with the smallest handle circumference in its class for perfect ergonomics.
• Longer service life, more power: the Metabo Marathon motor with patented dust protection, up to 20% more overload capacity and 50% more torque.
• Tool-free, fast disc change at the touch of a button with the Metabo M-Quick-System.
• Tool-free adjustable guard; twist-proof.
• Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress.
• Restart protection after power interruption.
• Gear housing can be unscrewed, rotated in 90° steps, and remounted for left-handed operation or cutting.
• Auto-stop carbon brushes to protect the motor.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Guard
• Inner support flange
• M-Quick flange nut
• Side handle

Technical Data

• Disc-Ø: 125 mm // 5"
• Rated input power: 900W
• No-load speed: 10500 rpm
• Torque: 2.5 Nm / 22 in-lbs

Characteristics

Disc-Ø
125 mm // 5"
Rated input power
900 W
Output power
550 W
No-load speed
10500 rpm
Revolutions at rated load
7500 rpm
Torque
2.5 Nm / 22 in-lbs
Spindle thread
M 14
Handle circumference
193 mm / 7.5594 "
Weight (without power cable)
2.1 kg / 4.6 lbs
Cable length
4 m / 13 ft

Vibration

Surface grinding
6 m/s²
Uncertainty of measurement K
1.5 m/s²
Grinding with sandpaper
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
93 dB(A)
Sound power level (LwA)
104 dB(A)
Uncertainty of measurement K
3 dB(A)
