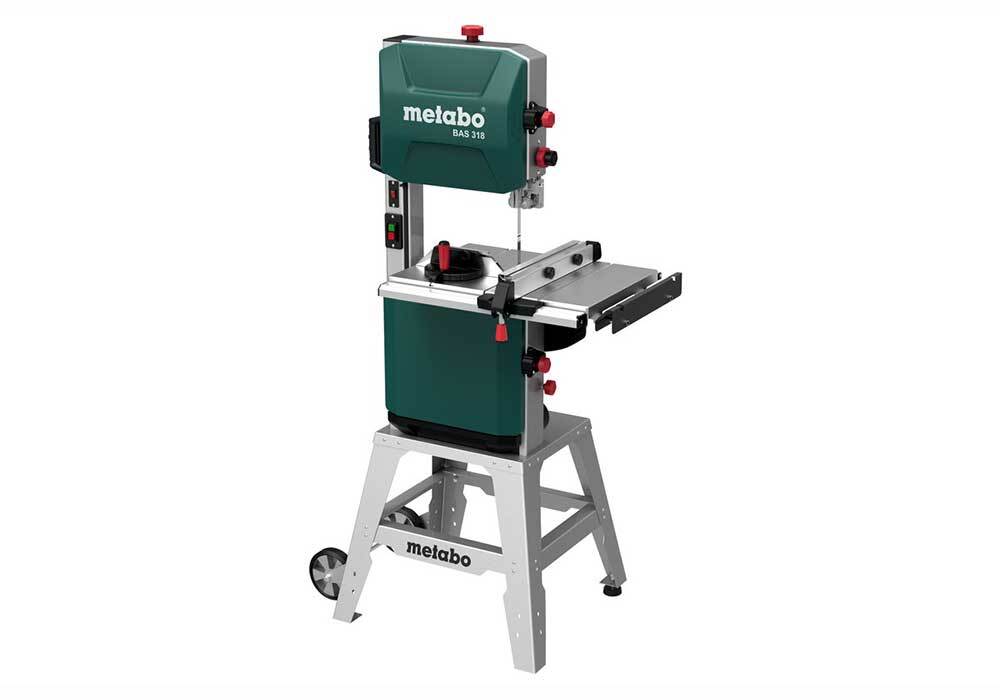

Metabo Band Saw - BAS 318 PRECISION WNB (619009190)

• High precision and stability for the highest cutting quality.
• Quiet belt path thanks to balanced flywheels with rubber coating.
• Top and bottom HSS precision three-roller guide of the band saw blade for accurate cutting results, adjustable without tools.
• Two cutting speeds for various applications and materials.
• Precise rip fence with double clamping and quick fastening.
• Quiet induction motor, maintenance-free and robust.
• Restart protection: prevents unintentional start-up after a power supply interruption.
• Easy inclination adjustment of the grey cast iron saw table for precise incline cuts thanks to the toothed ring guide.
• Quick-action clamping lever and door opening without tools for easy saw blade change.
• Blade clamp indicator with scale for easy control of the blade tension.
• Tool-less height adjustment of the saw blade guard.
• LED work light for illumination of the cutting line.
• External extraction is possible for low-dust working.
• Drawer for simple disposal of collected sawdust.
• Extendable table width extension for processing large workpieces.
• Stand with wheels for a comfortable change of position.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Universal band saw blade A6
• Mitre Fence
• Suction adapter (for Ø 44, 58, 100 mm)
• Dust collection container
• Push stick
• Stand
• Rip fence

Technical Data

• Cutting height: 170mm / 6 1/2"
• Passage width: 307mm / 12 3/32"
• Rated input power: 900 W

Characteristics

Dimensions
665 x 980 x 1600 mm // 26 3/16 x 38 19/32 x 63 "
Support surface
560 x 400 mm // 22 1/16 x 15 3/4 "
Working height with stand
1000 mm / 40 "
Sawing bench swivel range
0 - 45 °
Cutting height
170 mm / 6 1/2 "
Passage width
307 mm / 12 3/32 "
Cutting speed
410 / 880 m/min
Saw belt length
2240 mm / 88 3/16 "
Mains voltage
220 - 240 V
Rated input power
900 W
Output power
660 W
Weight
79 kg / 174.2 lbs
