***Drill bit not included. Image is for illustration purposes only.***

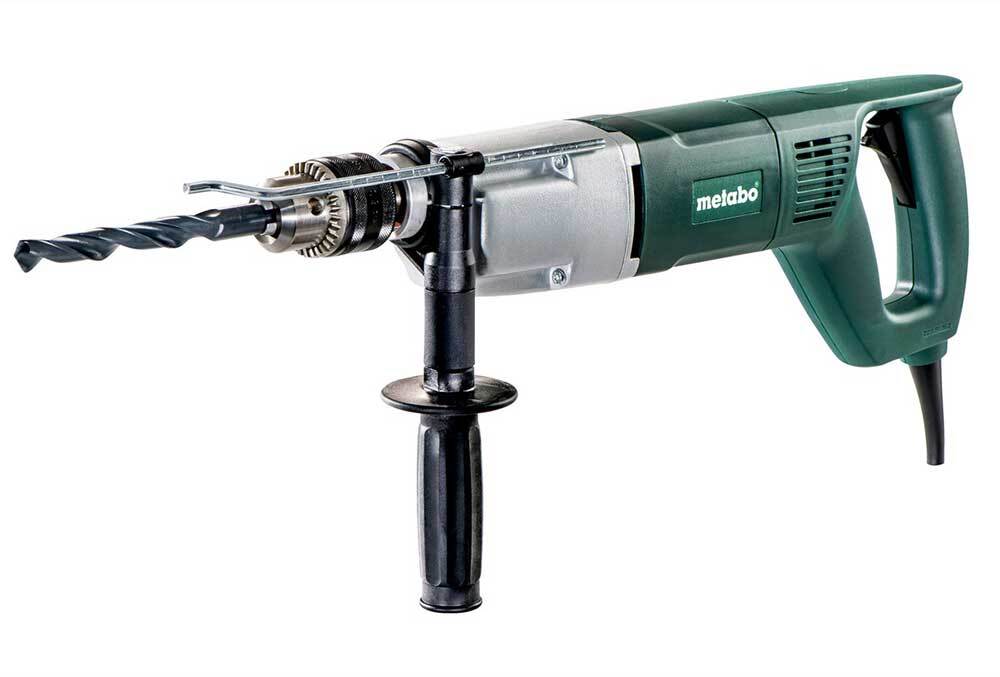

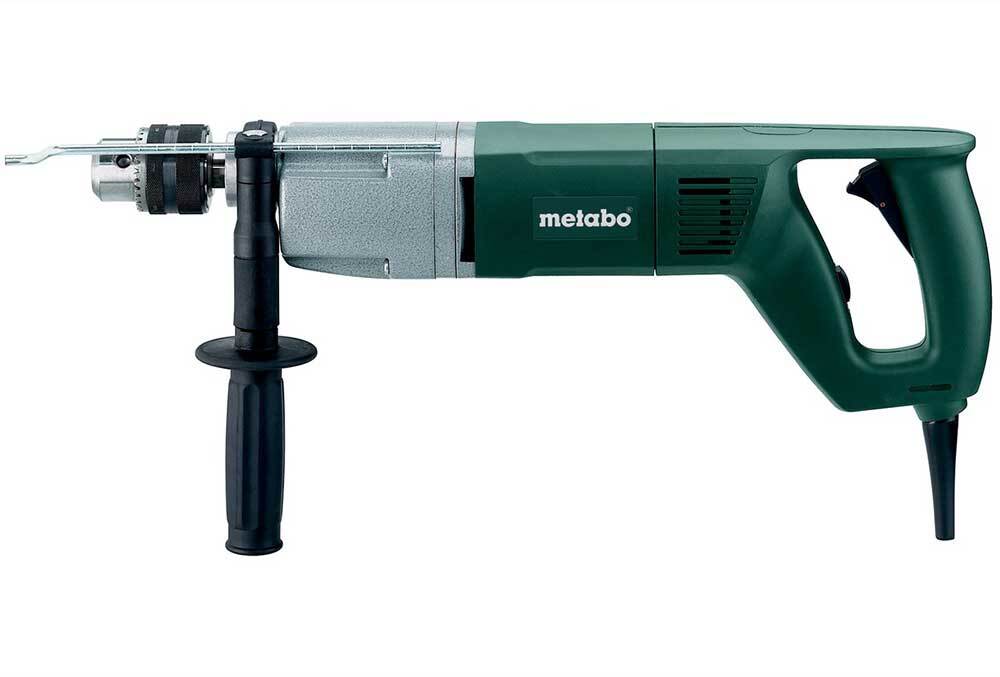

Metabo BDE 1100 2 Speed Drill D-Handle

• Robust die cast aluminium gear housing for optimum heat dissipation and durability
• Vario (V)-Electronics for working at customised speeds to suit various application materials
• Two-speed gearbox
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
• Forward and reverse rotation
• Suitable for powerful drilling of larger diameters and for stirring thick, liquid-like materials
• Comfortable operation and safety through auxiliary handle

Includes

• Geared chuck
• Chuck key
• Long side handle
• Drilling depth guide

Technical Data

• Rated input power: 1100 W
• Drill Ø steel: 16 / 10 mm // 5/8 / 3/8 "
• Drill-Ø soft wood: 40 / 25 mm // 1 5/8 / 1 "
• No-load speed: 0 - 640 / 0 - 1200 rpm
• Maximum torque: 55 / 22 Nm // 487 / 195 in-lbs

Characteristics

Rated input power
1100 W
Output power
620 W
Drill Ø steel
16 / 10 mm // 5/8 / 3/8 "
Drill-Ø soft wood
40 / 25 mm // 1 5/8 / 1 "
No-load speed
0 - 640 / 0 - 1200 rpm
Revolutions at rated load
430 / 800 rpm
Gears
2
Maximum torque
55 / 22 Nm // 487 / 195 in-lbs
Collar diameter
43 mm / 1 11/16 "
Chuck capacity
3 - 16 mm // 1/8 - 5/8 "
Drill spindle thread
5/8 " - 16 UN
Weight (without power cable)
4.3 kg / 9.5 lbs
Cable length
3 m / 10 ft

Vibration

Drilling in metal
4 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
85 dB(A)
Sound power level (LwA)
96 dB(A)
Uncertainty of measurement K
3 dB(A)
