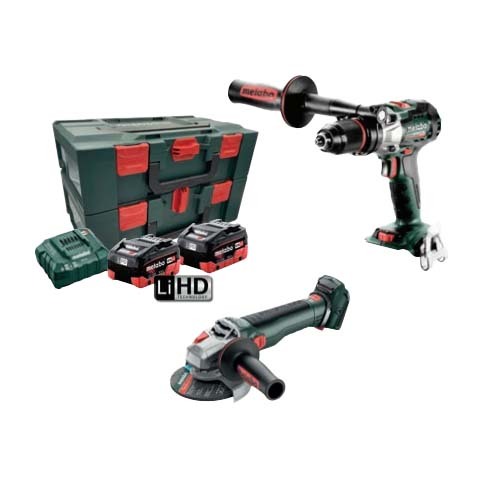

Metabo 18V Brushless Cordless Hammer Drill & Angle Grinder Kit

Kit Includes

• 1 x 130 Nm Hammer Drill SB 18 LTX BL I
• 1 x 125 mm Cordless Angle Grinder WPB 18 LT BL 11-125 Quick
• 2 x LiHD Battery Packs
• 1 x Air-Cooled Charger ASC 55
• 2 x metaBOX Cases

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the contents and product description.
• Accessories are included only if listed in the contents.

Features

130 Nm Cordless Hammer Drill SB 18 LTX BL I

• Brushless hammer drill with maximum power for demanding applications
• Hammer drill function for drilling in masonry
• Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
• Precision Stop: electronic torque control with increased precision for precise, delicate working
• Electronic safety shutdown: no kickback if the drill bit stops unexpectedly - for high user safety
• Integrated LED work light with night light function for optimal brightness in the work area
• With handy belt hook and bit case which can be fixed either on the right or left side

Contents

• Keyless chuck
• Side handle
• Belt hook and bit case

Technical Data

• Characteristics Type of battery pack: Li-Power Battery voltage: 18 V Maximum torque - soft:65 Nm / 575 ft. lbs Maximum torque, hard130 Nm / 1151 ft. lbs Drill-Ø masonry:16 mm / 5/8 " Drill Ø steel:13 mm / 1/2 " Drill-Ø soft wood:68 mm / 2.68 " No-load speed:0 - 550 / 0 - 2000 rpm Maximum impact rate: 38000 bpm Chuck capacity: 1.5 - 13 mm // 1/16 - 1/2 "
• Vibration Drilling in metal: 2.6 m/s² Impact drilling concrete: 16.5 m/s²
• Noise Emission Sound pressure level: 92 dB(A) Sound power level (LwA): 103 dB(A) Uncertainty of measurement K: 3 dB(A)

125 mm Cordless Angle Grinder WPB 18 LT BL 11-125 Quick

• Brushless cordless angle grinder of the new generation: as powerful as a 1,100 Watt mains-powered tool thanks to 40% more power
• Service-free Brushless motor with highest efficiency and maximum handiness
• Paddle switch with dead man function: safe to operate due to an ergonomically integrated switch
• Fast brake system for highest user safety: Disc stops within 1 second after switching off
• M-Quick System for tool-free disc change at the touch of a button
• Tool-free adjustable guard; twist-proof
• Battery pack can be rotated in 90°steps for best ergonomics in any working position
• Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety
• Restart protection: prevents unintentional start-up after battery pack change
• Detachable dust protection filter protects motor from coarse particles

Contents

• Guard
• Side handle
• Dust protection filter
• without battery pack, without charger
• Inner support flange
• M-Quick flange nut

Technical Data

• Characteristics Battery voltage: 18 V Disc-Ø: 125 mm / 5 " Max. cutting depth: 27 mm / 1 1/16 " No-load speed: 10000 rpm. Spindle thread: M 14 Handle circumference: 160 mm / 6.299 " Weight without battery pack: 1.8 kg Weight with battery pack: 2.5 kg
• Vibration Surface grinding: 8 m/s² Grinding with sandpaper: 2.5 m/s² Uncertainty of measurement K: 1.5 m/s²
• Noise Emission Sound pressure level: 81 dB(A) Sound power level (LwA): 92 dB(A) Uncertainty of measurement K: 3 dB(A)

LiHD Battery PacksLiHD battery pack for ultimate performance and extremely long runtime with minimal temperature generation.Intelligent battery management for long-lasting battery packs with a 3 year warranty. Patented “AIR COOLED“ charging technology. Permanent Electronic Single Cell Protection (ESCP) when charging, for particularly long life. Processor-controlled charge and discharge management.Capacity display with almost no self-discharge.

Air-Cooled Charger ASC 55,12-36 V Patented AIR COOLED technology for speedy charging and long service life.

MetaBOXIntelligent transport and storage system for mobile working, Extremely robust and break-proof due to the material and design for maximum resilience
