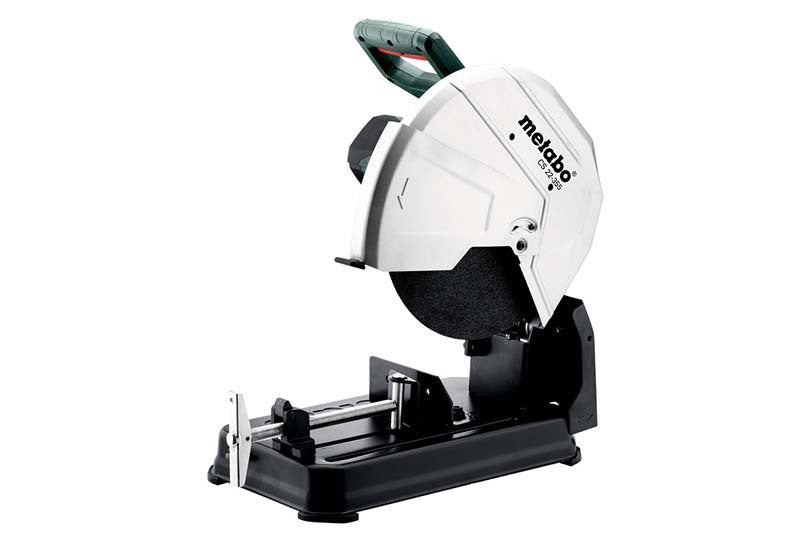

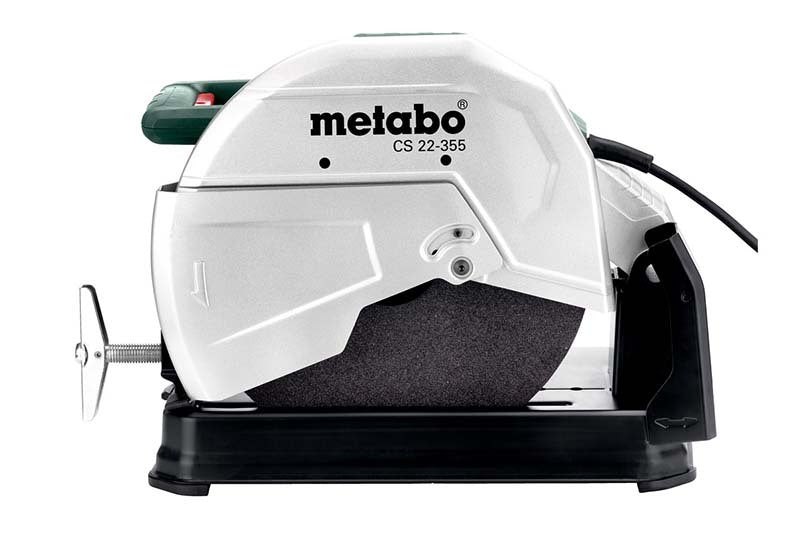

Metabo CS 22-355 Metal Chop Saw - 601786190

Metabo Metal Chop Saw - 601786190

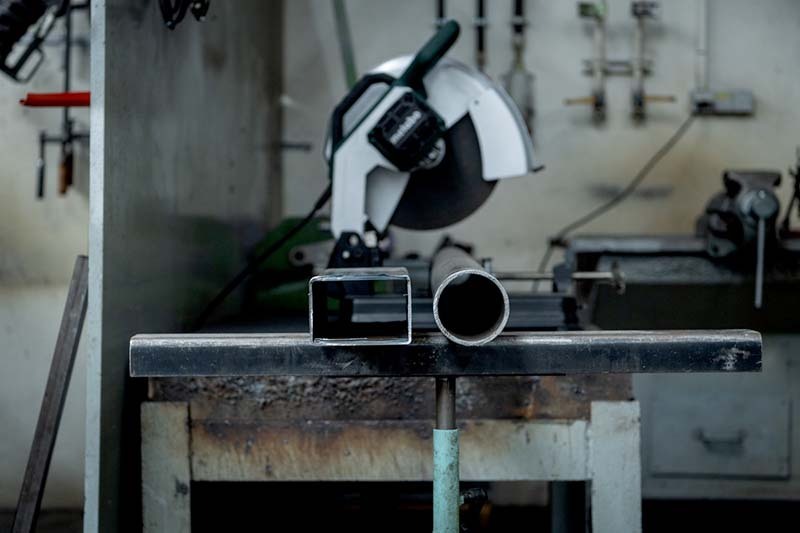

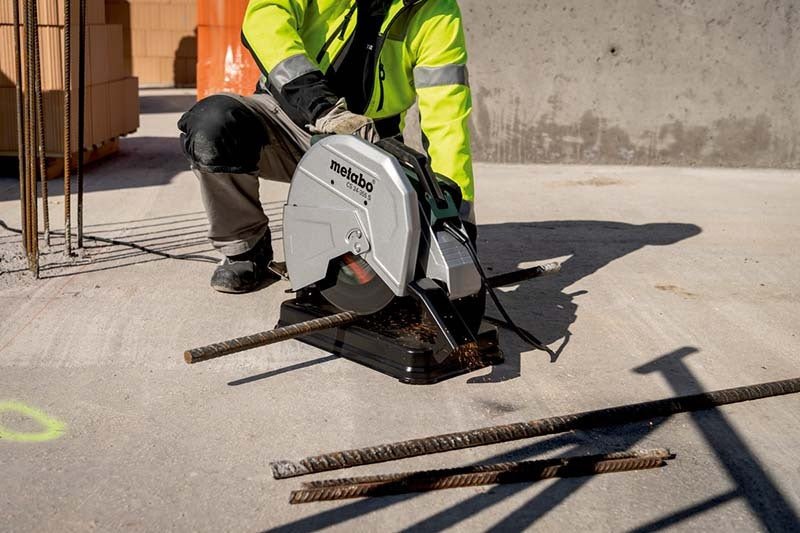

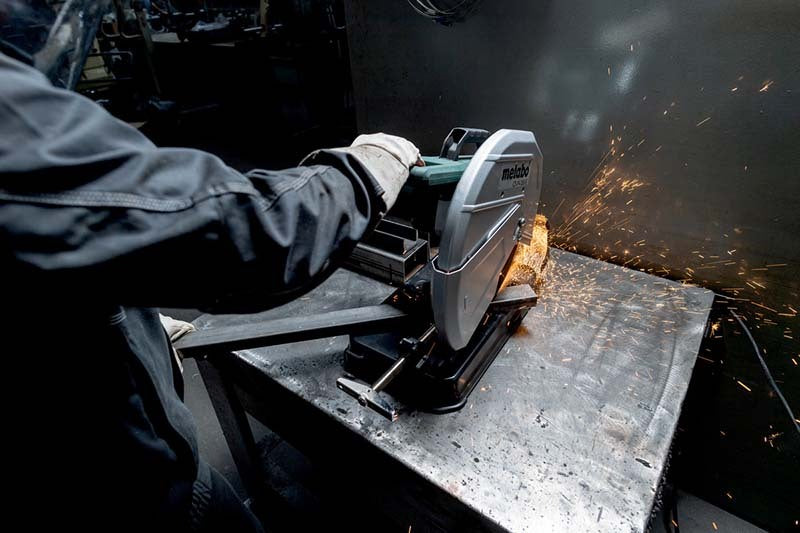

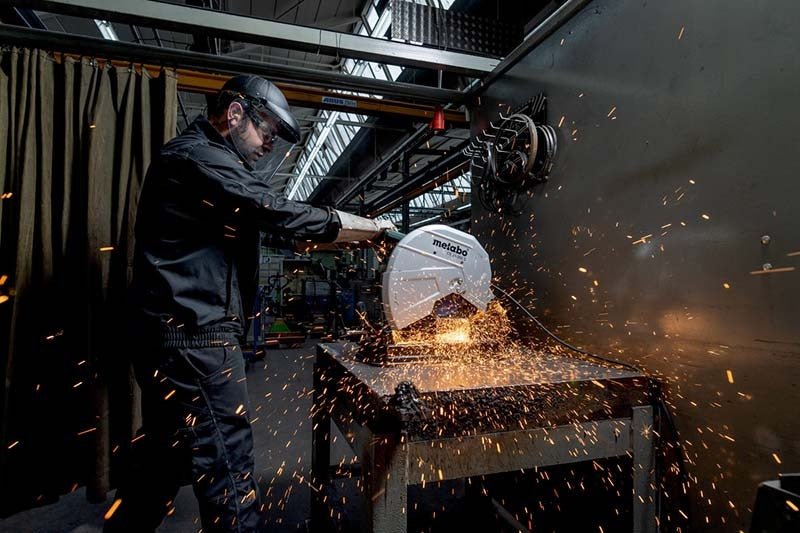

• Powerful metal chop saw for cutting of profiles, pipes and rods made of steel, NF metals, iron and cast profiles.
• Quick clamping device with variable mitre setting for angled cuts from -15° to 45°.
• Large handle transversal to the cutting axis for optimum power transmission while cutting.
• Adjustable cutting depth limiter for optimum use of the cutting disc.
• Easy, fast disc change with spindle lock.
• Maximum user safety: swivelling cutting guard, adjustable spark deflector sheet and rubberised base for safe cutting.
• Safety switch for protection against accidental start up.
• Robust, large machine table with practical storage for hexagonal wrenches.
• Easy to transport due to built-in handle and locking device.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Hexagonal wrench
• Cutting disc 355 mm
• Inner support flange
• Flange nut

Characteristics

Grinding wheels (Ø x bore)
355 x 25.4 mm // 13 31/32 x 1 "
No-load speed
3700 rpm
Rated input power
2300 W
Max. cutting capacity round tube
132 mm / 5 3/16 "
Max. cutting capacity square tube
120 x 120 mm // 4 23/32 x 4 23/32 "
Max. cutting capacity rectangular tube
100 x 208 mm // 3 15/16 x 8 3/16 "
Max. cutting capacity L-profile
150 x 150 mm // 5 29/32 x 5 29/32 "
Dimensions of the base plate
456 x 256 mm // 17 15/16 x 10 1/16 "
Transport height
394 mm / 15 1/2 "
Weight
16.8 kg / 37 lbs
Cable length
4 m / 13 ft
