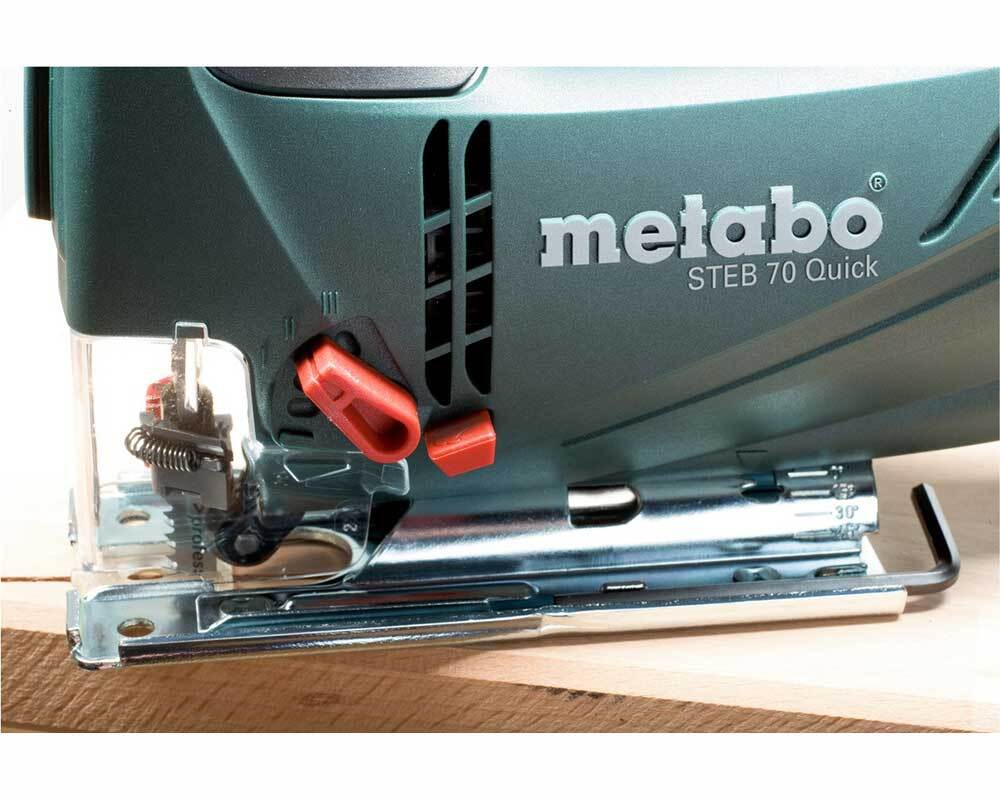

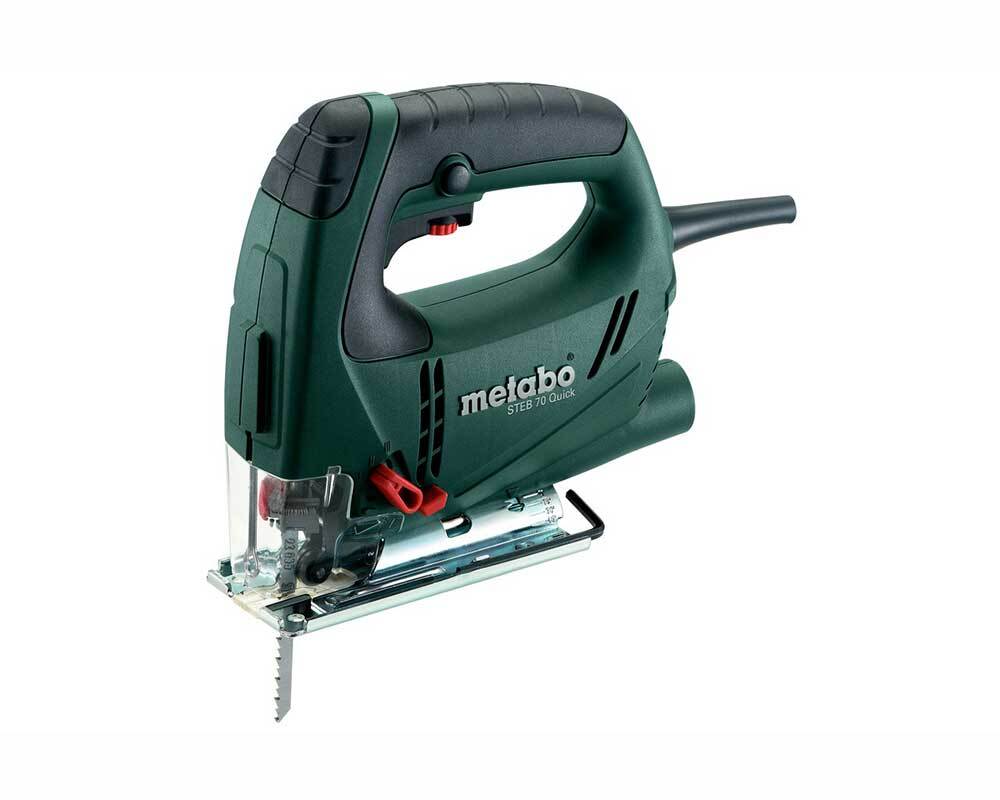

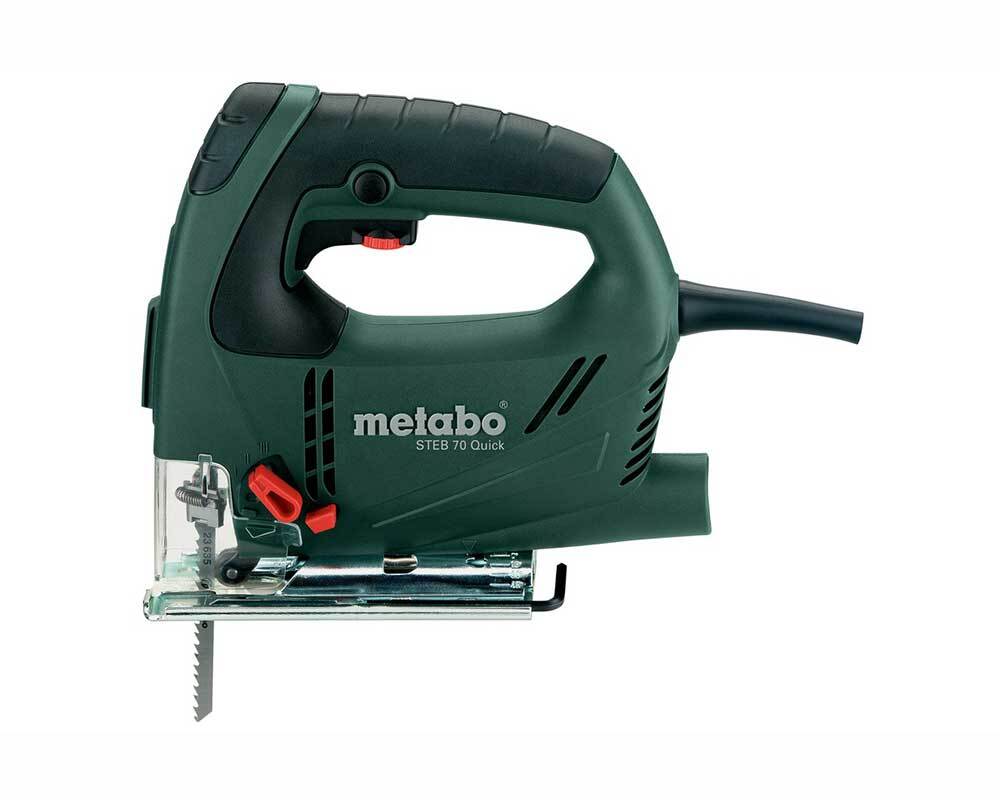

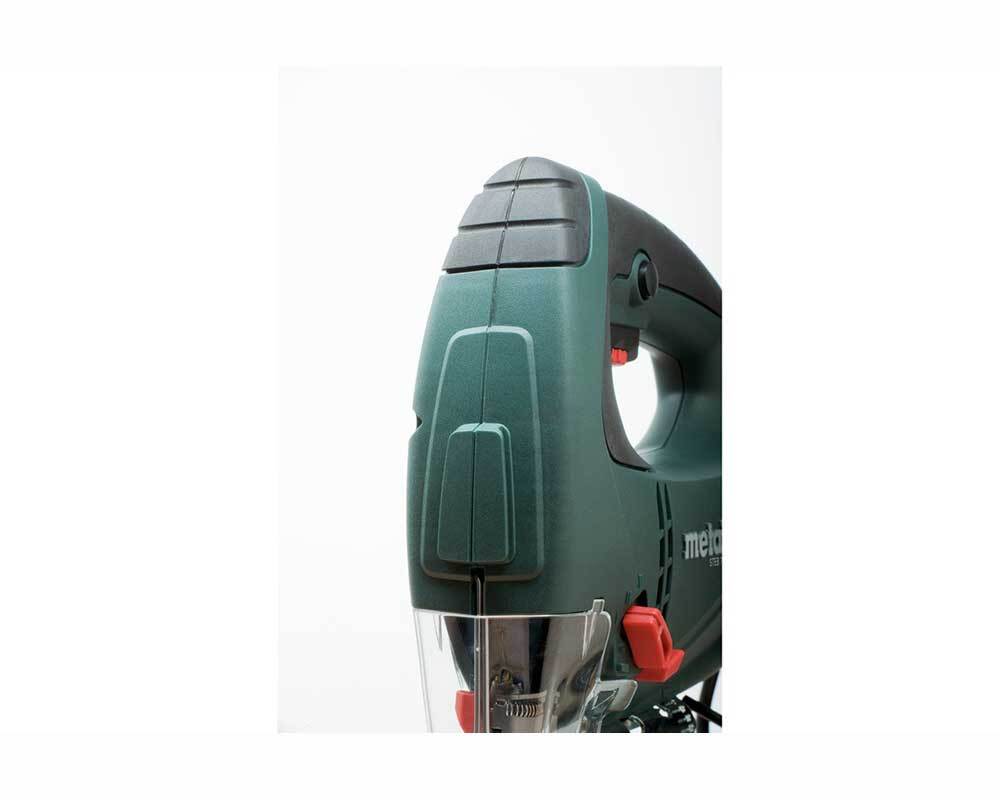

Metabo D-Handle Jigsaw

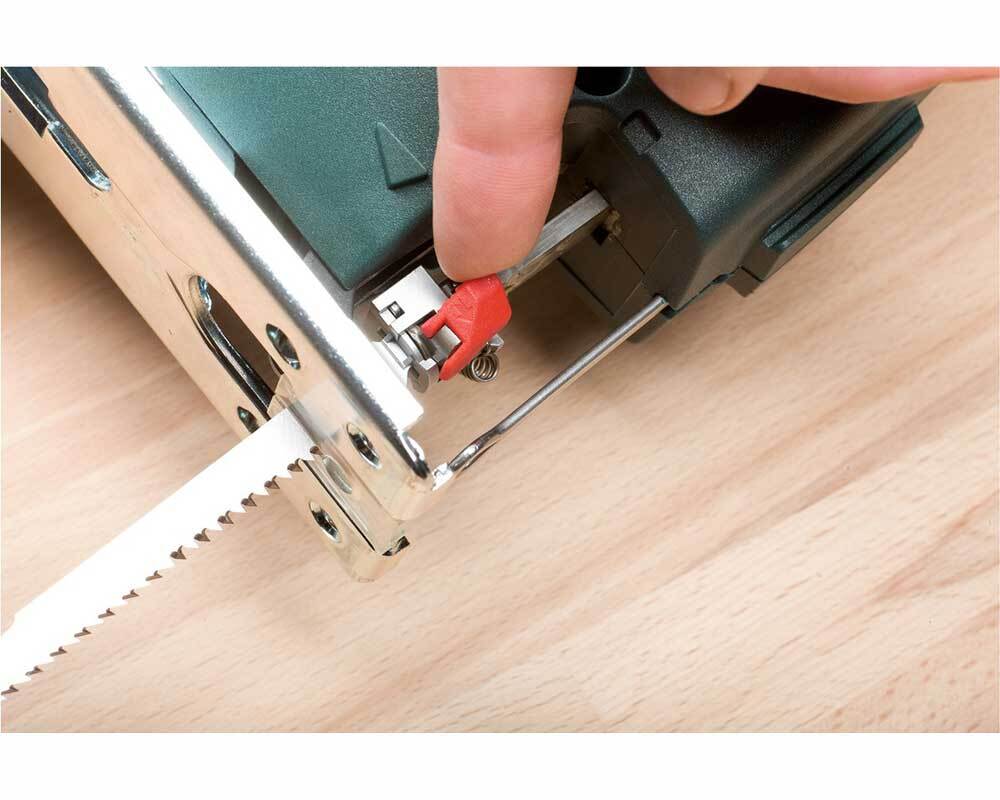

• Metabo Quick for changing saw blades without tools

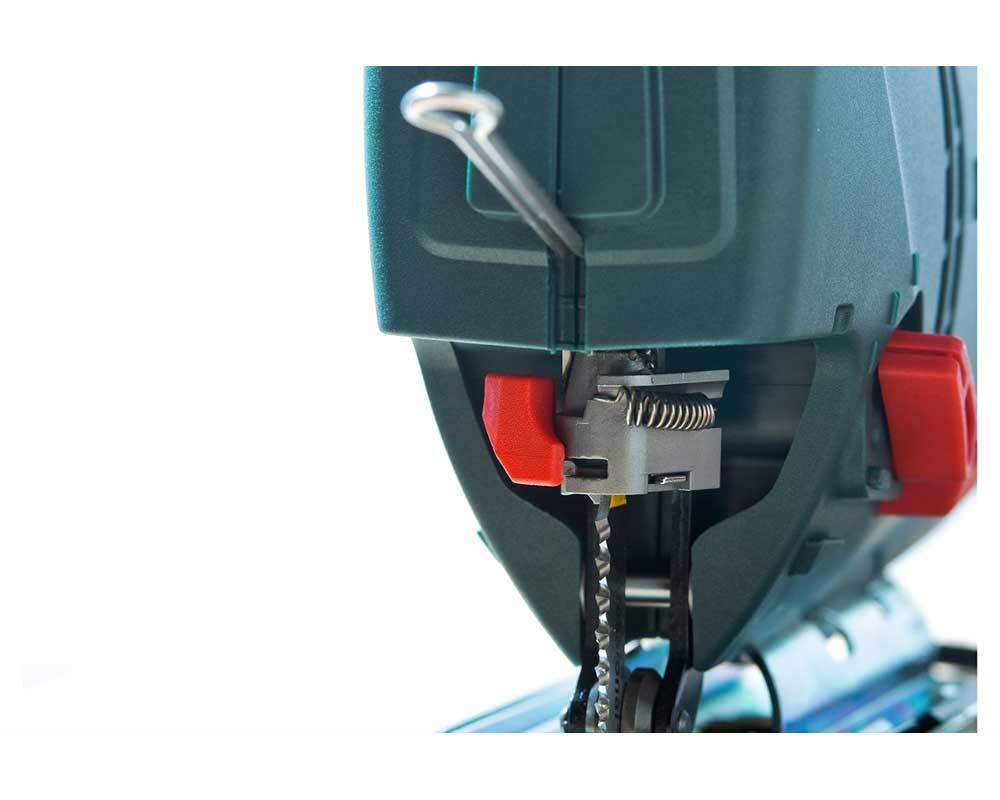

• Low-lying saw blade guidance for precise cuts

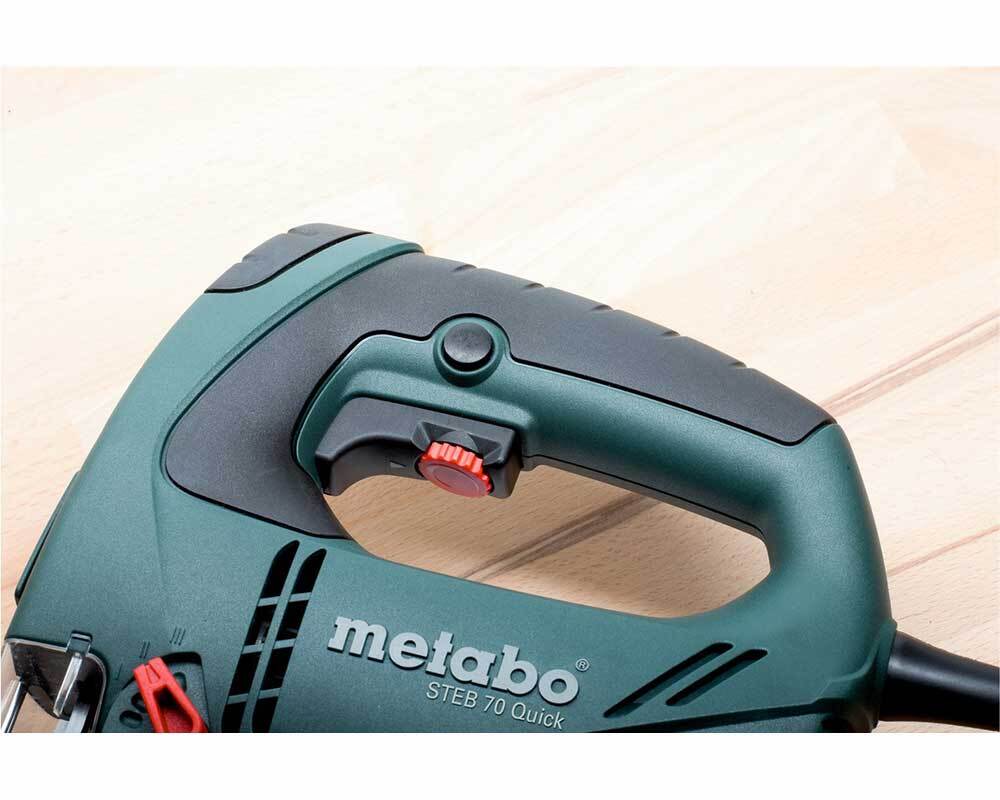

• Top handle with non-slip soft-grip surface
• Selectable chip blowing function ensures free view of cutting line
• Variospeed (V) Electronics for working with customised stroke rates for the materials used
• Extraction possibility by means of connecting an all-purpose vacuum cleaner (not included)
• Precision guide rail and guiding device available as accessory (not included)

Contents

• Extraction Nozzles
• Hexagonal wrench
• Plastic carry case
• Protective glass
• Chip Guard Plates

Characteristics

Swivel range from/to:
- 45 / + 45 °
Pendulum stroke levels
4
Strokes in idle
900 - 3300 rpm
Saw blade stroke
22 mm / 7/8 "
Weight (without power cable)
2 kg / 4.4 lbs
Cable length
2.4 m / 8 ft

Vibration

Sawing wood
12 m/s²
Uncertainty of measurement K
2 m/s²
Sawing metal
8.5 m/s²
Uncertainty of measurement K
2 m/s²

Noise Emission

Sound pressure level
89 dB(A)
Sound power level (LwA)
100 dB(A)
Uncertainty of measurement K
3 dB(A)
