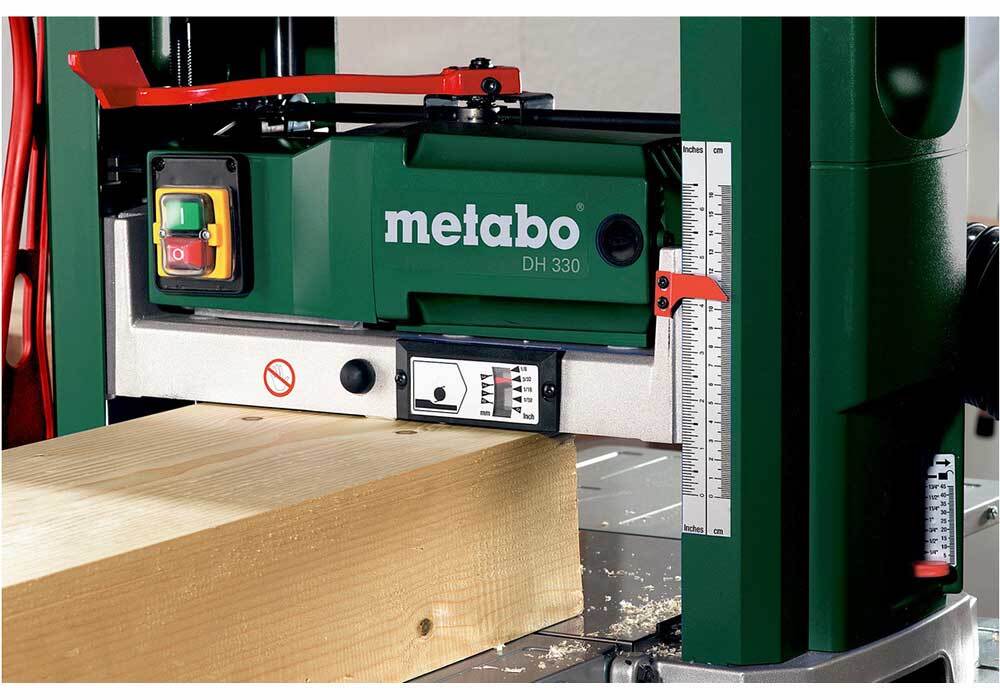

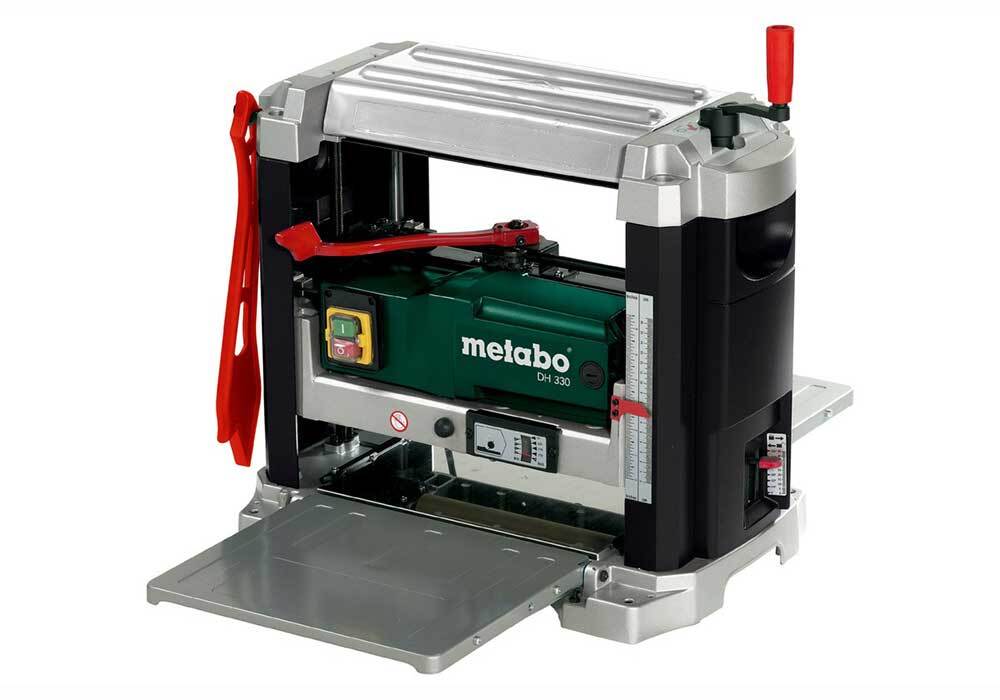

Metabo Bench Thicknesser DH 330 (0200033019)

• Ideal for mobile use due to low weight.
• Stable gear for uniform work piece feed

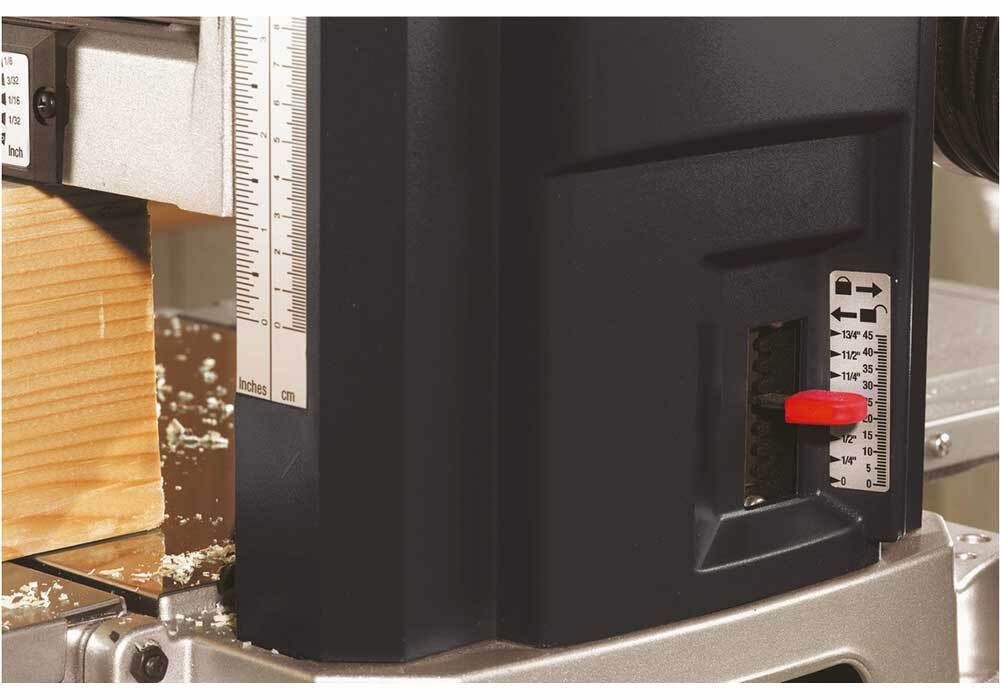

• Convenient height adjustment with crank handle.
• Easy setting of common passage heights using stop points.
• Powerful universal motor for powerful lugging drive and even planing result.
• Restart protection: prevents unintentional start-up after power supply interruption.
• Precise thickness adjustment for quick and exact planing.
• Large feed and exit tables support the conveyance of long materials.
• Planing locking mechanism prevents unintentional adjustment of the chip removal setting.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• 2 integrated HSS reversible planer blades
• Push stick
• Extraction Nozzles

Technical Data

• Chip removal bench thicknesser: 0 - 3mm // 0 - 1/8"
• Rated input power: 1800W

Characteristics

Dimensions
579 x 857 x 574 mm // 1.9 x 2.9 x 1.9 ft
Chip removal bench thicknesser
0 - 3 mm // 0 - 1/8 "
Material thickness table
Cast aluminium / special steel aluminium
Thickness table L x W
840 x 330 mm // 33 x 13 "
Passage height/width
152 / 330 mm // 6 / 13 "
Feed rate
7.51 m/min / 25 ft/min
Diameter of blade shaft
47 mm / 1 7/8 "
Number of blades
2
Revolutions of blade shaft
9800 rpm
Mains voltage
220 - 240 V
Rated input power
1800 W
Weight
35 kg / 77.2 lbs

Noise Emission

Uncertainty of measurement K
4 dB(A)
