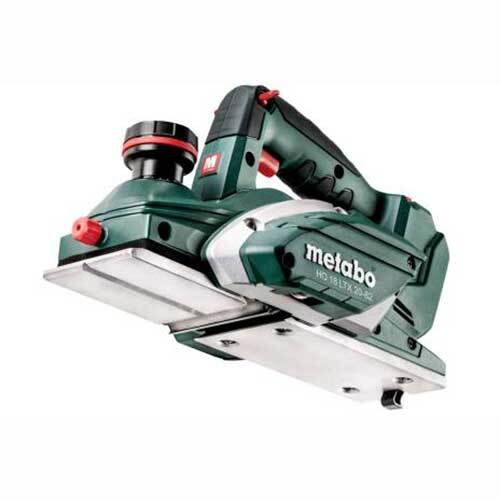

Metabo HO 18 LTX 20-82 Cordless Planer

• Light, compact cordless planer for planing, rebating and chamfering
• Adjustable planer depth and notch depth
• Aluminium die cast and milled cut planer base with V-groove for easy chamfering

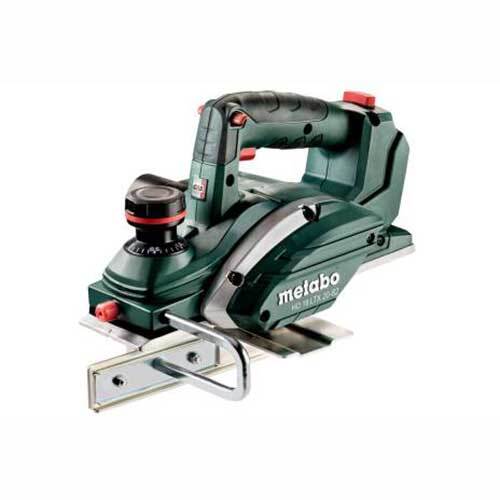

• Parallel guide for precise guiding of the planer
• Grip area with non-slip soft-grip surface
• Extraction possibility by means of connecting an all-purpose vacuum cleaner (not included)
• Angled chip ejection adapter for controlled ejection of the wood shavings
• Easy to empty textile dust bag for working without extraction facilities
• Strap on the planer base for stopping the machine and to protect the work piece
• Easy blade change of the robust reversible carbide planer blades
• Soft start and overload protection for long service life of motor and drive

Contents

• Reversible carbide planer blades
• Chip ejection adapter
• Textile dust bags
• Without battery pack, without charger
• Parallel Guide
• Depth gauge

Technical Data

• Battery voltage: 18 V
• Planing width: 82 mm
• Adjustable planing depth: 0 - 2 mm
• No-load speed: 16000 rpm

Characteristics

Type of battery pack
Li-Power
Battery voltage
18 V
Planing width
82 mm
Adjustable planing depth
0 - 2 mm
Maximum notch depth
9 mm
No-load speed
16000 rpm
Length of planer base
295 mm
Weight without battery pack
2.9 kg / 6.4 lbs
Weight with battery pack
3.3 kg / 7.3 lbs

Vibration

Planing soft wood
1.6 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
90 dB(A)
Sound power level (LwA)
101 dB(A)
Uncertainty of measurement K
3 dB(A)
