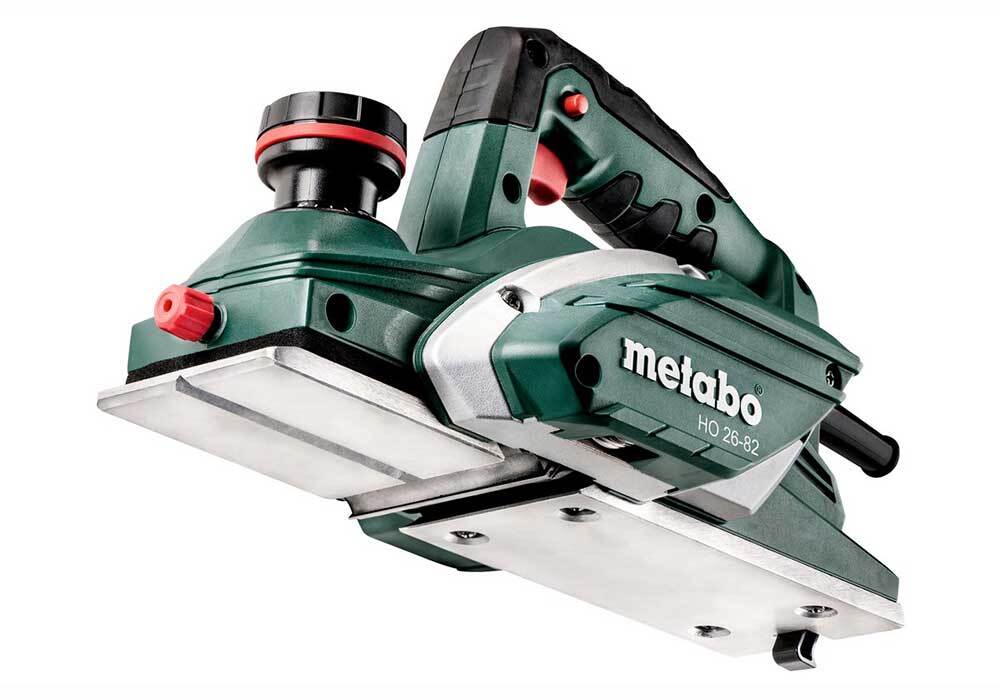

Metabo Planer HO 26-82 (602682000)

• Light, compact universal planer for planing, rebating and chamfering.
• Adjustable planer depth and notch depth
• Aluminium die cast and milled cut planer base with V-groove for easy chamfering.

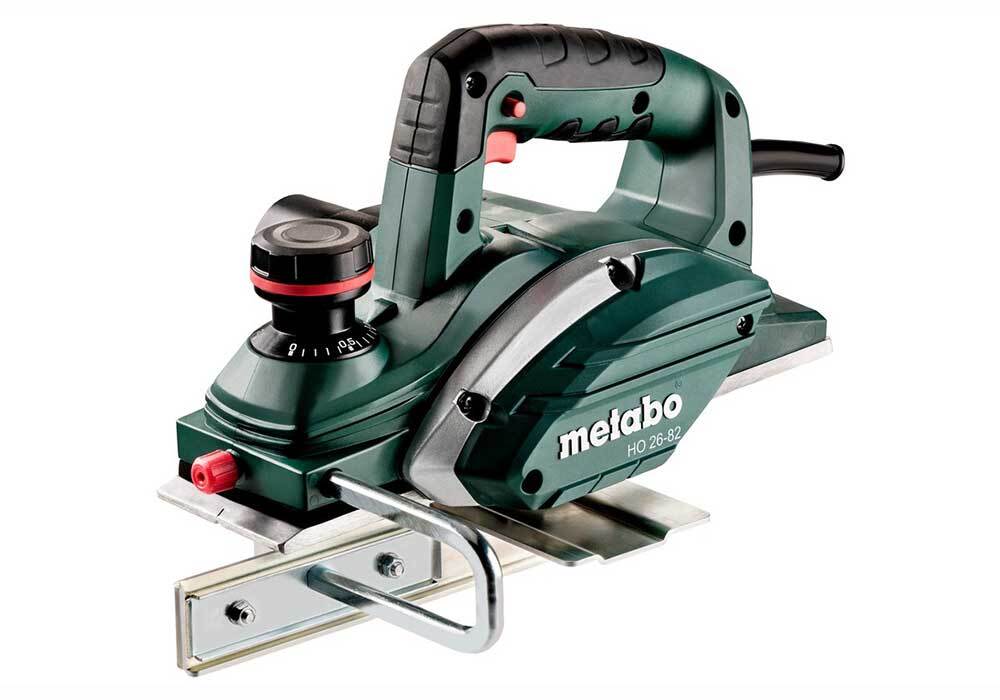

• Parallel guide for precise guiding of the planer.
• Grip area with non-slip soft-grip surface.
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Angled chip ejection adapter for controlled ejection of the wood shavings.
• Easy to empty textile dust bag for working without extraction facilities.
• Strap on the planer base for stopping the machine and to protect the work piece.
• Easy blade change of the robust reversible carbide planer blades.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• 1 Set of disposable planer blades
• Extraction connector
• Chip ejection adapter
• Textile dust bags
• Hexagonal wrench
• Parallel Guide
• Depth gauge

Technical Data

• Planing width: 82mm / 3.2"
• Adjustable planing depth: 0 - 2.6 mm // 0 - 0.1"
• No-load speed: 17000rpm
• Rated input power: 620W

Characteristics

Planing width
82 mm / 3.2 "
Adjustable planing depth
0 - 2.6 mm // 0 - 0.1 "
Maximum notch depth
9 mm
No-load speed
17000 rpm
Rated input power
620 W
Output power
360 W
Revolutions at rated load
11200 rpm
Length of planer base
295 mm / 11.6 "
Weight (without power cable)
2.7 kg
Cable length
4 m

Vibration

Planing soft wood
1.7 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
86 dB(A)
Sound power level (LwA)
97 dB(A)
Uncertainty of measurement K
3 dB(A)
