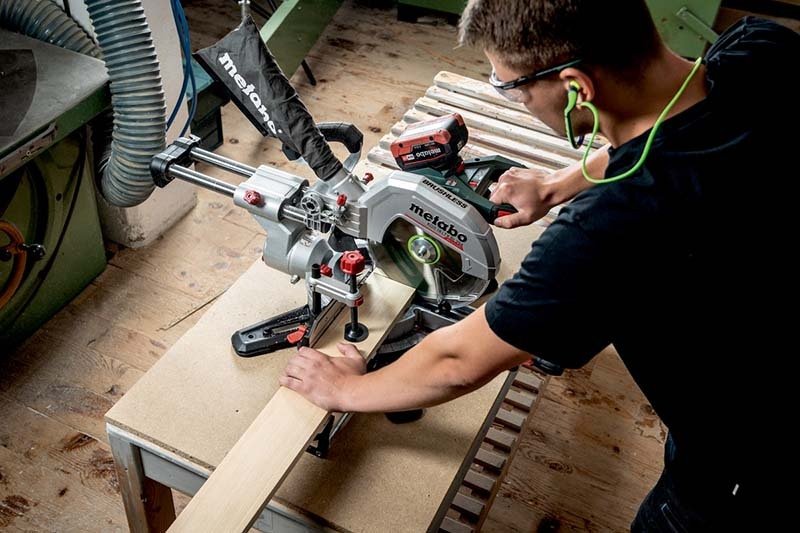

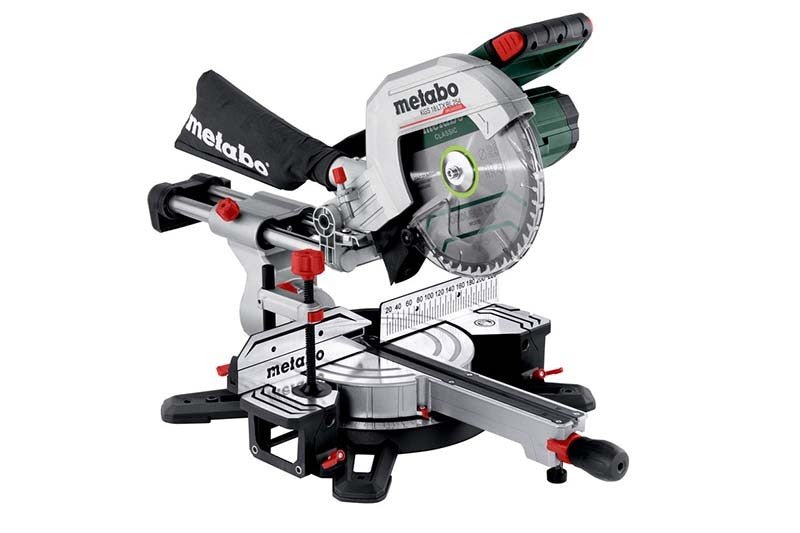

Metabo KGS 18 LTX BL 254 Cordless Mitre Saw - 614254850

• Compact cordless crosscut and mitre saw of the mobile M-class - light, precise, user-friendly.
• Powerful Brushless motor for powerful sawing like with a mains-powered tool.
• Up to 205 cuts in soft wood 80 x 80 mm per battery pack charge (LiHD 10 Ah).
• Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED.
• Large cutting capacity thanks to sliding function for wide work pieces.
• Turntable with fast, precise setting of common angles using stop points.
• Saw blade inclination from -2 to 47°, therefore also suited for undercuts.
• Robust die-cast aluminium design for the highest demands.
• Effective dust extraction via integrated dust scoop.
• Soft start and overload protection for long service life of motor and drive.
• Extendable table width extensions, also removable to put underneath extremely long work pieces.

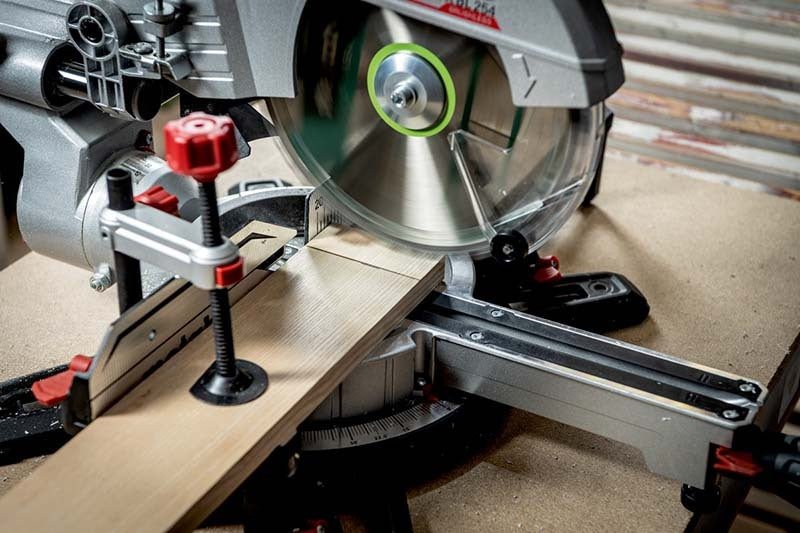

• Quick-action clamp for secure fixing of the work piece from the top or front.
• Depth guide for easy creation of grooves.
• All scales and operating elements are visible from the working position and can be operated intuitively.

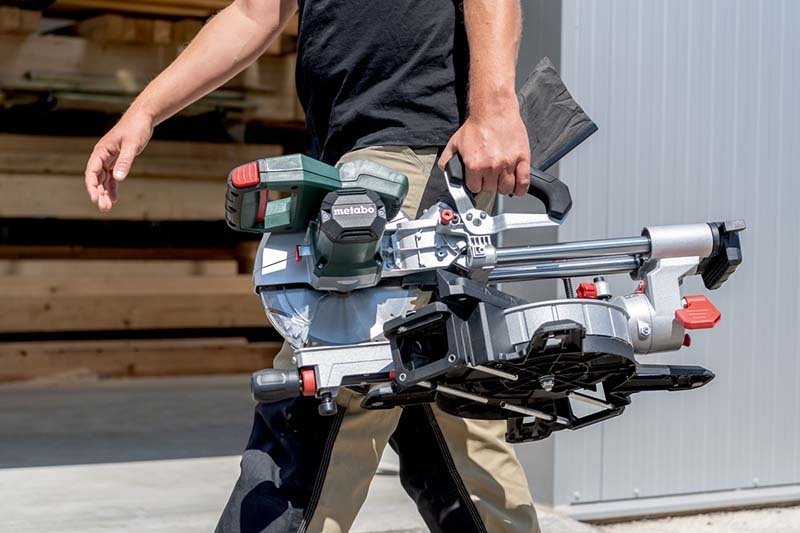

• Ergonomic handle areas for carrying with one or two hands.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Saw blade "cordless cut wood - classic", 254x30 Z48
• Material clamp
• Tool for saw blade change
• Chip Collection Bag
• without battery pack, without charger
• 2 Table length extensions
• Length Guide

Technical Data

Characteristic

Battery voltage
18 V
Support surface
345 x 760 mm // 13.58 x 29.9 "
Maximum cutting width 90°/45°
305 / 215 mm // 12 / 8.46 "
Maximum cutting depth at 90°/45°
92 / 47 mm // 3.6 / 1.85 "
Cutting capacity 90°/90°
305 x 92 mm // 12 x 3.54 "
Cutting capacity 45°/45°
215 x 47 mm // 8.66 x 1.85 "
Turntable setting left/right
50 / 50 °
Saw blade tilt left/right
47 / 2 °
Saw blade
254 x 30 mm // 10 x 1.181 "
No-load speed
4000 rpm
Max. cutting speed
53 m/s / 174 ft/s
Weight without battery pack
14.8 kg / 32.6 lbs

Noise Emission

Sound pressure level
91 dB(A)
Sound power level (LwA)
100 dB(A)
Uncertainty of measurement K
3 dB(A)
