Metabo KH 18 LTX BL 24 18V Cordless Rotary Hammer Drill 3 Mode (Tool Only)
Available

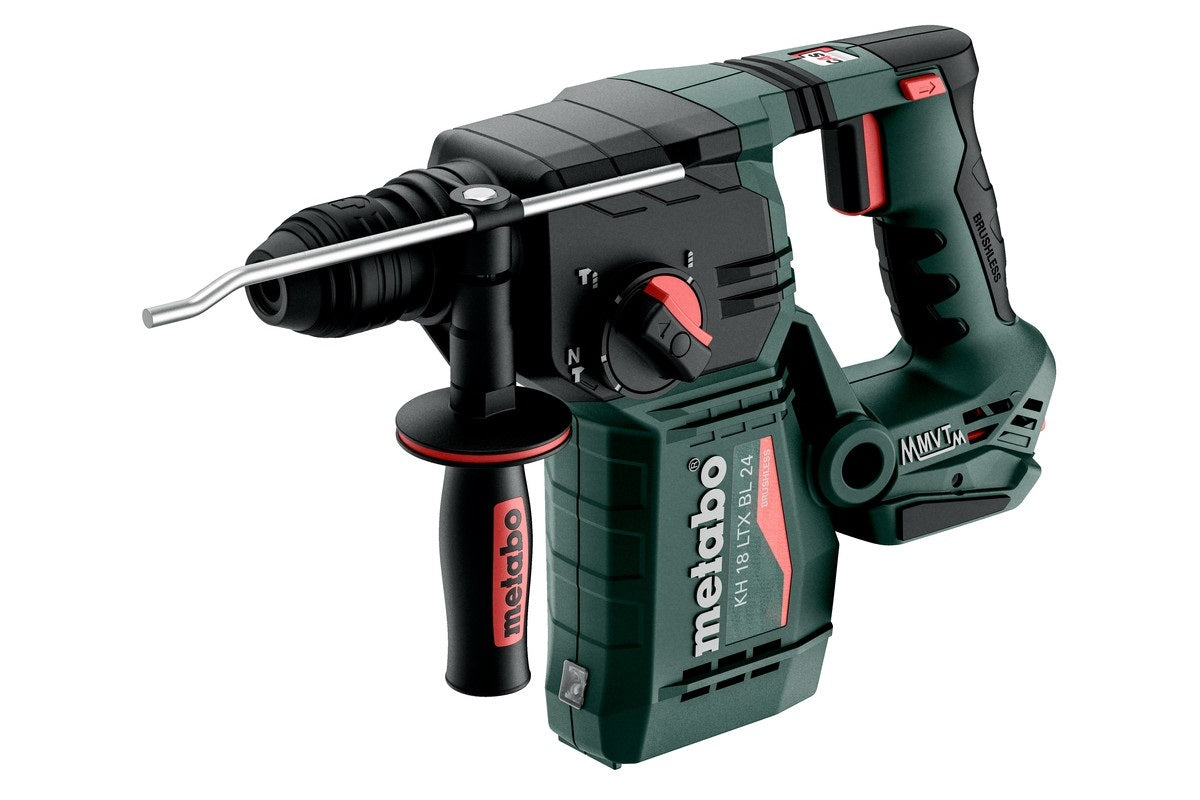

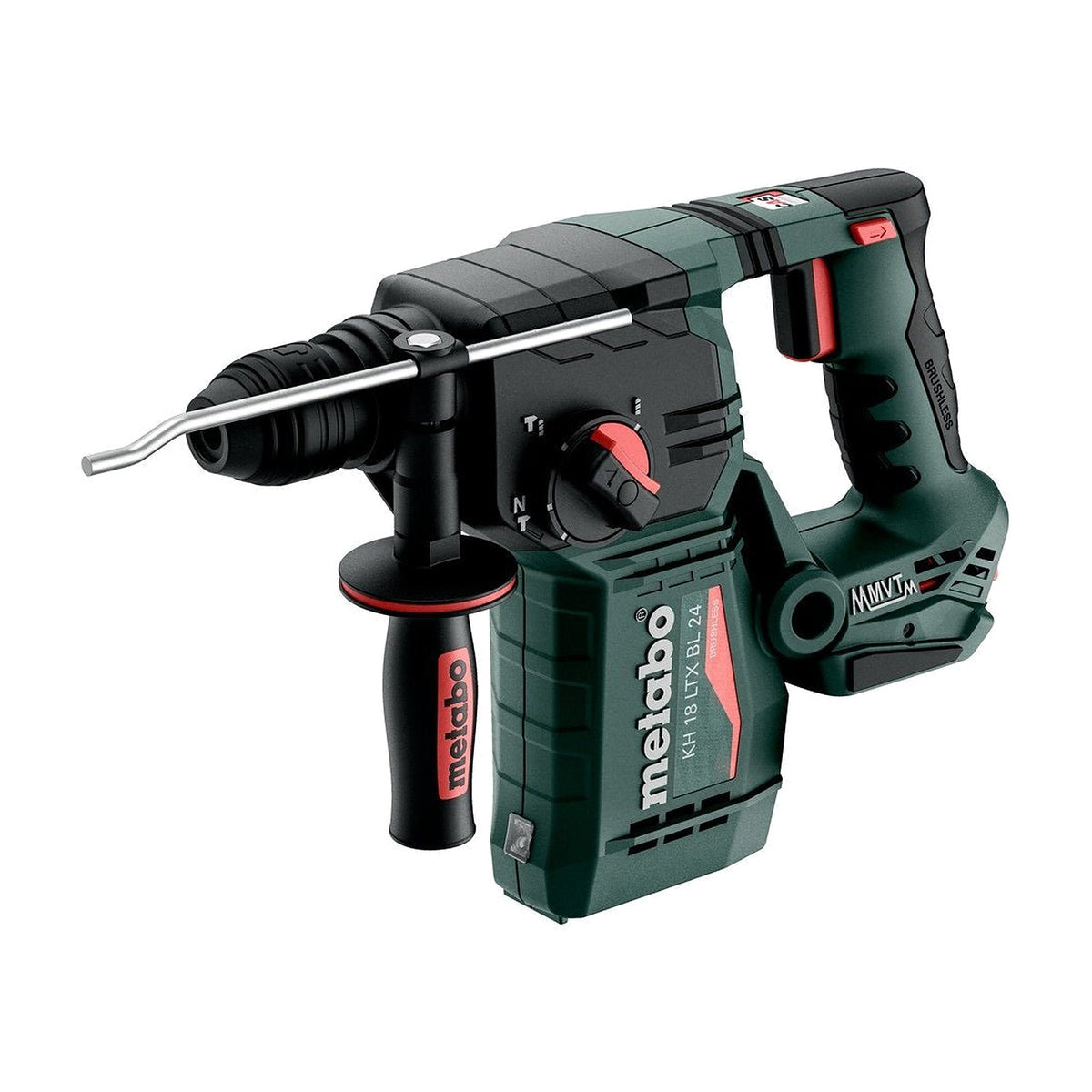

The Metabo KH 18 LTX BL 24 (order number 601713850) is an 18V cordless combination hammer with a brushless motor and an SDS-plus tool holder. It is a very lightweight, compact cordless hammer for low-fatigue drilling in any working position.
It has 3 functions: hammer drilling, drilling and chiselling. It has a maximum single blow energy (EPTA) of 2.2J and a 24mm drill diameter in concrete with hammer drills. It is supplied with a rubber-coated side handle and drilling depth guide, and without battery pack and charger.
Where this product is used
- Hammer drilling in concrete with hammer drills (24mm drill diameter)
- Drilling in steel (13mm drill diameter) and in soft wood (30mm)
- Hammer drilling in masonry with core bits (82mm drill diameter)
- Chiselling
- Dust-low drilling with the external dust extraction ESA plus (accessory)
Features
- Very lightweight, compact cordless hammer with brushless motor
- Brushless technology and high-performance hammer action
- Combination hammer with 3 functions: hammer drilling, drilling and chiselling
- Metabo VibraTech (MVT) integrated damping system to reduce vibrations
- Vario-Tacho-Constamatic (VTC) Full Wave electronics keep customised speeds constant under load
- Electronic soft start for precise spot-drilling
- Safety clutch decouples the drive mechanically if the drill stops unexpectedly
- LED work light for a view of the drilling site
- It can be combined with all 18V battery packs and chargers of the CAS brands
Key specifications
| Specification | Detail |
|---|---|
| Brand | Metabo |
| Model | KH 18 LTX BL 24 |
| Order number | 601713850 |
| Battery voltage | 18V |
| Max. single blow energy (EPTA) | 2.2J |
| Maximum impact rate | 4750bpm |
| Drill diameter, concrete with hammer drills | 24mm (1") |
| Drill diameter, masonry with core bits | 82mm (3 7/32") |
| Drill diameter, steel | 13mm (1/2") |
| Drill diameter, soft wood | 30mm (1 3/16") |
| No-load speed | 0-1280rpm |
| Tool holder | SDS-plus |
| Weight without battery pack | 2.7kg |
| Vibration (hammer drilling concrete) | 13.6 m/s² (K 1.5 m/s²) |
| Vibration (chiselling) | 9.2 m/s² (K 1.5 m/s²) |
| Sound pressure level | 93 dB(A) |
| Sound power level (LwA) | 101 dB(A), K 3 dB(A) |
Supplied with
- Rubber-coated side handle
- Drilling depth guide
- Without battery pack, without charger
