Metabo KH 18 LTX BL 24 Q 18V Cordless Rotary Hammer Drill 3 Mode With Quick Chuck (Tool Only)
Available

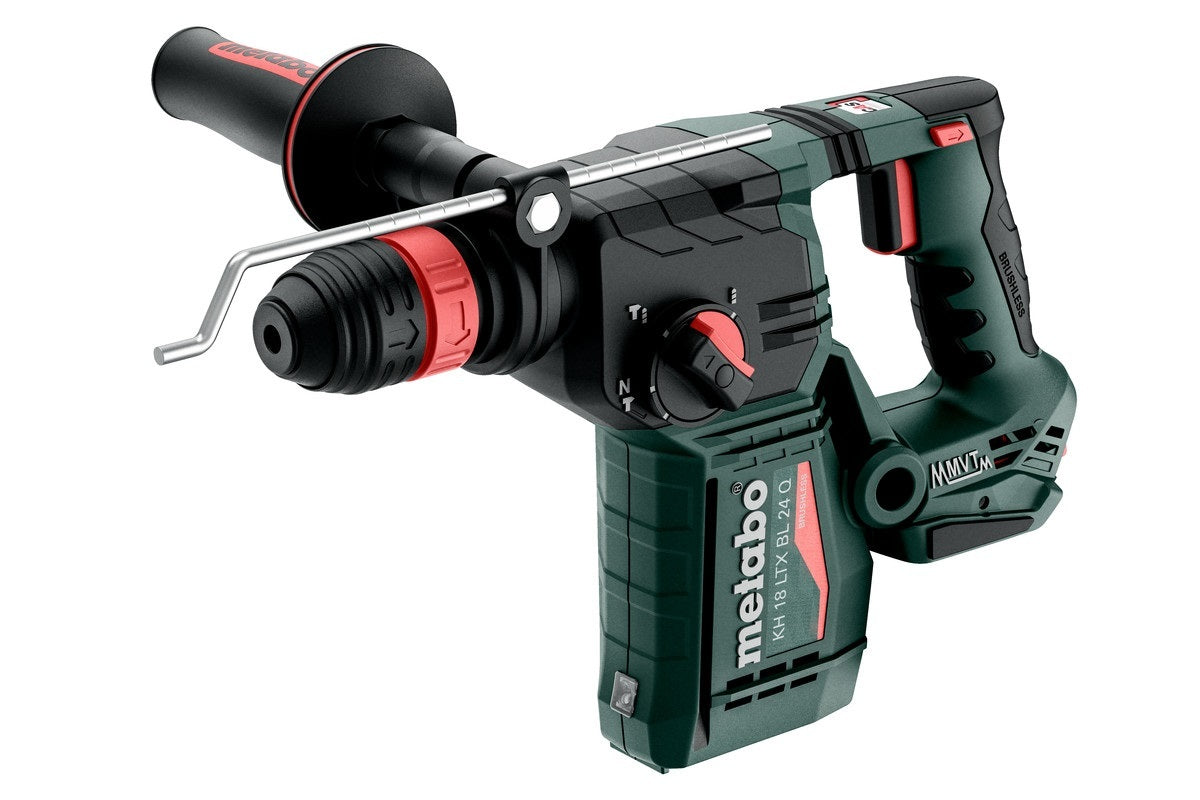

The Metabo KH 18 LTX BL 24 Q (order number 601714850) is an 18V cordless combination hammer with an integrated extraction interface. It is an extremely light and compact cordless hammer.
Metabo Quick allows a quick change between the SDS-plus hammer chuck and the keyless chuck, and both chucks are in the scope of delivery. It has 3 functions: hammer drilling, drilling and chiselling, with a maximum single blow energy (EPTA) of 2.2J. It is supplied without battery pack and without charger.
Where this product is used
- Hammer drilling in concrete with hammer drills (24mm drill diameter)
- Drilling in steel (13mm drill diameter) and in soft wood (30mm), using the keyless chuck for tools with cylindrical shank
- Chiselling

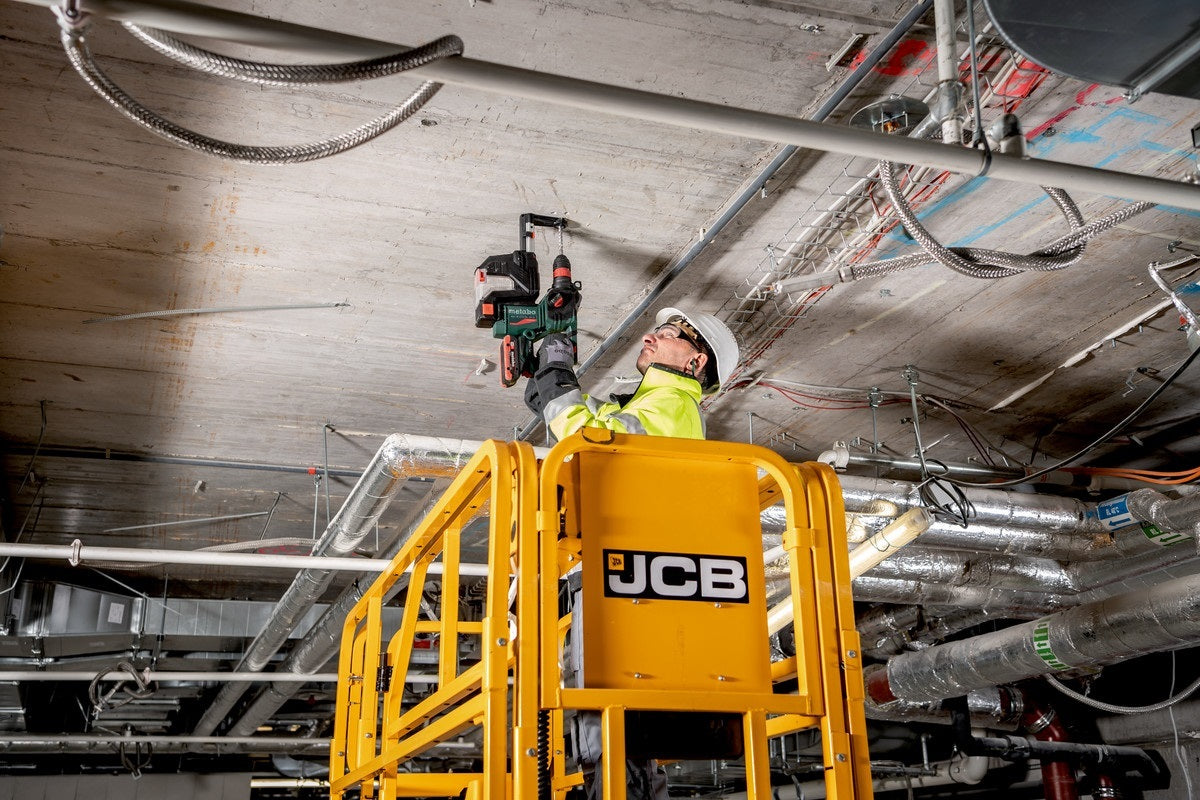

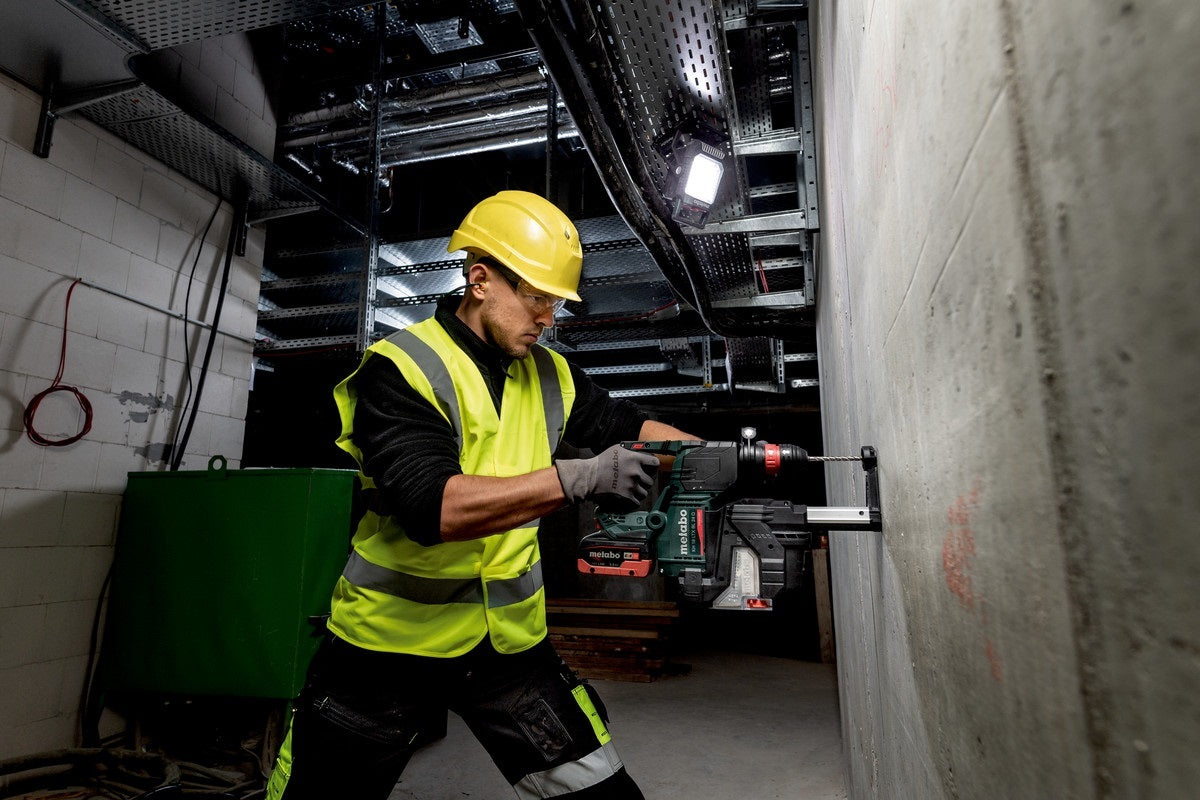

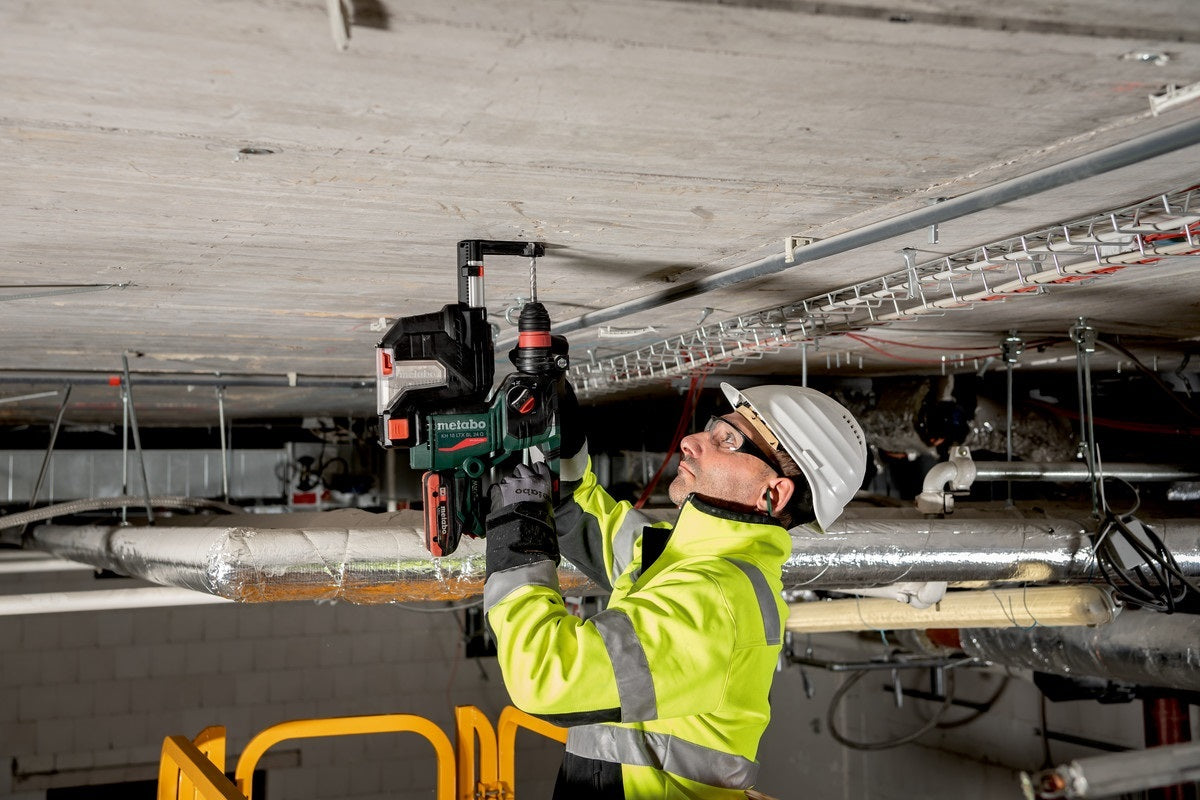

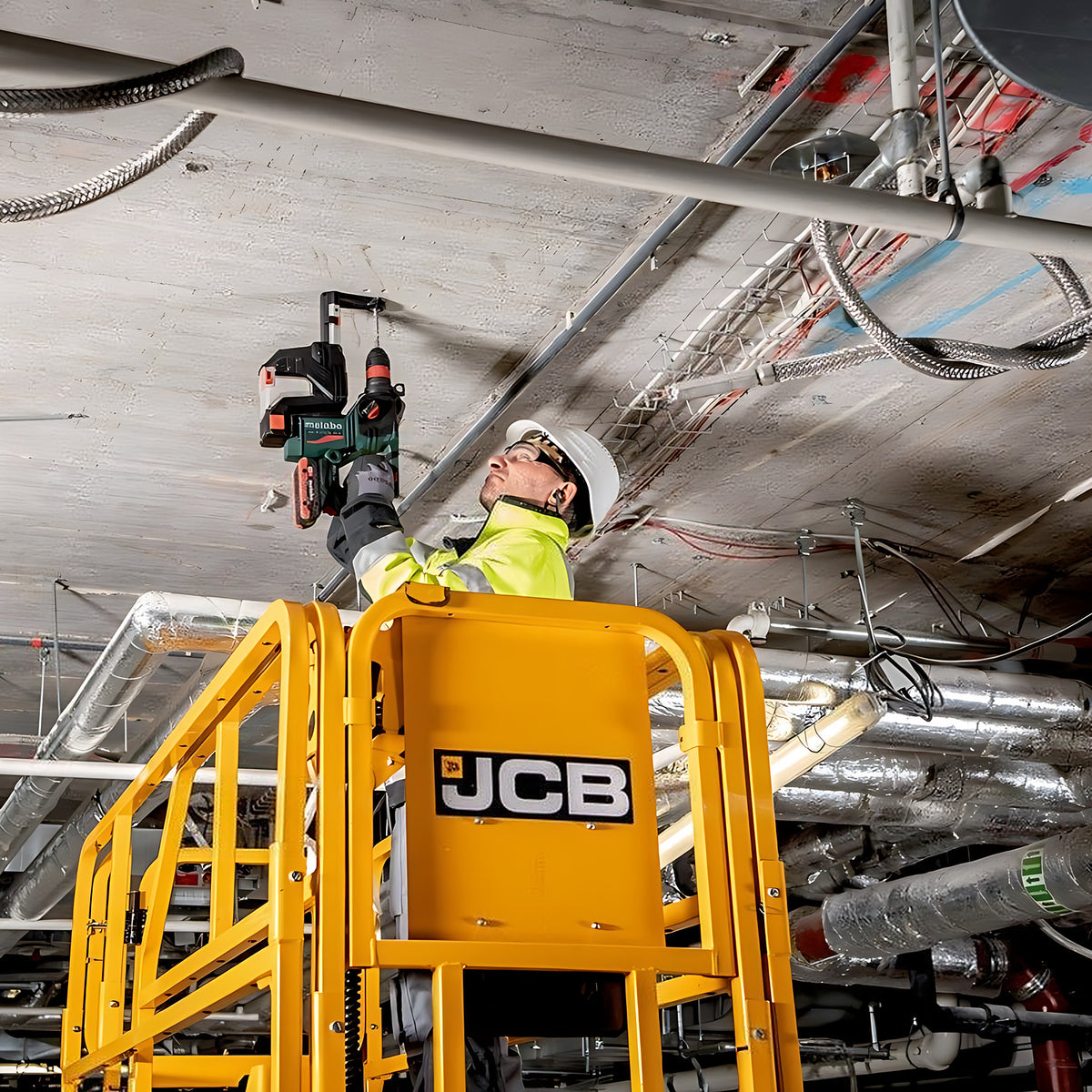

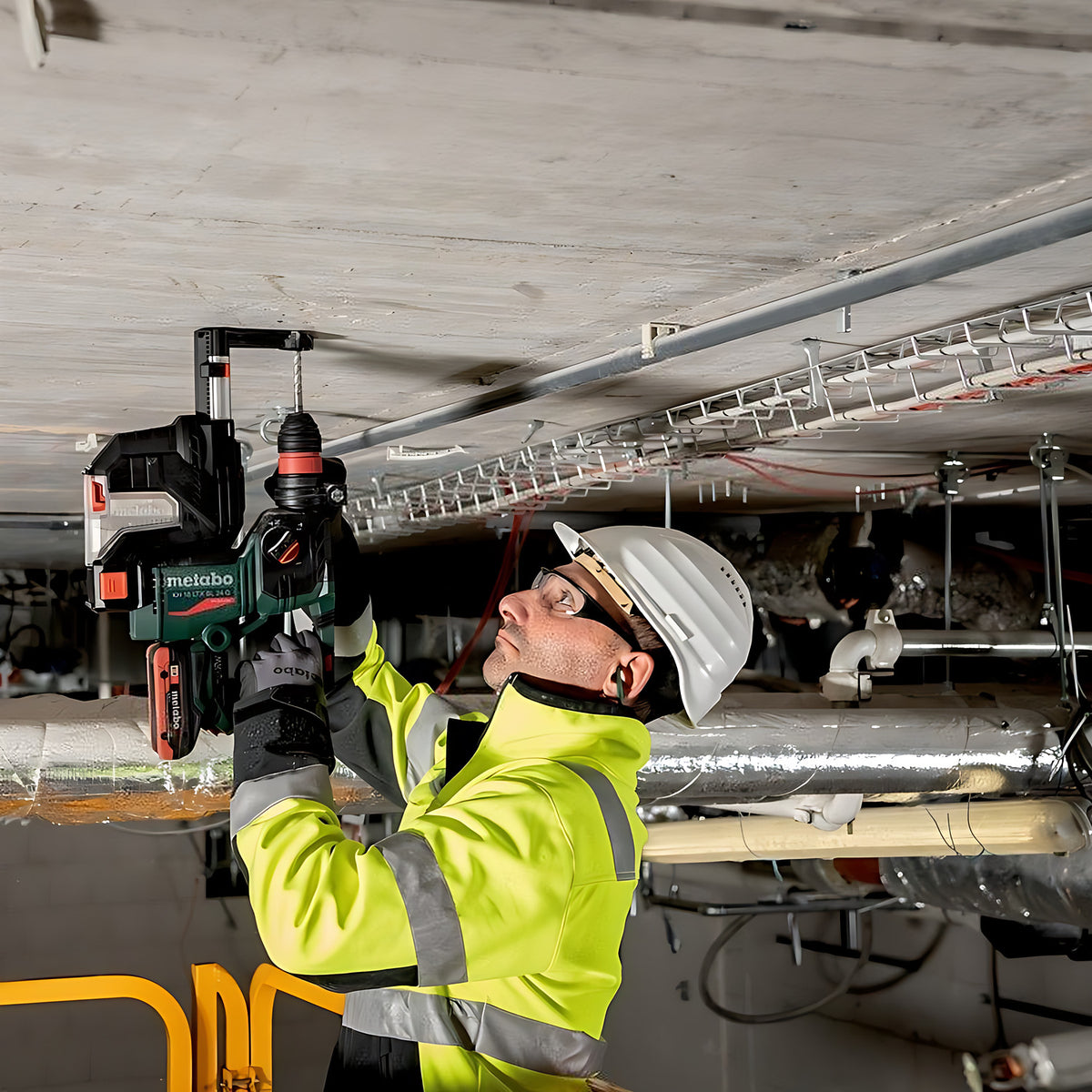

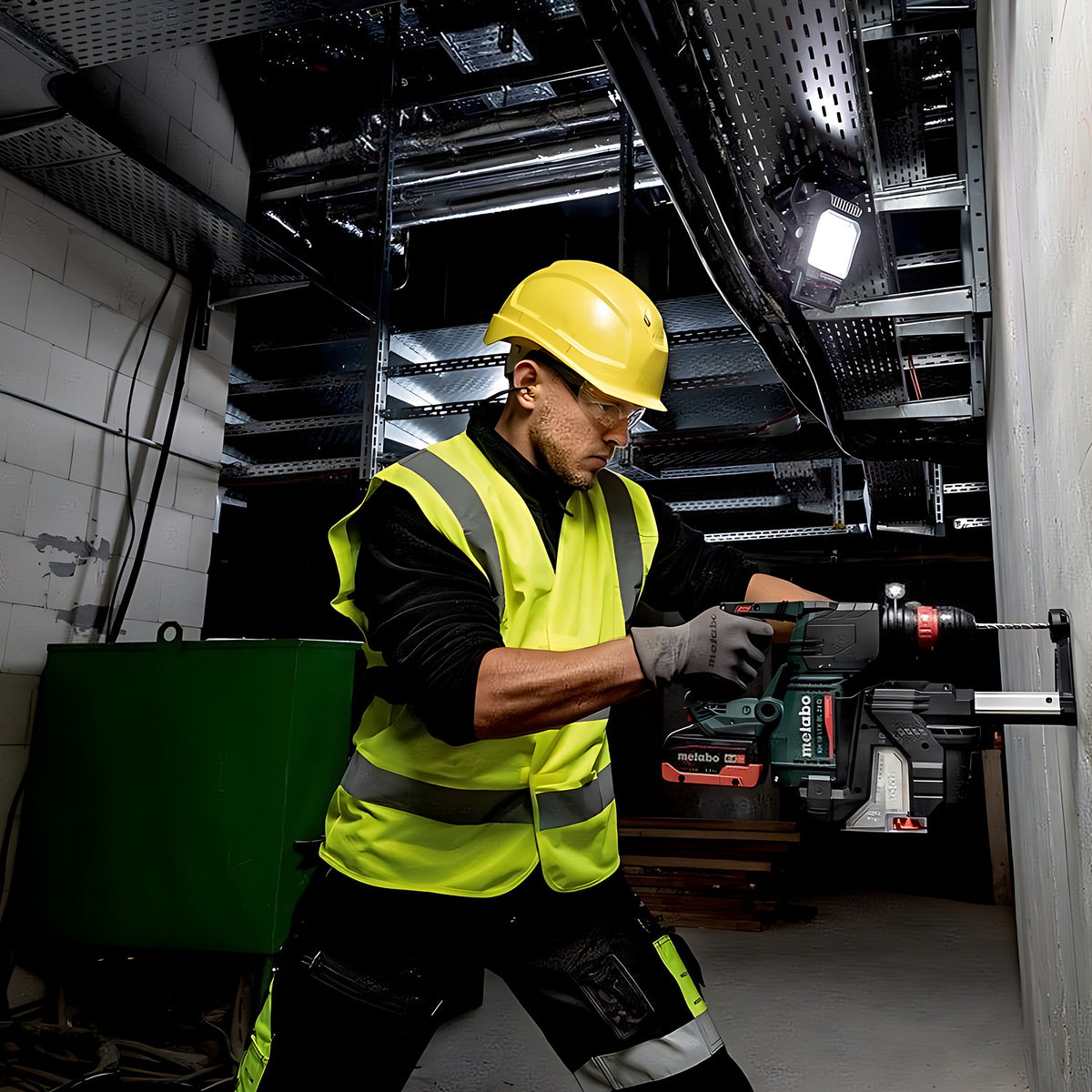

- Dust-low drilling with the compact dust extraction ISA 24 (accessory)
Features
- Extremely light and compact cordless hammer with integrated extraction interface
- Brushless technology and high-performance hammer action
- Combination hammer with 3 functions: hammer drilling, drilling and chiselling
- Metabo VibraTech (MVT) integrated damping system to reduce vibrations
- Metabo Quick for a quick change between SDS-plus hammer chuck and keyless chuck
- Vario-Tacho-Constamatic (VTC) Full Wave electronics keep customised speeds constant under load
- Electronic soft start for precise spot-drilling
- Double safety when the drill bit jams: mechanical decoupling plus ultra-fast sensor-controlled shutdown
- LED work light for a view of the drilling site
- It can be combined with all 18V battery packs and chargers of the CAS brands
Key specifications
| Specification | Detail |
|---|---|
| Brand | Metabo |
| Model | KH 18 LTX BL 24 Q |
| Order number | 601714850 |
| Battery voltage | 18V |
| Max. single blow energy (EPTA) | 2.2J |
| Maximum impact rate | 4750bpm |
| Drill diameter, concrete with hammer drills | 24mm (1") |
| Drill diameter, masonry with core bits | 82mm (3 7/32") |
| Drill diameter, steel | 13mm (1/2") |
| Drill diameter, soft wood | 30mm (1 3/16") |
| No-load speed | 0-1280rpm |
| Tool holder | SDS-plus |
| Weight without battery pack | 3kg |
| Vibration (hammer drilling concrete) | 13.4 m/s² (K 1.5 m/s²) |
| Vibration (chiselling) | 9.1 m/s² (K 1.5 m/s²) |
| Sound pressure level | 93 dB(A) |
| Sound power level (LwA) | 101 dB(A), K 3 dB(A) |
Supplied with
- Hammer chuck for tools with SDS-plus shank end
- Keyless chuck for tools with cylindrical shank
- Rubber-coated side handle
- Drilling depth guide
- Without battery pack, without charger
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Metabo KH 18 LTX BL 24 Q 18V Cordless Rotary Hammer Drill 3 Mode With Quick Chuck (Tool Only)
SKU: A0177646 | Model: 601714850
Metabo KH 18 LTX BL 24 Q combination hammer, order number 601714850, supplied with an SDS-plus hammer chuck, keyless chuck, side handle and drilling depth guide, without battery pack or charger.
