***Drill bit not included. The image is for illustration purposes only.***

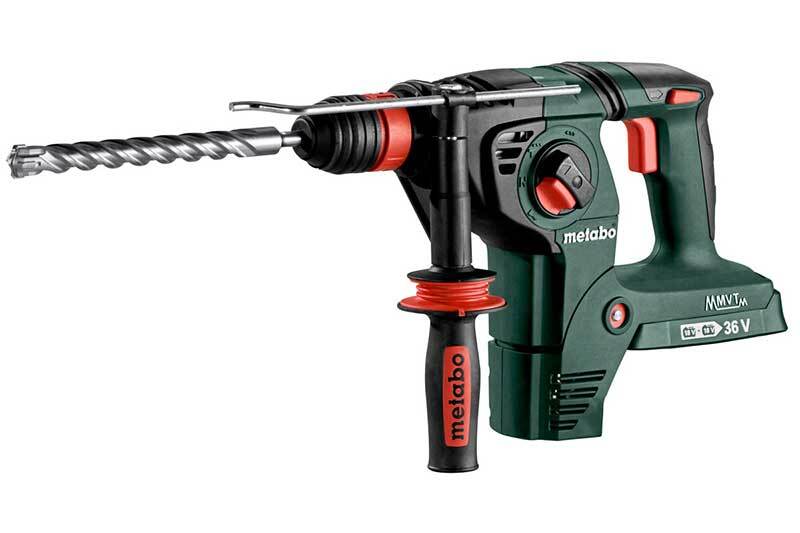

Metabo KHA 36-18 LTX 32 Cordless Rotary Hammer (600796840)

• Combination hammer with 3 functions: hammer drilling, drilling, and chiseling.
• 100% compatibility with the 18 Volt class: powerful 36 Volt operation with two 18Volt battery packs from Metabo.
• Metabo VibraTech (MVT): working, also continuously, in a low-fatigue manner whilst protecting the user's health.
• Ergonomic housing shape for chiseling tasks without side handle.
• Metabo Quick: fast, tool-free chuck for working with SDS-plus and straight shank drill bits.
• Variospeed (V) Electronics for working at customised speeds to suit various application materials.
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly.
• With meta box, the intelligent solution for transport and storage.

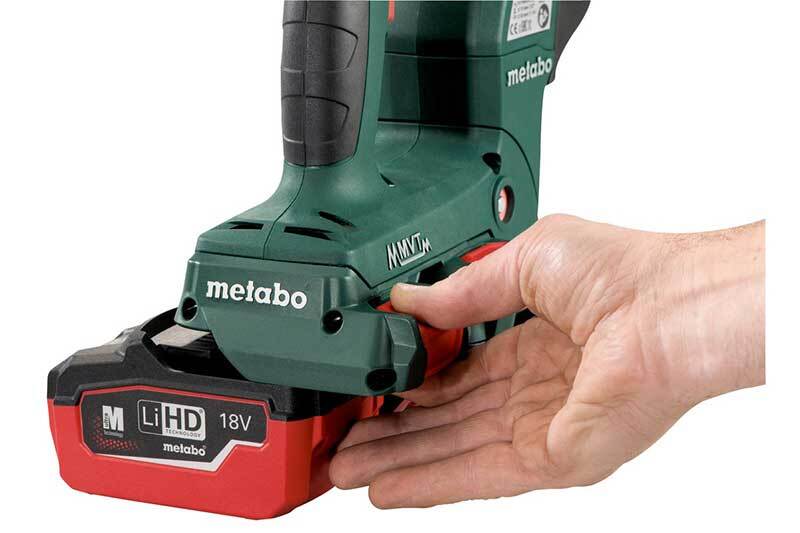

• Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Hammer chuck for tools with SDS-plus shank end
• Drilling depth guide
• MetaBOX 165 L
• without battery pack, without charger
• Keyless chuck for tools with cylindrical shank
• Metabo VibraTech (MVT) side handle

Technical Data

• Battery voltage: 18V
• Max. single blow energy (EPTA): 3.1J
• Maximum impact rate: 4500bpm
• Drill-Ø concrete with hammer drills: 32 mm / 1 1/4"
• Bit retainer: SDS-plus

Characteristics

Type of battery pack
Li-Power
Battery voltage
18 V
Max. single blow energy (EPTA)
3.1 J
Maximum impact rate
4500 bpm
Drill-Ø concrete with hammer drills
32 mm / 1 1/4"
Drill-Ø masonry with core bits
68 mm / 2 11/16"
Drill Ø steel
13 mm / 1/2"
Drill-Ø soft wood
30 mm / 1 3/16"
No-load speed
0 - 1100 rpm
Bit retainer
SDS-plus
Weight without battery pack
3.8 kg / 8.4 lbs
Weight with battery pack
5.1 kg / 11.2 lbs

Vibration

Hammer drilling concrete
13 m/s²
Uncertainty of measurement K
1.5 m/s²
Chiseling
10.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
88 dB(A)
Sound power level (LwA)
99 dB(A)
Uncertainty of measurement K
3 dB(A)
