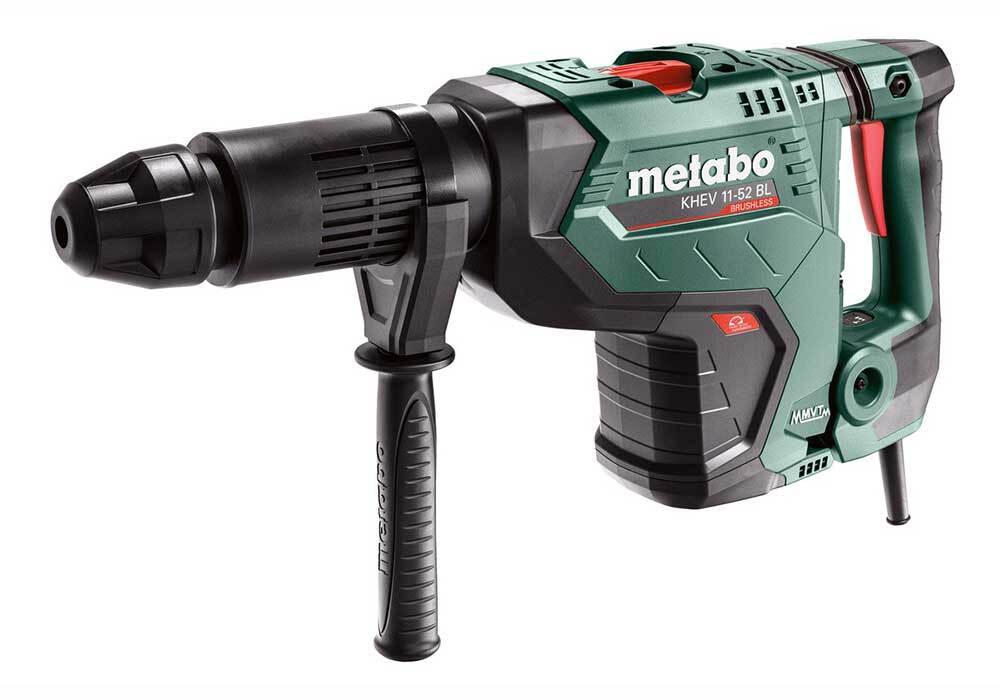

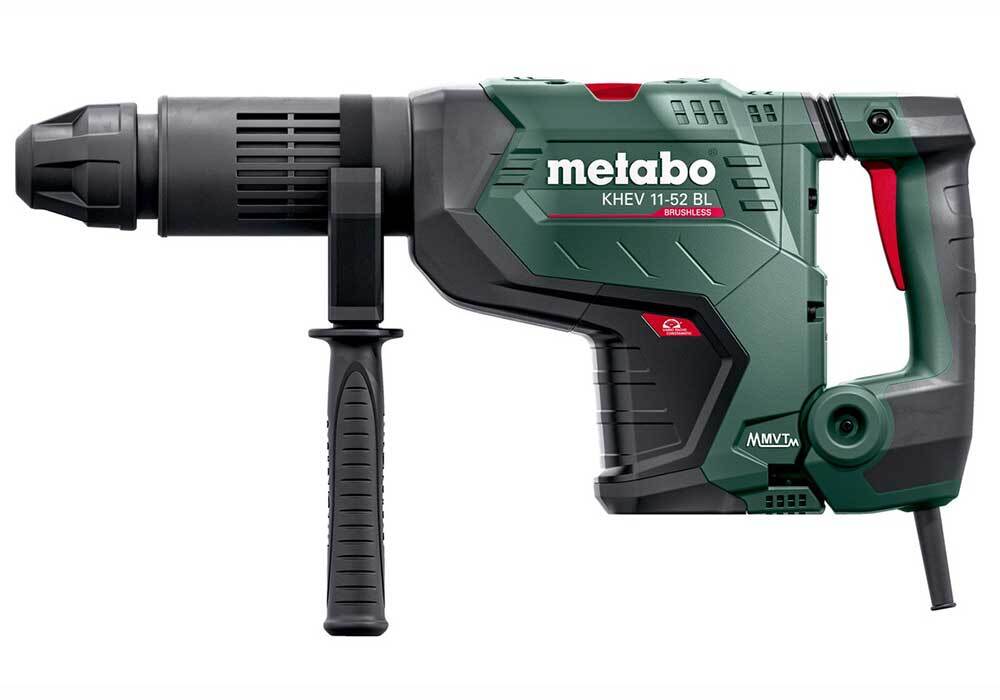

Metabo Combination Hammer KHEV 11-52 BL (600767500)

• Maximum drilling progress and high breaking performance thanks to maintenance-free brushless motor and high-performance hammer action.
• Long service life thanks to brushless technology and robust aluminium die-cast housings of gear and motor.
• Combination hammer with 2 functions: hammer drilling and chiselling.
• Metabo VibraTech (MVT) with double dampening: Decoupled handle and impact-absorbing counter-oscillating weight actively reduce vibrations for healthy working also in continuous use.
• Ergonomically shaped, slim gripping area with large speed control trigger for comfortable working.
• Easily accessible locking switch for chiselling in continuous mode.
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load.
• Optional reduction of speed and impact energy for working in softer materials.
• Electronic soft start for precise spot-drilling.
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly.
• Restart protection: prevents unintentional start-up after power supply interruption.
• Overload protection: protects the motor from overheating.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• rubber-coated side handle
• Plastic carry case
• Lubricant for tool shank end
• Duster

Technical Data

• Max. single blow energy (EPTA): 18.8 J
• Maximum impact rate: 2360bpm
• Rated input power: 1500W
• Drill-Ø concrete with hammer drills: 52mm / 2 1/16"
• Bit retainer: SDS-max

Characteristics

Max. single blow energy (EPTA)
18.8 J
Maximum impact rate
2360 bpm
Rated input power
1500 W
Drill-Ø concrete with hammer drills
52 mm / 2 1/16 "
No-load speed
200 / 270 rpm
Revolutions at rated load
200 / 270 rpm
Bit retainer
SDS-max
Collar diameter
85 mm / 3 11/32 "
Weight (without power cable)
12.4 kg / 27.3 lbs
Cable length
6 m / 236 7/32 "

Vibration

Hammer drilling concrete
14.1 m/s²
Uncertainty of measurement K
1.5 m/s²
Chiseling
9.7 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
98 dB(A)
Sound power level (LwA)
110 dB(A)
Uncertainty of measurement K
3 dB(A)
