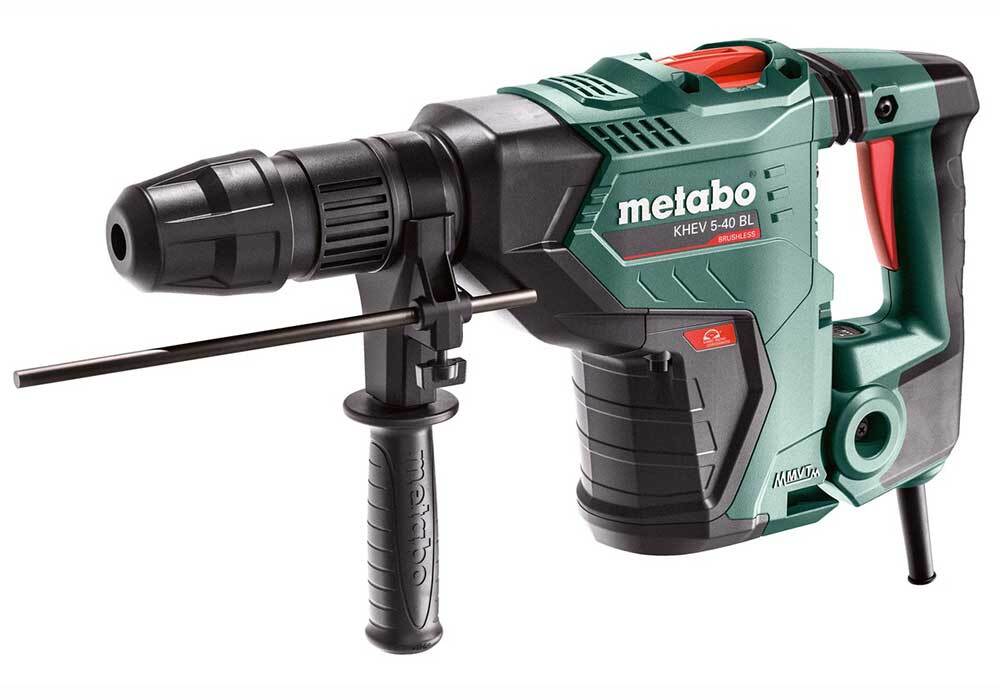

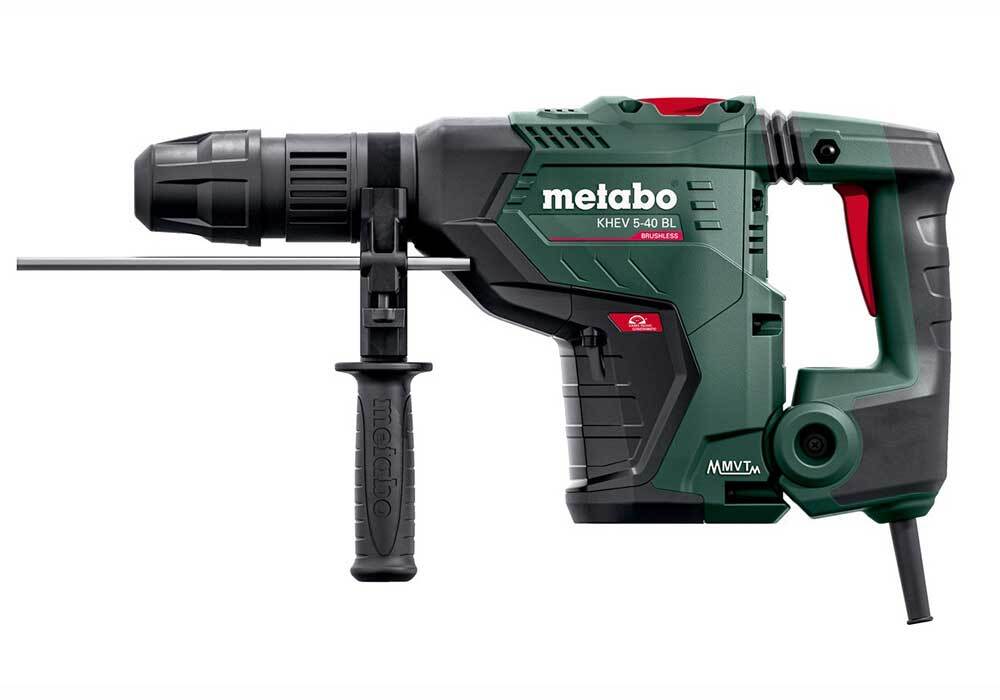

Metabo KHEV 5-40 BL Brushless SDS Max Rotary Hammer 1150W, 2 Mode
Available
The Metabo KHEV 5-40 BL (600765500) is an SDS-max combination hammer with a rated input power of 1150W and a maximum single blow energy of 8.7J (EPTA). It has 2 functions: hammer drilling and chiselling.
A brushless motor and high-performance hammer action give maximum drilling progress and high breaking performance.
Where this product is used
- Hammer drilling in concrete (40mm with hammer drills)
- Drilling in masonry with core bits (105mm)
- Chiselling
Features
- Brushless motor, maintenance-free, with robust aluminium die-cast housings for gear and motor
- Combination hammer with 2 functions: hammer drilling and chiselling
- Metabo VibraTech (MVT) with double dampening: decoupled handle and impact-absorbing counter-oscillating weight to reduce vibrations
- Ergonomically shaped, slim gripping area with a large speed control trigger, and a locking switch for chiselling in continuous mode
- Vario-Tacho-Constamatic (VTC) full-wave electronics for speeds that stay constant under load
- Optional reduction of speed and impact energy for starting a drill hole or working in softer materials, plus electronic soft start for precise spot-drilling
- Metabo S-automatic safety clutch decouples the drive mechanically if the drill stops unexpectedly
- Restart protection and overload protection
- Low-dust chiselling and drilling with the external dust extraction ESA max (accessory)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Metabo |
| Model | KHEV 5-40 BL |
| Order number | 600765500 |
| Maximum single blow energy (EPTA) | 8.7J |
| Maximum impact rate | 2900bpm |
| Rated input power | 1150W |
| Drill diameter, concrete (hammer drills) | 40mm (1 9/16") |
| Drill diameter, masonry (core bits) | 105mm (4 1/8") |
| No-load speed | 350 / 500rpm |
| Speed at rated load | 350 / 500rpm |
| Tool holder | SDS-max |
| Collar diameter | 64.6mm (2 9/16") |
| Weight (without power cable) | 8.3kg |
| Cable length | 6m |
| Vibration, hammer drilling concrete | 10.8 m/s² (K 1.5 m/s²) |
| Vibration, chiselling | 9.6 m/s² (K 1.5 m/s²) |
| Sound pressure level | 96 dB(A) (K 3 dB(A)) |
| Sound power level (LwA) | 110 dB(A) (K 3 dB(A)) |
Supplied with
- Rubber-coated side handle
- Drilling depth guide
- Lubricant for tool shank end
- Duster
- Plastic carry case
