Metabo M 100 Electromagnetic Drill Stand (Suit B32/3) 627100000
Available

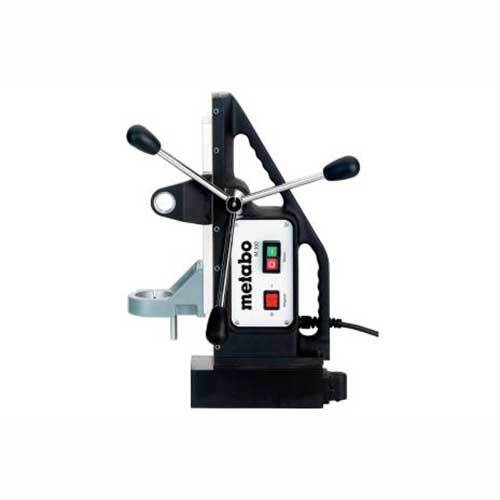

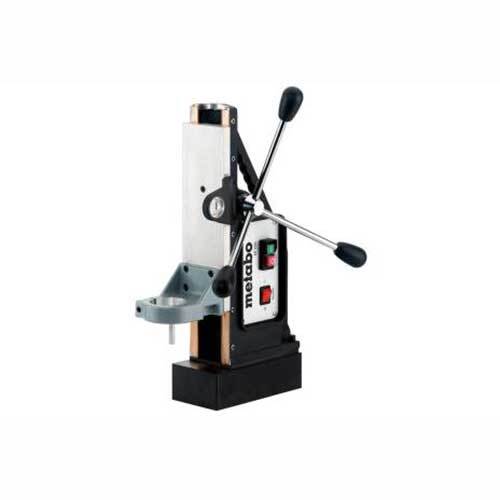

The Metabo M 100 (order number 627100000) is a magnetic drill stand with a magnetic force (maximum) of 18000N. It can be combined with the B 32/3 drill into a magnetic drill unit with a maximum drill diameter of 100mm (with a core hole drill).
The stand has a 65mm aperture, a feed depth of 260mm and a maximum height of 650mm. It weighs 22kg and comes in a sheet steel case.
Where this product is used
- Drilling with the B 32/3 drill fitted, up to a maximum drill diameter of 100mm (with a core hole drill)
- Working on vertical, sloping or overhead surfaces, when used with the safety chain supplied
Features
- Magnet base with high holding power for safe operation
- Also suitable, with the safety chain supplied, for working on vertical, sloping or overhead surfaces
- Vertical feed driven by rack and pinion
- Upper part can be swivelled and moved sideways to position the drill bit tip exactly over the punch mark
- Power socket on the stand for connecting the drill directly
- The drill fitted to the stand cannot be started until the stand itself has been switched on
- Adjustable support to back up the stand against the reacting forces that arise when drilling
- Graduated collar indicating the depth to which the hole is drilled
Key specifications
| Specification | Detail |
|---|---|
| Brand | Metabo |
| Model | M 100 |
| Order number | 627100000 |
| Aperture | 65mm |
| Depth of feed | 260mm |
| Maximum height | 650mm |
| Magnetic force (maximum) | 18000N |
| Magnet base dimensions | 110 x 220mm |
| Weight | 22kg |
Supplied with
- Safety chain
- Fastening screw G 3/4"
- Offset screwdriver SW 5 and SW 8
- Sheet steel case
