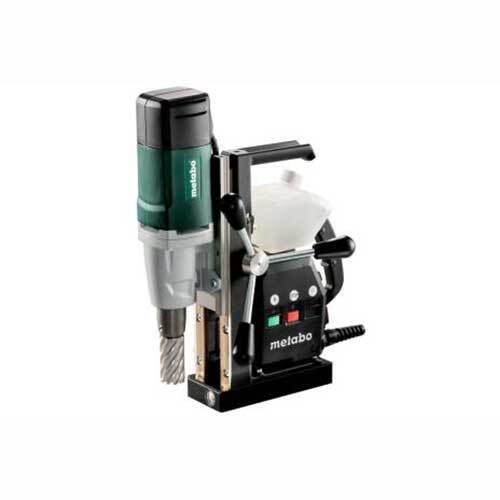

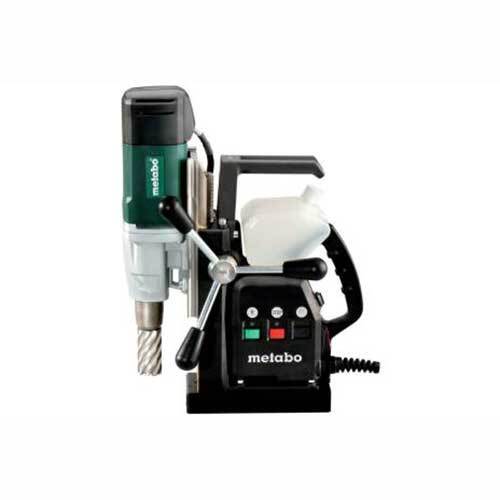

Metabo MAG 32 Magnetic Core Drill

• Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks

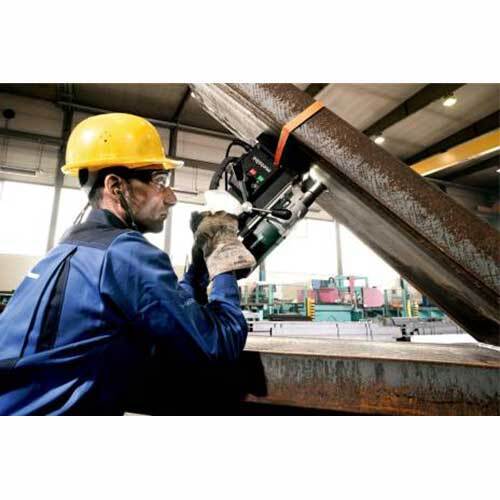

• Magnetic base with high holding power permits working on vertical surfaces and overhead
• Robust Metabo marathon motor with internal wiring for long service life
• Integrated coolant container for easy to dose internal cooling of the core drill
• Bright LED light for easy alignment in poor light conditions
• Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
• Protective circuit starts motor only if the magnet is activated
• Restart protection: prevents unintentional start-up after power supply interruption
• Lockable slide for comfortable tool change
• Handle for easy carrying and lifting
• Resistant mains cable (5 m) with rubber shroud

Contents

• Ejector pin 75 mm
• Swarf protection guard
• Transport case
• Safety strap
• Hexagon socket wrench SW 4

Technical Data

• Rated input power: 1000 W
• Max. drill-Ø with core drill: 32 mm / 1 1/4 "
• Max. drill-Ø with spiral drill: 13 mm / 1/2 "
• Maximum drilling depth: 50 mm / 2 "
• No-load speed: 700 rpm
• Bit retainer: Weldon shaft 19 mm (3/4")
• Max. magnetic holding force: 12250 N

Characteristics

Rated input power
1000 W
Output power
520 W
Max. drill-Ø with core drill
32 mm / 1 1/4 "
Max. drill-Ø with spiral drill
13 mm / 1/2 "
Maximum drilling depth
50 mm / 2 "
No-load speed
700 rpm
Revolutions at rated load
450 rpm
Bit retainer
Weldon shaft 19 mm (3/4")
Weight
11.9 kg / 26.2 lbs
Cable length
5 m / 16 ft
Torque
50 Nm // 443 in-lbs
Max. depth of feed
160 mm / 6 5/16 "
Max. magnetic holding force
12250 N

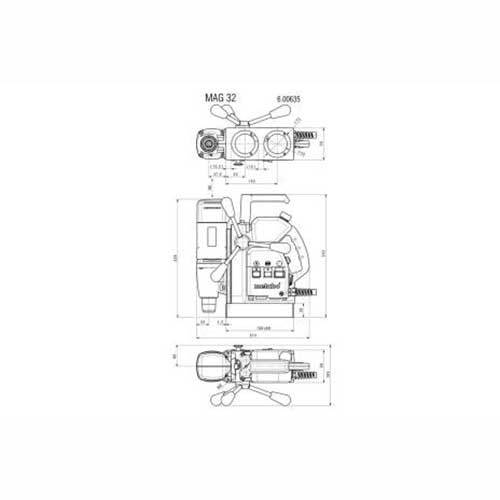

Dimensions of the magnet base
90 x 189 mm // 3 9/16 x 7 1/2 "
Height carriage lowest position
343 mm / 13 1/2 "
Height carriage topmost position
490 mm / 19 9/32 "

Vibration

Drilling in metal
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
85 dB(A)
Sound power level (LwA)
98 dB(A)
Uncertainty of measurement K
3 dB(A)
