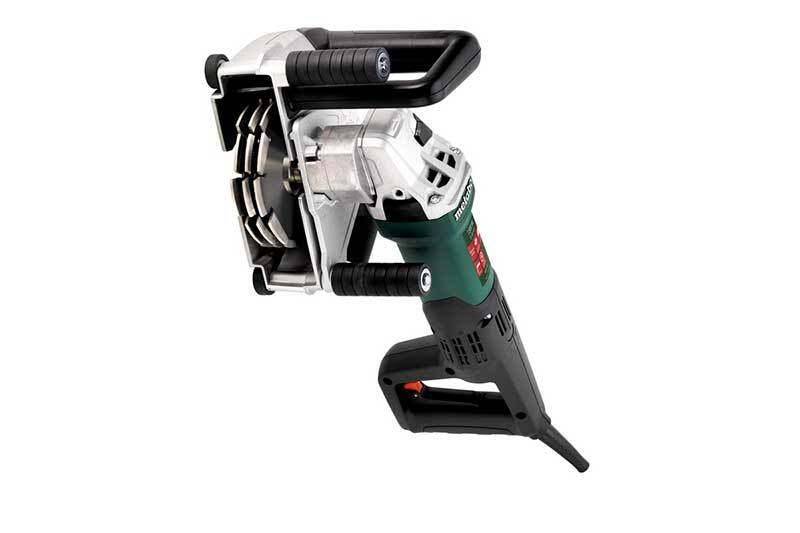

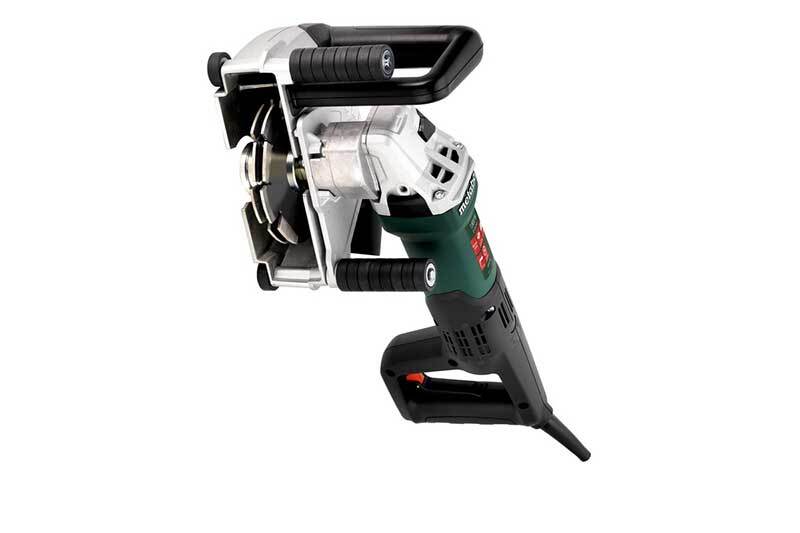

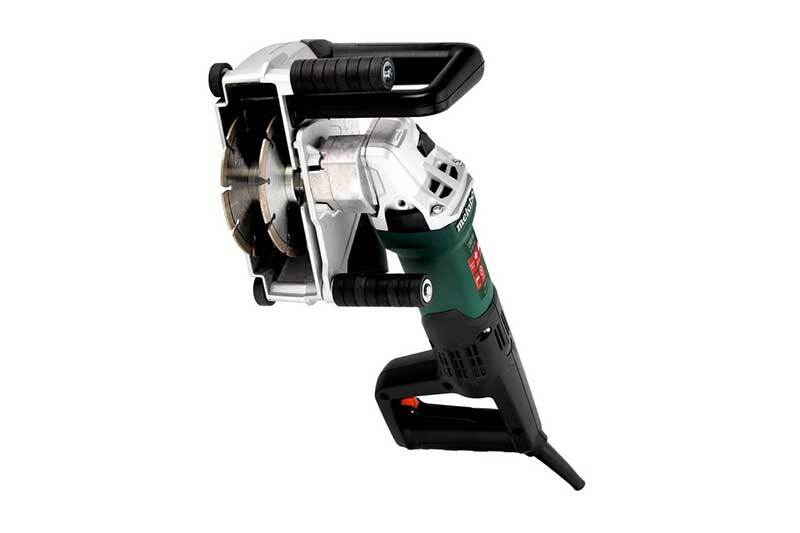

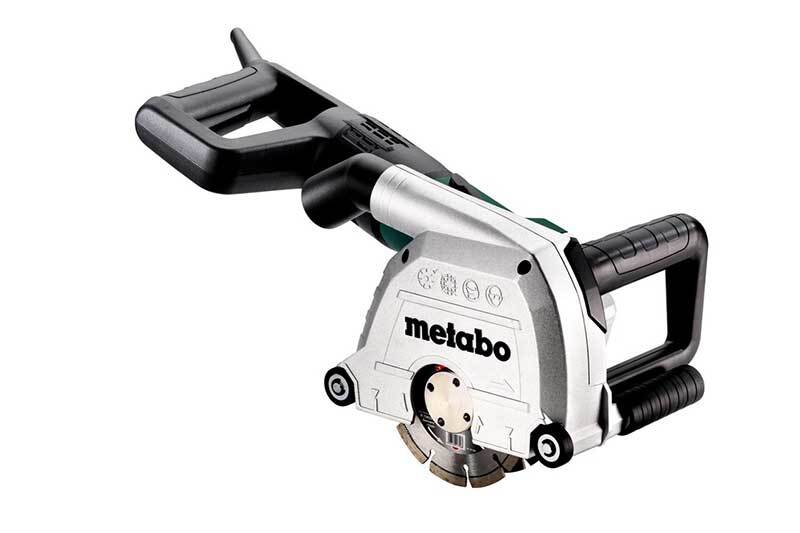

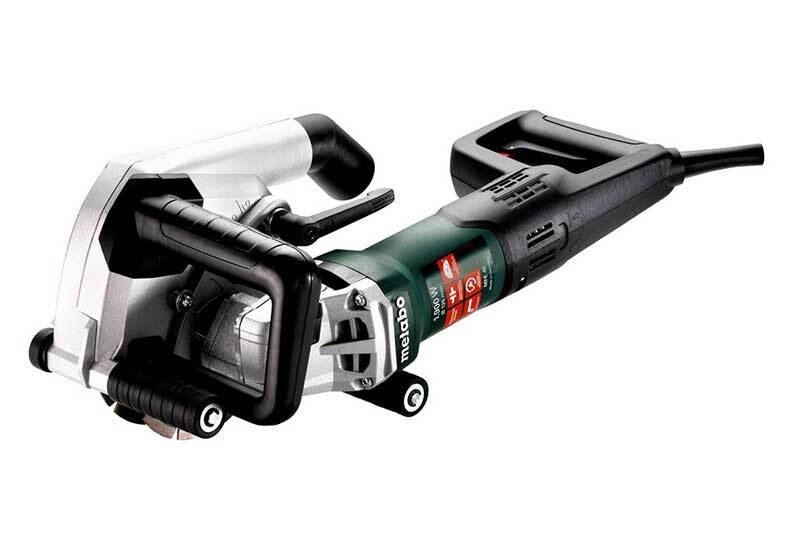

Metabo Wall Chaser - MFE 40 (604040530)

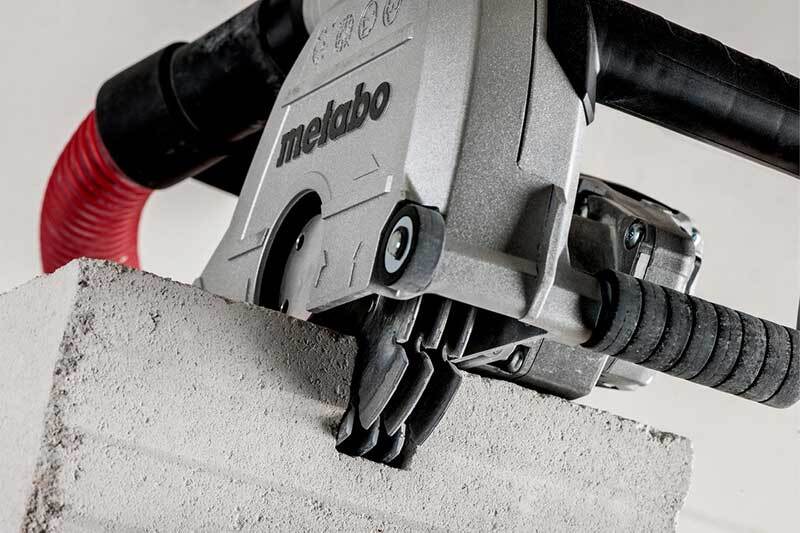

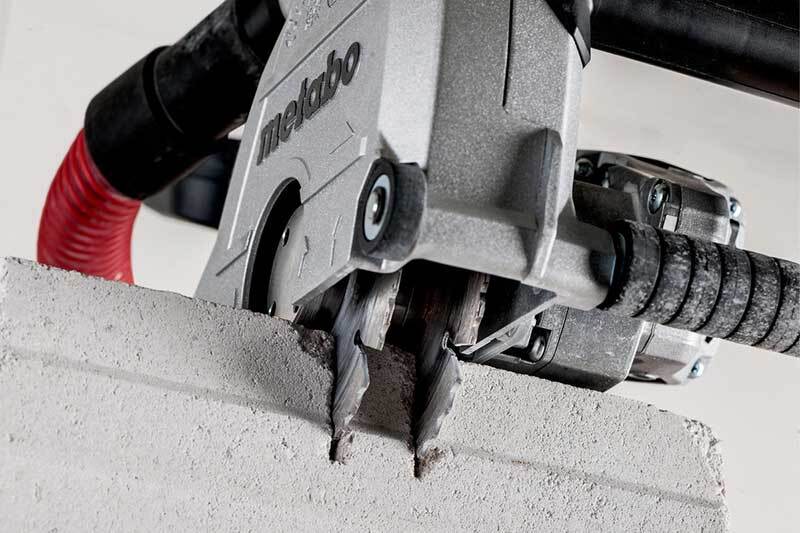

• Ideal for electric installations to lay cables and empty pipes under plaster with cutting depths up to 40 mm
• Maximum work progress by means of powerful motor, constant speed, and two-speed high-performance gear
• Robust aluminium die-cast hood with rubber rolls and optimal handle position for comfortable guiding of the machine
• Pushing cut for optimal view of the marking line
• Channel width and cutting depth can be set
• Metabo Marathon motor with patented dust protection for long service life
• Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
• Electronic soft start and restart protection for safe working
• LED signal informs about overload or active restart protection
• Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
• Suitable for slitting grooves up to a width of 30 mm without centre in one work step (with special accessories)
• Also suitable for cutting with only one diamond cutting disc
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Spacer Rings
• Face pin wrench
• Chase chisel
• Plastic carry case
• 2 Diamond cutting discs
• Flange nut

Technical Data

• Adjustable cutting depth: 10 - 40mm // 3/8 - 1 9/16"
• Possible groove widths: 9 / 15.5 / 22 / 28.5 / 35mm / 3/8 / 5/8 / 7/8 / 1 1/8 / 1 3/8"
• Cutting disc Ø: 125mm / 5"
• Rated input power: 1900W
• Weight (without power cable): 4.6kg / 10.1lbs

Characteristics

Adjustable cutting depth
10 - 40 mm // 3/8 - 1 9/16 "
Possible groove widths
9 / 15.5 / 22 / 28.5 / 35 mm / 3/8 / 5/8 / 7/8 / 1 1/8 / 1 3/8 "
Cutting disc √ò
125 mm / 5 "
Rated input power
1900 W
Output power
1120 W
No-load speed
5000 rpm
Revolutions at rated load
4200 rpm
Torque
6 Nm / 53 in-lbs
Weight (without power cable)
4.6 kg / 10.1 lbs
Cable length
4 m / 13 ft

Vibration

Vibration
5.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
93 dB(A)
Sound power level (LwA)
104 dB(A)
Uncertainty of measurement K
3 dB(A)
