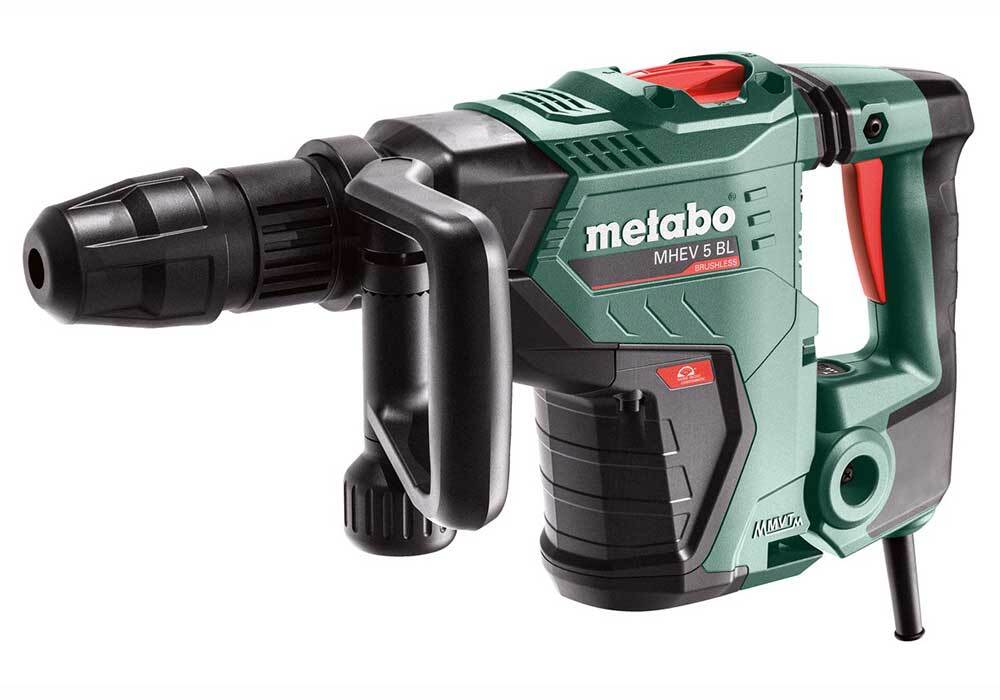

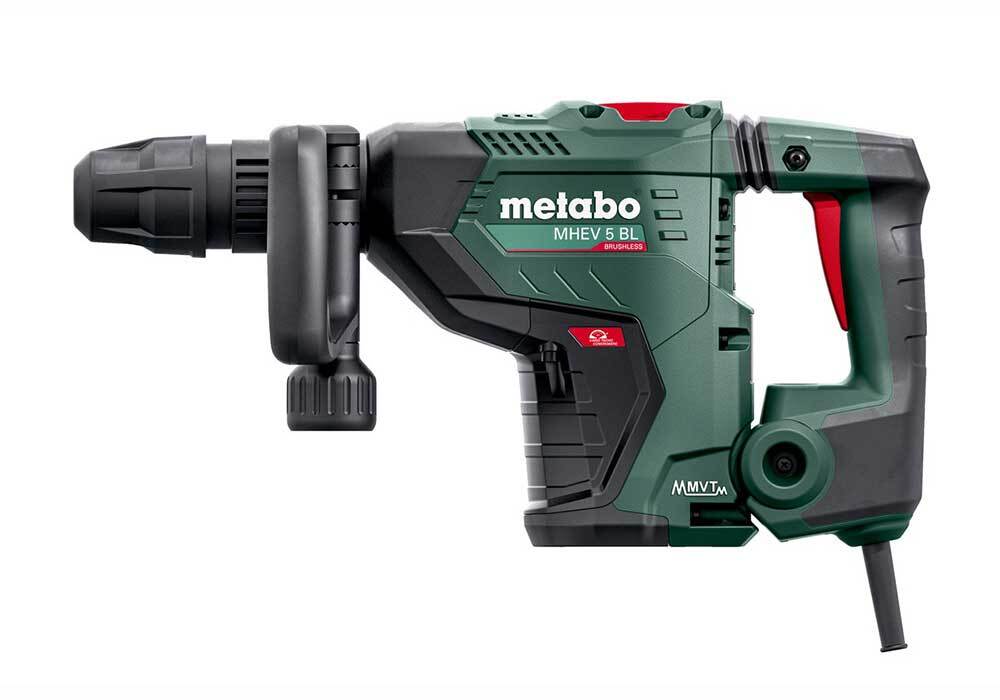

Metabo Chipping Hammer MHEV 5 BL (600769500)

• High breaking performance thanks to maintenance-free brushless motor and high-performance hammer action.
• Long service life thanks to brushless technology and robust aluminium die-cast housings of gear and motor.
• Metabo VibraTech (MVT) with double dampening: Decoupled handle and impact-absorbing counter-oscillating weight actively reduce vibrations for healthy working also in continuous use.
• Ergonomically shaped, slim gripping area with large speed control trigger for comfortable working.
• Easily accessible locking switch for chiselling in continuous mode.
• Optional reduction of the impact energy for working in softer materials.
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load.
• Electronic soft start for smooth start-up.
• Restart protection: prevents unintentional start-up after power supply interruption.
• Overload protection: protects the motor from overheating.
• The adjustable front handle can be rotated 360° and the angle adjusted for an optimum working position.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Side handle
• Duster
• Plastic carry case
• Front handle
• Lubricant for tool shank end

Technical Data

• Max. single blow energy (EPTA): 8.7J
• Maximum impact rate: 2900bpm
• Rated input power: 1150W
• Bit retainer: SDS-max

Characteristics

Max. single blow energy (EPTA)
8.7 J
Maximum impact rate
2900 bpm
Rated input power
1150 W
Bit retainer
SDS-max
Weight (without power cable)
7.9 kg / 17.4 lbs
Cable length
6 m / 236 7/32 "

Vibration

Chiseling
9.6 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
93 dB(A)
Sound power level (LwA)
104 dB(A)
Uncertainty of measurement K
3 dB(A)
