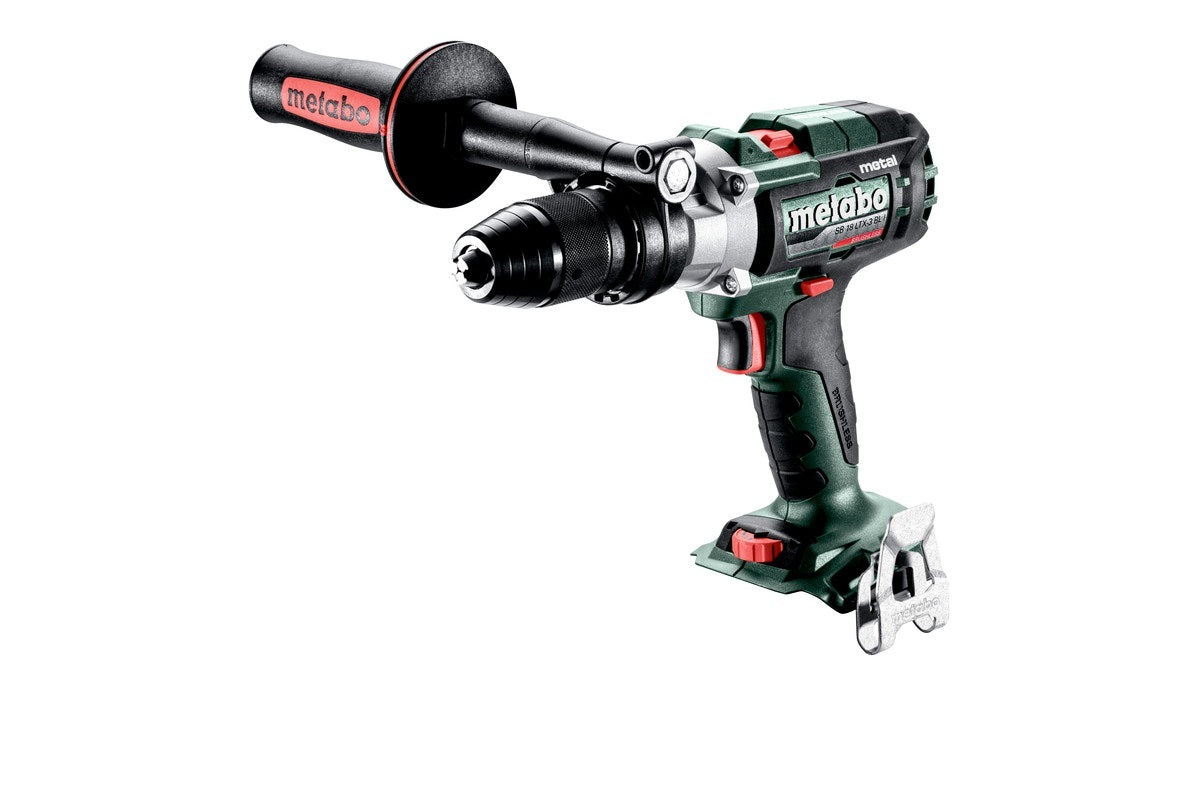

Metabo 18V Brushless Hammer Drill - 603183850

• Brushless 3-speed cordless hammer drill with maximum power, ideal for demanding metal applications.
• Extremely powerful chuck with re-tensioning function against slipping of the bit and a high degree of concentricity.
• Third speed setting with high torque (max. 4,000/min) for extended range of application and even faster drilling progress, especially in metal.
• Hammer drill function for drilling in masonry.
• Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces.
• Precision Stop: electronic torque control with increased precision for precise, delicate working.
• Overload protection: protects the motor from overheating.
• Electronic safety shutdown: no kickback if the drill bit stops unexpectedly - for high user safety.
• Integrated LED work light with night light function for optimal brightness in the work area.
• With a handy belt hook and bit case which can be fixed either on the right or left side.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the delivery scope and product description.
• Accessories are included only if listed in the contents.

Technical Data

Characteristic

Battery voltage
18 V
Maximum torque, soft
65 Nm / 575.3 in-lbs
Maximum torque, hard
130 Nm / 1150.6 in-lbs
Adjustable torque
1 - 18 Nm // 8.9 - 159.3 in-lbs
Drill-Ø masonry
16 mm / 5/8 "
Drill Ø steel
16 mm / 5/8 "
Drill-Ø soft wood
68 mm / 2.68 "
No-load speed
0 - 450 / 0 - 2000 / 0 - 4000 rpm
Maximum impact rate
38000 bpm
Chuck capacity
1.5 - 13 mm // 1/16 - 1/2 "
Weight without battery pack
2 kg / 4.4 lbs
Weight with battery pack
3 kg / 6.6 lbs

Vibration

Drilling in metal
3 m/s²
Uncertainty of measurement K
1.5 m/s²
Impact drilling concrete
25 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
98 dB(A)
Sound power level (LwA)
109 dB(A)
Uncertainty of measurement K
3 dB(A)

Contents

• Futuro Top keyless chuck
• without battery pack, without charger
• Side handle
• C-wrench
