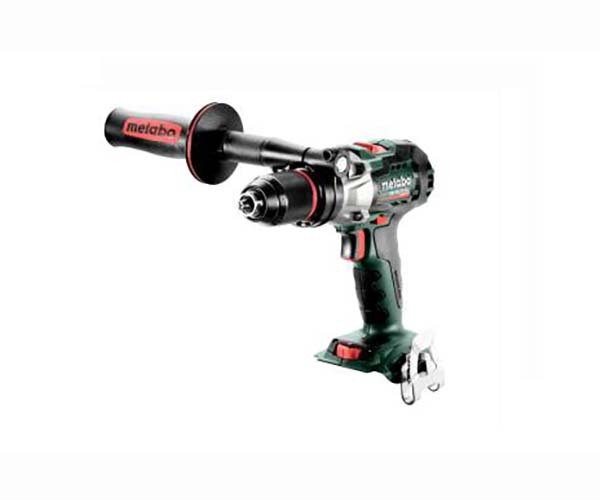

Metabo Cordless Hammer Drill

• Brushless hammer drill with maximum power for demanding applications.
• Hammer drill function for drilling in masonry.
• Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces.
• Precision Stop: electronic torque control with increased precision for precise, delicate working.
• Electronic safety shutdown: no kickback if the drill bit stops unexpectedly - for high user safety.
• Integrated LED work light with night light function for optimal brightness in the work area.
• With handy belt hook and bit case which can be fixed either on the right or left side.

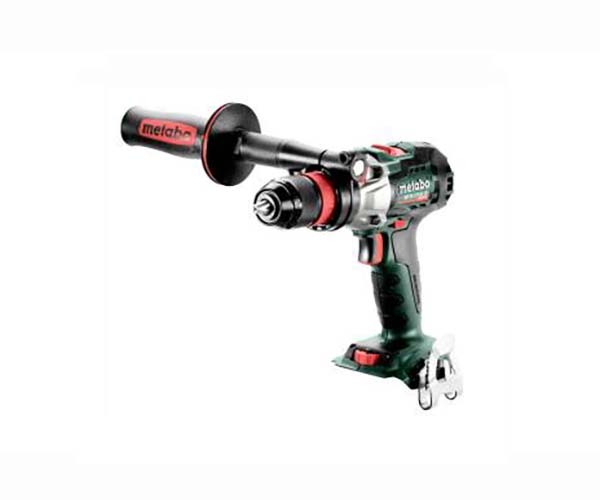

AboutQuick-change Chuck ( SB 18 LTX BL Q I)

• Metabo Quick System: quick change of bit retainer and bits, for flexible working.
• Overload protection: protects the motor from overheating.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Side handle
• Belt hook and bit case

Technical Data

• Battery voltage: 18 V
• Maximum torque - soft: 65 Nm / 575 in-lbs
• Maximum torque, hard: 130 Nm / 1151 ft. lbs
• Drill-Ø masonry: 16 mm / 5/8"
• Drill Ø steel: 13 mm / 1/2"
• Drill-Ø soft wood: 68 mm / 2.68"
• No-load speed: 0 - 550 / 0 - 2000 rpm

Characteristics

Type of battery pack
Li-Power
Battery voltage
18 V
Maximum torque - soft
65 Nm / 575 in-lbs
Pulse torque
65 Nm / 575 in-lbs
Maximum torque, hard
130 Nm / 1151 ft. lbs
Adjustable torque
1 - 20 Nm // 9 - 177 in-lbs
Drill-Ø masonry
16 mm / 5/8 "
Drill Ø steel
13 mm / 1/2 "
Drill-Ø soft wood
68 mm / 2.68 "
No-load speed
0 - 550 / 0 - 2000 rpm
Maximum impact rate
38000 bpm
Chuck capacity
1.5 - 13 mm // 1/16 - 1/2 "
Weight without battery pack
1.8 g / 4 lbs
Weight with battery pack
2.2 kg / 4.9 lbs

Vibration

Drilling in metal
2.6 m/s²
Uncertainty of measurement K
1.5 m/s²
Impact drilling concrete
16.5 m/s²
Uncertainty of measurement K
1.7 m/s²

Noise emission

Sound pressure level
92 dB(A)
Sound power level (LwA)
103 dB(A)
Uncertainty of measurement K
3 dB(A)
