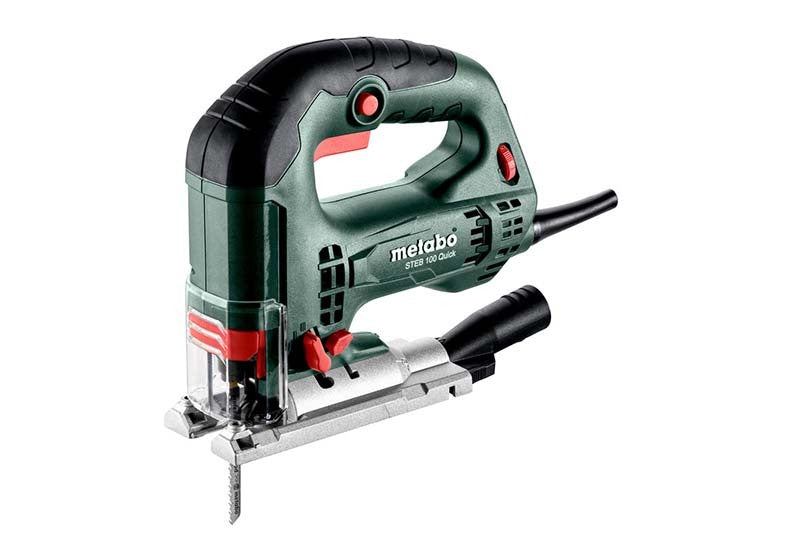

Metabo STEB 100 QUICK Universal Jigsaw W/ Bow Type Handle - 601110500
Regular price
$320.54
Sale price
$320.54
Regular price
Inc. GST
Available
The Metabo STEB 100 Quick (order number 601110500) is a universal jigsaw with a bow-type handle and a rated input power of 710W. It has a cutting depth of 100mm in wood, 25mm in NF metal and 10mm in sheet steel.
It has a saw blade stroke of 22mm and 4 pendulum stroke levels.
Where this product is used
- Cutting wood to a depth of 100mm
- Cutting NF metal to a depth of 25mm
- Cutting sheet steel to a depth of 10mm
- Cuts at angles within a swivel range of -45 to +45°
Features
- Bow-type handle for guidance while sawing
- Variable stroke rate, pendulum stroke and low-lying saw blade guidance with spring support
- Metabo Quick for tool-free saw blade change, with automatic ejection
- Top handle with non-slip soft-grip surface
- Selectable chip blowing function for a free view of the cutting line
- Vario-Tacho-Constamatic (VTC) full wave electronics keep stroke rate almost constant under load
- Extraction by connecting an all-purpose vacuum cleaner
- Non-detachable protective glass that can be pushed down for extraction and protection against flying chips
- Precision guide rail and guiding device available as accessories
Key specifications
| Specification | Detail |
|---|---|
| Brand | Metabo |
| Model | STEB 100 Quick |
| Order number | 601110500 |
| Product type | Jigsaw |
| EAN | 4061792226296 |
| Rated input power | 710W |
| Output power | 470W |
| Cutting depth, wood | 100mm |
| Cutting depth, NF metal | 25mm |
| Cutting depth, sheet steel | 10mm |
| Swivel range | -45 to +45° |
| Pendulum stroke levels | 4 |
| Strokes in idle | 1000-3100rpm |
| Saw blade stroke | 22mm |
| Weight (without power cable) | 2.1kg |
| Cable length | 4m |
| Vibration, sawing wood | 13 m/s² (K 1.5 m/s²) |
| Vibration, sawing metal | 13.7 m/s² (K 1.5 m/s²) |
| Sound pressure level | 89 dB(A) |
| Sound power level (LwA) | 97 dB(A) |
| Noise measurement uncertainty K | 5 dB(A) |
Supplied with
- Extraction nozzles
- Protective glass
- Chip guard plates
- Jigsaw blade wood
- Hexagonal wrench
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Metabo STEB 100 QUICK Universal Jigsaw W/ Bow Type Handle - 601110500
SKU: A0201465 | Model: 601110500
This is the Metabo STEB 100 Quick jigsaw, order number 601110500. It has a weight of 2.1kg without the power cable.
