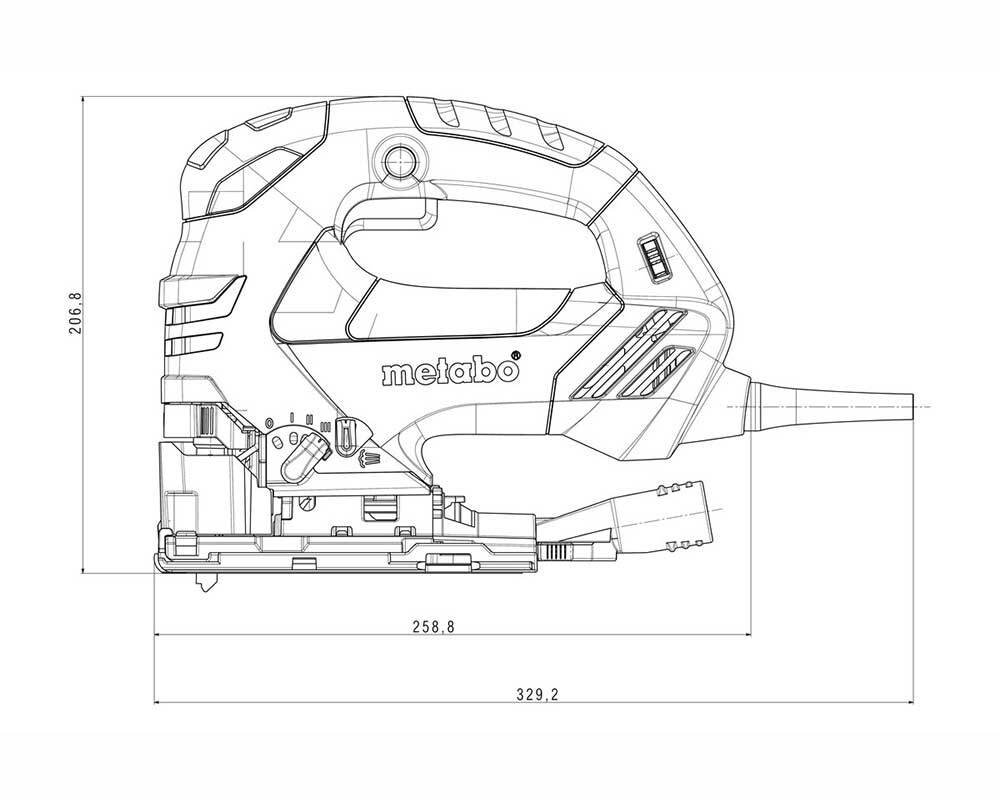

Metabo STEB 140 Plus D-Handle Jigsaw

• Extremely powerful jigsaw with VTC-Electronics for fast cuts into soft wood of up to 140 mm deep
• Precise and material-matched sawing due to the variable stroke rate, pendulum stroke and low-lying saw blade guidance with spring support
• Metabo Quick for tool-free saw blade change and with automatic ejection
• Convenient auto start with automatic stroke rate acceleration
• Simple bevel cuts thanks to footplate with rest points that can be adjusted without tools
• Selectable chip blowing function ensures free view of cutting line
• Motion-controlled LED work light for optimum illumination of the cutting line
• Vario Tacho Constamatic (VTC) Full-wave Electronics for work with materials requiring customised stroke rates, which remain constant under load
• Restart protection: prevents unintentional start-up after power supply interruption
• Long service life thanks to optimum gear and motor design and robust die-cast aluminium gear housing
• With metaBOX, the intelligent solution for transport and storage

Contents

• Extraction Nozzles
• Protective glass
• Plastic guard plate
• Chip Guard Plates
• metaBOX 145

Technical Data/Characteristics

Rated input power
750 W
Output power
420 W
Cutting depth wood
140 mm / 5 1/2 "
Cutting depth NF metal
35 mm / 1 3/8 "
Cutting depth sheet steel
10 mm / 3/8 "
Swivel range from/to:
- 45 / + 45 °
Pendulum stroke levels
4
Strokes in idle
1000 - 3100 rpm
Saw blade stroke
26 mm / 1 1/32 "
Weight (without power cable)
2.6 kg / 5.7 lbs
Cable length
4 m / 13 ft

Vibration

Sawing wood
10.4 m/s²
Uncertainty of measurement K
1.5 m/s²
Sawing metal
8.4 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
90 dB(A)
Sound power level (LwA)
101 dB(A)
Uncertainty of measurement K
3 dB(A)
