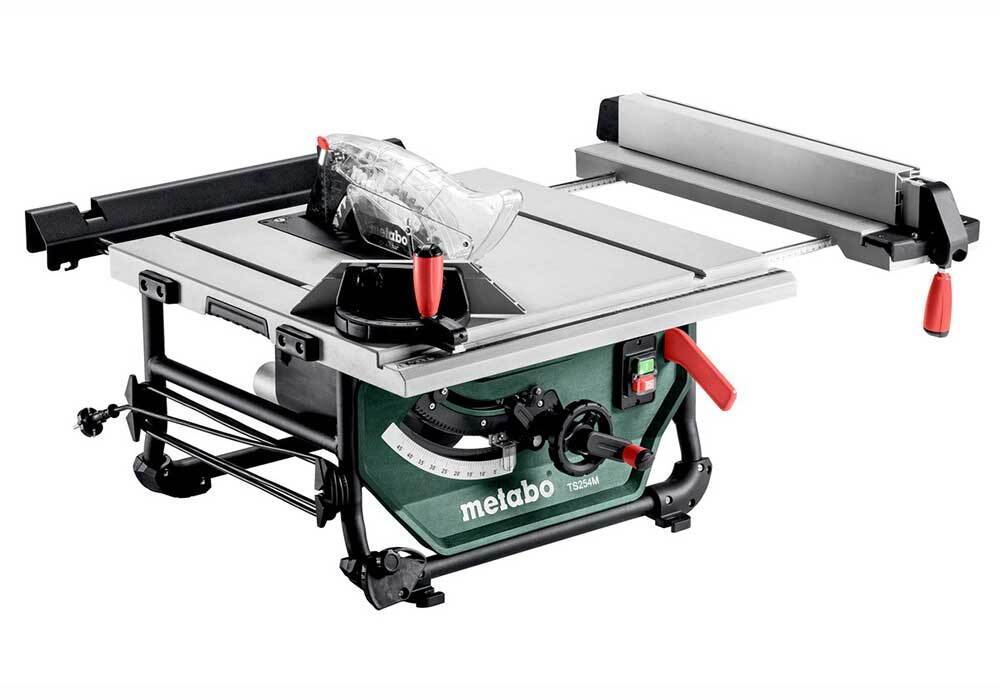

Metabo Table Saw - TS 254 M (610254190)

• Compact mobile table saw with impressive cutting performance and high comfort for working.
• Anti-twist tubular frame construction for the highest demands on the building site and during installations.
• Cables and all add-on components for transport can be stored on the casing.
• Powerful motor with electronic overload protection.
• Motor brake for quick stop of the saw blade in 3 seconds.
• Restart protection: prevents unintentional start-up after a power supply interruption.
• Soft start for the long service life of motor and drive.
• Precisely adjustable rip fence with double clamping and quick fastening.
• Precise saw blade inclination via gear guide.
• Automatic resetting to 0 – 45 ° after undercuts.
• Easy saw blade change with spindle lock.
• Splitting wedge can be lowered without tools for hidden cuts and transport.
• Precise, extendable table width extension for extra large working surfaces.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Carbide saw blade with alternately bevel-ground tips (40 teeth)
• Table Length Extension
• Table width extension (right)
• Push stick
• Rip Fence
• Mitre Fence

Technical Data

• Maximum cutting height 90/45°: 80 / 48 mm // 3.15 / 1.87"
• Maximum cutting width at rip fence: 520 mm / 20.46"
• Saw blade: 254 x 30 mm // 10 x 1.181"

Characteristics

Dimensions
669 x 748 x 334 mm // 26.343 x 29.437 x 13.156 "
Working height
334 mm // 13.15 "
Cutting height
0 - 80 mm // 0 - 3.15 "
Maximum cutting height 90/45°
80 / 48 mm // 3.15 / 1.87 "
Maximum cutting width at rip fence
520 mm / 20.46 "
Maximum material width at mitre fence
195 mm / 7.68 "
No-load speed
4200 rpm
Cutting speed
56 m/s / 184 ft/s
Saw blade
254 x 30 mm // 10 x 1.181 "
Saw blade swivel range
-1.5 - 46.5 °
Rated input power S1 100%
1500 W
Weight
24.4 kg / 54 lbs

Noise Emission

Sound pressure level
92 dB(A)
Sound power level (LwA)
105 dB(A)
Uncertainty of measurement K
3 dB(A)
