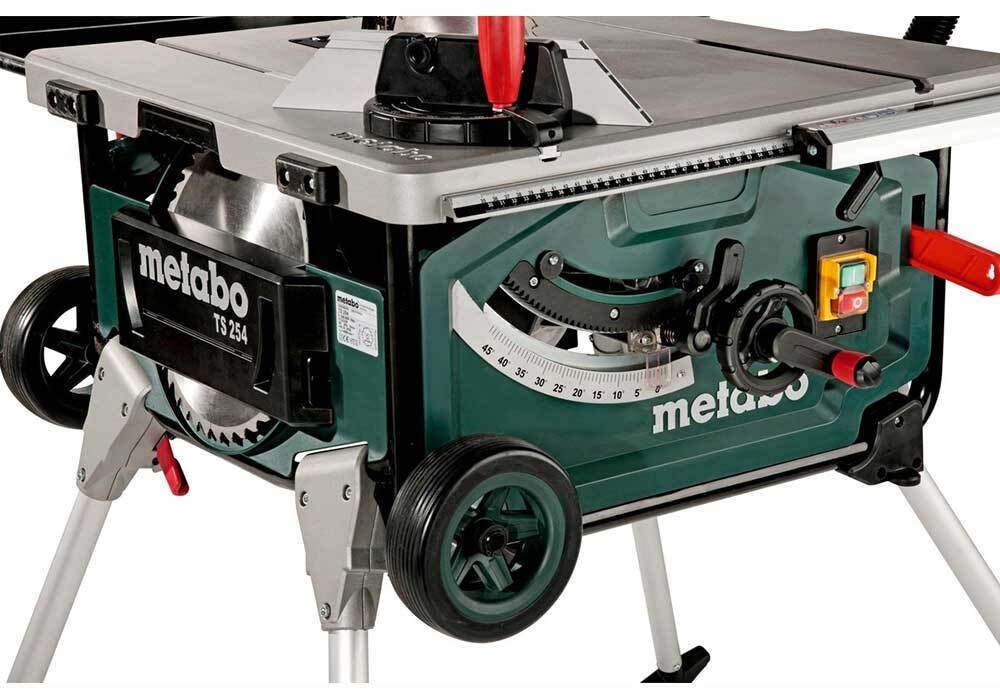

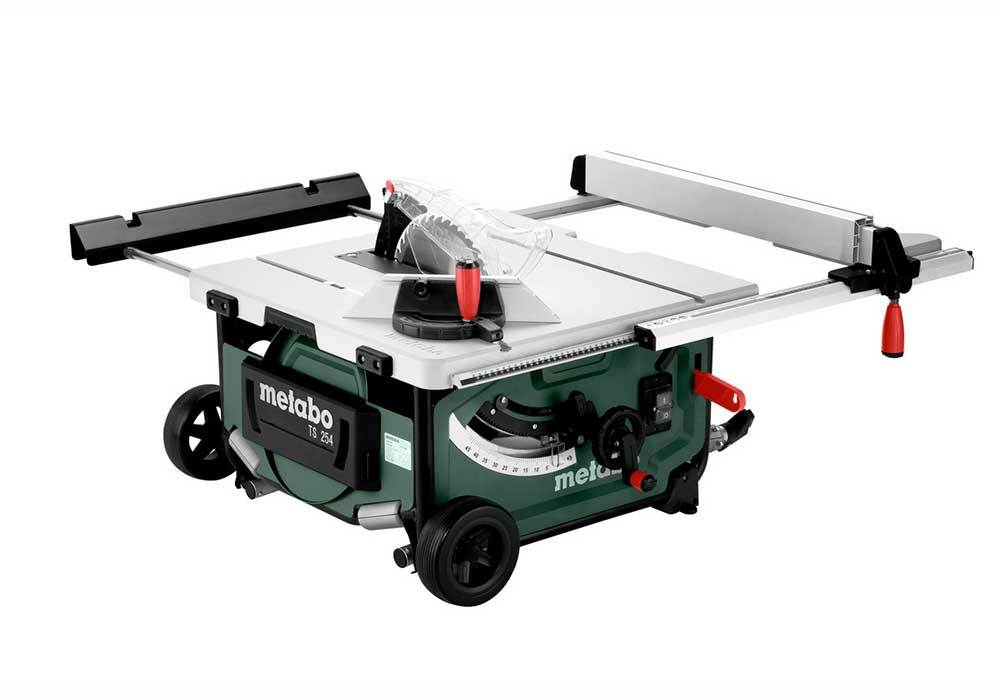

Metabo Table Saw - TS 254 (600668190)

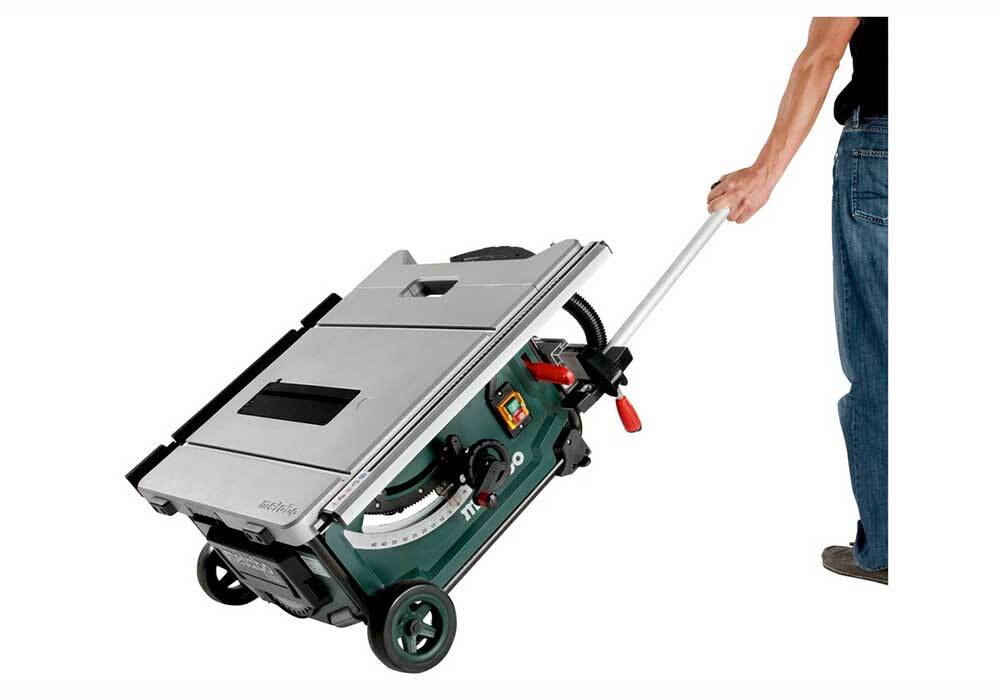

• Extremely light table saw with trolley function for more mobility on the construction site.

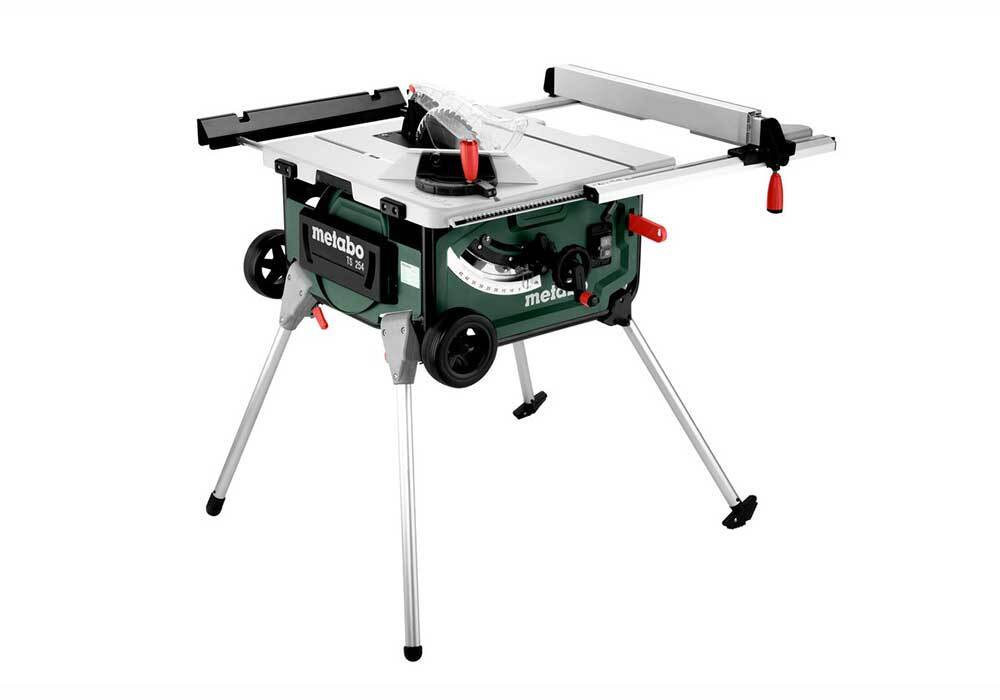

• Integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with secure stand.
• Very compact with folded stand for comfortable transport and space-saving storage.
• Second working height for working near ground level.
• Anti-twist tubular frame construction for the highest demands on the building site and during installations.
• Cables and all add-on components for transport can be stored on the casing.
• Powerful motor with electronic overload protection.
• Motor brake for quick stop of the saw blade in 3 seconds.
• Restart protection: prevents unintentional start-up after a power supply interruption.
• Soft start for the long service life of motor and drive.
• Precise rip fence with double clamping and quick fastening.
• Precise saw blade inclination via gear guide.
• Automatic resetting to 0 – 45 ° after undercuts.
• Easy saw blade change with spindle lock.
• Splitting wedge can be lowered without tools for hidden cuts and transport.
• Precise, extendable table width extension for extra large working surfaces.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Carbide saw blade with alternately bevel-ground tips (40 teeth)
• Rip Fence
• Mitre Fence
• Table Length Extension
• Table width extension (right)
• Saw blade case
• Push stick
• Stand
• Hard rubber tyres

Technical Data

• Maximum cutting height 90/45°: 87 / 54 mm // 3 7/16 / 2"
• Maximum cutting width at rip fence: 630 mm / 24 3/4"
• Saw blade: 254 x 30 mm // 10 x 1.181"
• Rated input power: 2000W

Characteristics

Dimensions
740 x 750 x 355 mm // 2.5 x 2.5 x 1.2 ft
Max. support surface
970 x 995 mm // 38 3/16 x 39 3/16 "
Working height
850 / 355 mm // 33 1/2 / 14 "
Cutting height
0 - 87 mm // 0 - 3 3/8 "
Maximum cutting height 90/45°
87 / 54 mm // 3 7/16 / 2 "
Maximum cutting width at rip fence
630 mm / 24 3/4 "
Maximum material width at mitre fence
200 mm / 7 7/8 "
No-load speed
4200 rpm
Cutting speed
56 m/s / 184 ft/s
Saw blade
254 x 30 mm // 10 x 1.181 "
Saw blade swivel range
-1.5 - 46.5 °
Mains voltage
220 - 240 V
Rated input power
2000 W
Rated input power S1 100%
1700 W
Rated input power S6 20%
2000 W
Weight
33.4 kg / 73.6 lbs
Cable length
3.1 m / 10 ft

Noise Emission

Sound pressure level
99 dB(A)
Sound power level (LwA)
112 dB(A)
Uncertainty of measurement K
3 dB(A)
