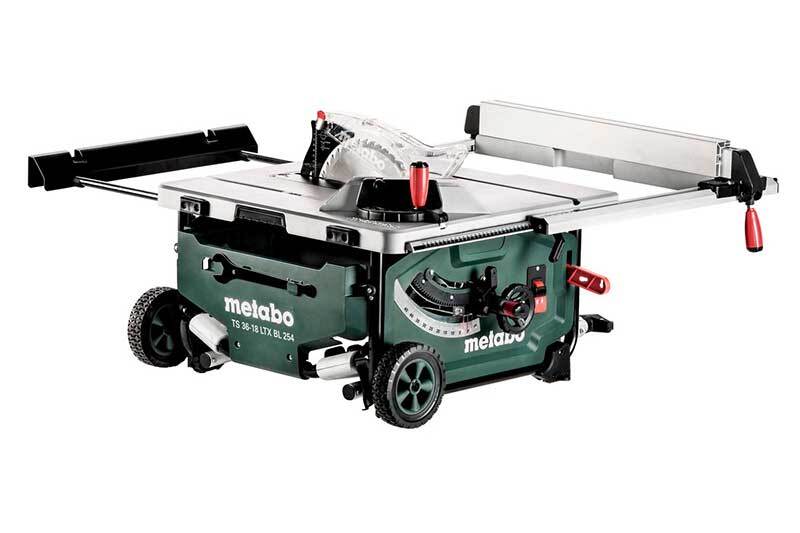

Metabo TS 36-18 LTX BL 254 Cordless Table Saw

• Extremely light cordless table saw with trolley function for maximum mobility.
• Powerful Brushless motor for powerful sawing like with a mains-powered tool
• 100% compatibility with the 18 Volt class: powerful 36 Volt operation with two 18 Volt battery packs from Metabo.
• Integrated extraction with dust cyclone for low-dust working without a vacuum cleaner.

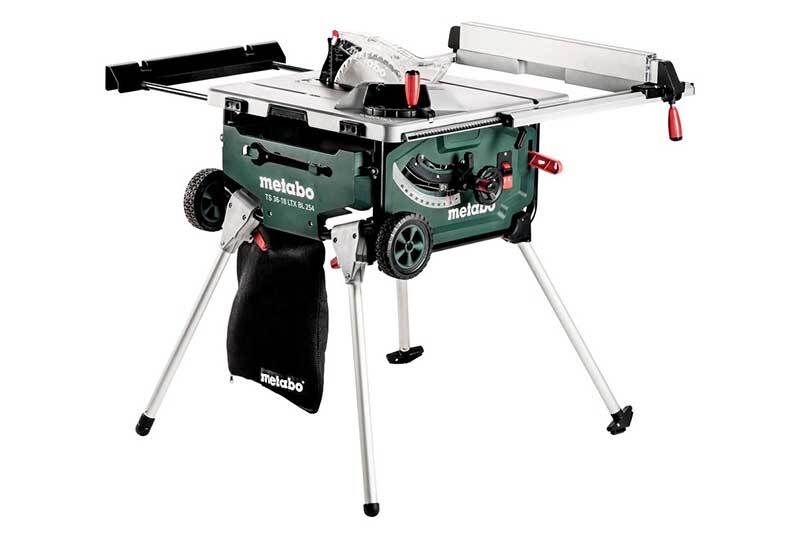

• Quick change between sawing at ground-level or when standing up thanks to the integrated, folding stand.
• Precise saw blade inclination via gear guide.
• Precisely adjustable rip fence with double clamping and quick fastening.
• Extra-large support surface thanks to table width extension and table length extension.
• Soft start and overload protection for the long service life of motor and drive.
• Safe working thanks to restarting protection and motor brake for quick stop of the saw blade.
• Splitting wedge can be lowered without tools for hidden cuts and transport.
• All attachments can be fixed at the housing for compact transport and storage.
• Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Carbide saw blade with alternately bevel-ground tips (40 teeth)
• Rip Fence
• Mitre Fence
• Table Length Extension
• Table Width Extension
• Push stick
• Dust cycles
• Textile dust bag
• without battery pack, without charger
• Stand
• Rubber tyres

Technical Data

• Battery voltage: 18V
• No-load speed: 5000rpm
• Saw blade: 254 x 30mm

Characteristics

Battery voltage
18 V
Max. support surface
970 x 995 mm
Working height
850 / 355 mm
Cutting height
0 - 87 mm
Maximum cutting height 90/45°
87 / 50 mm
Maximum cutting width at rip fence
630 mm
Maximum material width at mitre fence
200 mm
No-load speed
5000 rpm
Max. cutting speed
66 m/s
Saw blade
254 x 30 mm
Saw blade swivel range
-1.5 - 46.5 °
Weight without battery pack
33 kg / 72.8 lbs
Weight with battery pack
34.4 kg / 75.8 lbs

Noise Emission

Sound pressure level
90 dB(A)
Sound power level (LwA)
103 dB(A)
Uncertainty of measurement K
3 dB(A
