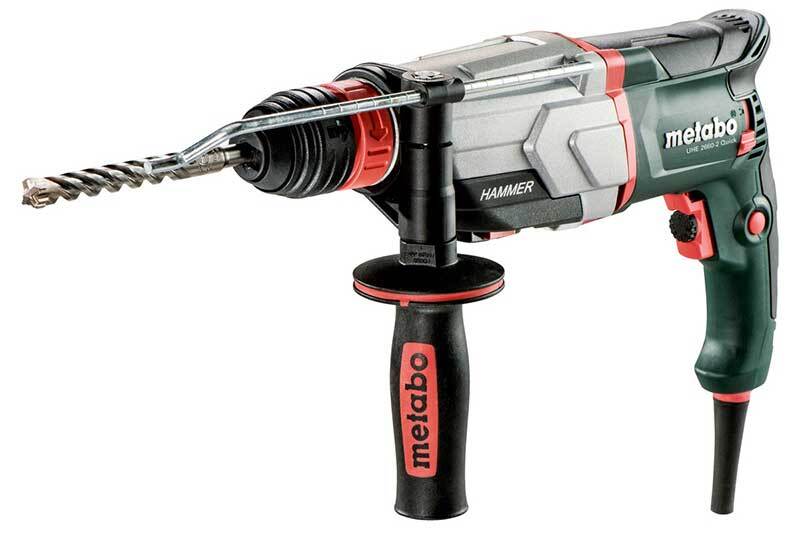

***Drill bit not included. The image is for illustration purposes only.***

Metabo UHE 2660-2 QUICK Multi Hammer - 600697500

• Multi hammer with 4 functions: hammer drilling, drilling without impact at two speeds, and chiseling.
• Metabo Quick: quick change between SDS Plus hammer chuck and keyless chuck for drilling in wood and metal.
• Vario (V)-Electronics for working at customised speeds to suit various application materials.
• Thumbwheel for preselection of the speed and impact rate.
• Two-speed gear unit: two drilling speeds for effective drilling in wood and metal.
• Metabo Marathon-motor with dust protection for long service life.
• High-performance hammer action precisely mounted in a housing made of aluminium alloy: long-lasting and robust.
• Perfect ergonomics thanks to the centre of gravity being near the hand and optimized handle contour.
• The bottom switch is protected against damage and dust.
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly.
• Lockable switch for comfortable working in continuous operation.
• Cable-protecting ball joint for optimal freedom of motion when working.
• With metaBOX, the intelligent solution for transport and storage.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Hammer chuck for tools with SDS-plus shank end
• Drilling depth guide
• metaBOX 145 L
• Keyless chuck for tools with cylindrical shank
• rubber-coated side handle

Technical Data

• Max. single blow energy (EPTA): 2.8J
• Maximum impact rate: 4200bpm
• Rated input power: 800W
• Drill-Ø concrete with hammer drills: 26mm / 1 1/32"
• Bit retainer: SDS-plus

Characteristics

Max. single blow energy (EPTA)
2.8 J
Maximum impact rate
4200 bpm
Rated input power
800 W
Drill-Ø concrete with hammer drills
26 mm / 1 1/32 "
Drill-Ø masonry with core bits
68 mm / 2 11/16 "
Drill Ø steel
13 / 6 mm // 1/2 / 1/4 "
Drill-Ø soft wood
32 / 28 mm // 1 1/4 / 1 3/32 "
No-load speed
0 - 1050 / 0 - 2500 rpm
Revolutions at rated load
790 / 1860 rpm
Bit retainer
SDS-plus
Collar diameter
50 mm / 1 31/32 "
Weight (without power cable)
3.1 kg / 6.9 lbs
Cable length
4 m / 13 ft

Vibration

Drilling in metal
3.3 m/s²
Uncertainty of measurement K
1.5 m/s²
Hammer drilling concrete
12.9 m/s²
Uncertainty of measurement K
2.4 m/s²
Chiseling
8.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
88 dB(A)
Sound power level (LwA)
99 dB(A)
Uncertainty of measurement K
3 dB(A)
