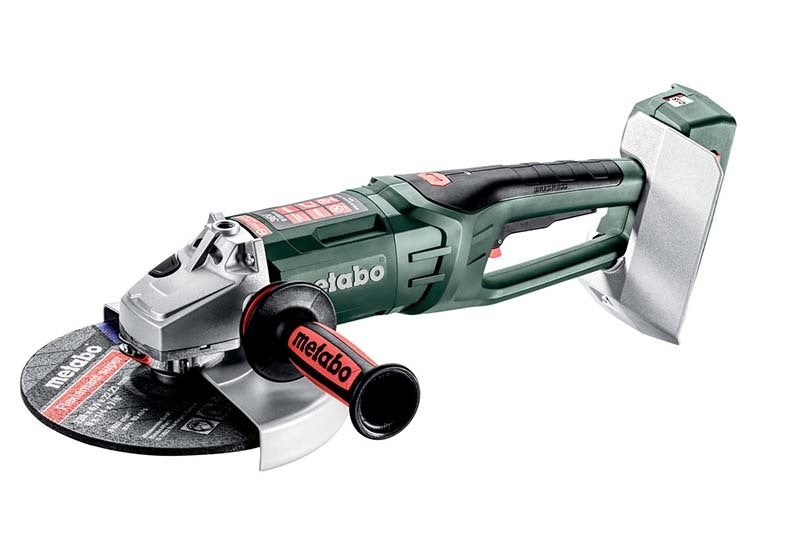

Metabo Cordless Angle Grinder - 613103840

• Large, powerful cordless angle grinder (Ø 230 mm) for powerful cutting and roughing independent from the mains power.
• 100% compatibility with the 18 Volt class: powerful 36 Volt operation with two 18 Volt battery packs from Metabo.
• Widest range of application thanks to extremely large cutting depth of 77 mm.
• Unique encapsulated Metabo brushless motor with optimum protection from dust provides quick work progress and the highest efficiency.
• Deadman's switch for high user safety.
• Fast brake system for highest user safety stops the disc within a matter of seconds after switching off.
• Metabo Quick for tool-free disc change by means of a quick-locking nut.
• Tool-free adjustable guard; twist-proof.
• Rotating main handle: high safety and better handling when cutting.
• Metabo VibraTech (MVT) side handle for vibration damping to protect the user's health.
• Side handle can be mounted in three positions.
• Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety.
• Electronic overload protection, soft start, and restart protection.
• LiHD battery pack for ultimate performance, extremely long runtime, and service life.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Guard
• Metabo VibraTech (MVT) side handle
• Plastic carry case
• Inner support flange
• Quick-locking nut

Technical Data

Characteristic

Battery voltage
18 V
Disc-Ø
230 mm / 9 "
Max. cutting depth
79 mm / 3.11 "
No-load speed
6600 rpm
Spindle thread
M14
Handle circumference
140 mm / 5.512 "
Weight without battery pack
4.6 kg
Weight with battery pack
6.5 kg

Vibration

Surface grinding
9.8 m/s²
Uncertainty of measurement K
1.5 m/s²
Grinding with sandpaper
3.8 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
94 dB(A)
Sound power level (LwA)
102 dB(A)
Uncertainty of measurement K
3 dB(A)
