M6 Four-Prong Tee Nut, 304 Stainless Steel - TNUA2M6

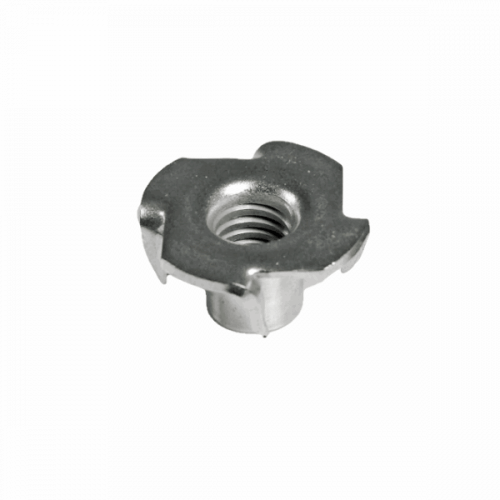

Made in 304 (A2) stainless steel, the Metric 4 Prong Tee Nut is a flanged nut with four prongs that bite into the back of timber or board. It provides a machine thread in wood.

This listing has 3 variants covering sizes M6 to M10. Every size comes in packs of 100.

A2 stainless (grade 304) gives sound general corrosion resistance for inside work, fresh water and ordinary outdoor exposure. It is not the grade normally chosen for coastal, pool or marine work, where A4 (316) is recommended. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.

Where this product is used

• Furniture, climbing holds and timber fittings
• Indoor architectural and joinery work
• Woodwork jigs and fixtures
• General workshop and maintenance use

Features

• Provides a machine thread in wood
• Range covers M6 to M10 in 3 variants
• A2 (304) stainless steel for indoor, fresh water and general outdoor use
• Four prongs bite into timber to stop the nut turning
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
• Supplied in packs of 100

Key specifications

Selecting the right option

Drill the hole to the barrel diameter, then drive the prongs into the back of the board with a hammer or a clamp. Choose the thread system and size to match the bolt.

Related products

Other versions in this range: UNC 4 Prong Tee Nut - 304 Stainless Steel.
