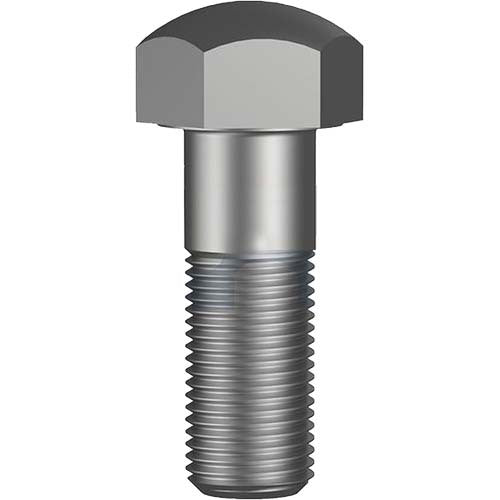

M16 x 55mm Fine Dome Hex Track Bolt Grade 9 Plain
Available
The Metric Fine Dome Hex Track Bolt Grade 9 Plain is a dependable hex bolt from Hobson — Australia's leading fastener specialist.
Where this product is used
Hobson hex bolts are a staple of heavy industry, used wherever a strong, reliable threaded connection is required.
- Structural steel fabrication and beam connections
- Plant and machinery assembly
- Civil and infrastructure projects
Key specifications
| Thread Standard | Metric |
| Grade / Class | Grade 9 |
| Finish | Plain |
Selecting the right option
Choose your Hobson hex bolt by thread standard (Metric, BSW, UNC, UNF), grade or class (4.6 for general structural, 8.8 for high-tensile, 10.9 and 12.9 for critical joints), and finish (zinc plated for general use, hot-dip galvanised for outdoor and wet environments). Match the diameter and length to your design load and joint thickness. Contact the AIMS team if you need help selecting to an AS/NZS standard or engineer specification.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
M16 / 46mm bolt
Model Number: CBTG9DFM160046
-
M16 / 55mm bolt
Model Number: CBTG9DFM160055
-
M18 / 58mm bolt
Model Number: CBTG9DFM180058
-
M20 / 55mm bolt
Model Number: CBTG9DFM200055
-
M20 / 63mm bolt
Model Number: CBTG9DFM200063
-
M20 / 70mm bolt
Model Number: CBTG9DFM200070
-
M22 / 67mm bolt
Model Number: CBTG9DFM220067
-
M27 / 90mm bolt
Model Number: CBTG9DFM270090
