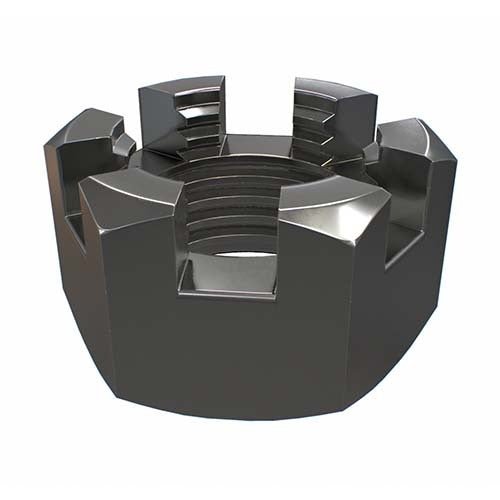

Hobson Metric Fine Slotted Hex Nut, M8
The price shown is for the pack.
Available
There are 6 Hobson metric fine slotted hex nuts (metric fine pitch thread, Class 5, zinc plated finish): M8 to M24. A slotted hex nut has slots cut across one face, so that a split pin can pass through a hole in the bolt and through the slots. These nuts are Class 5.
The pitch is part of each size name (for example M12 x 1.25mm), so check it as well as the diameter.
Where this product is used
- Used with a split pin through a hole in the bolt, where a slotted nut is specified
- Fastening onto a bolt or stud of the same thread form, diameter and pitch
Features
- 6 sizes: M8 to M24
- Metric fine pitch thread, slotted hex nut
- Class 5, zinc plated finish
- Pack quantity shown for each item
Key specifications
| Specification | Detail |
|---|---|
| Brand | Hobson |
| Nut type | Slotted hex nut |
| Sizes | M8 to M24 |
| Thread | Metric fine |
| Class | 5 |
| Finish | Zinc plated |
Choosing the right option
Match the nut to the bolt, stud or rod: thread form, diameter and pitch must all agree. The pitch is part of the size name, so check it as well as the diameter. Choose the class or grade to suit the bolt you are fastening, and confirm the pairing with your specification if the joint is load-critical.
Related nuts: Hobson Metric Fine Hex Nut, Class 10, Zinc Plated, M12 and M30, Hobson Metric Fine Hex Nut, Class 8, Zinc Plated, M12 to M36 and Hobson Metric Fine Hex Nut, Class 10, Zinc Plated, M12 to M30.
| Option | Part number | SKU |
|---|---|---|
| M8 | NO05ZFM08 | A0138547 |
| M10 | NO05ZFM10 | A0138548 |
| M12 | NO05ZFM12 | A0138549 |
| M16 | NO05ZFM16 | A0138550 |
| M20 | NO05ZFM20 | A0138551 |
| M24 | NO05ZFM24 | A0138552 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hobson Metric Fine Slotted Hex Nut, Class 5, Zinc Plated, M8 to M24: M8
SKU: A0138547 | Model: NO05ZFM08
Hobson NO05ZFM08: M8 x 1mm metric fine slotted hex nut, Class 5, zinc plated. Pitch 1mm. Pack of 50.
