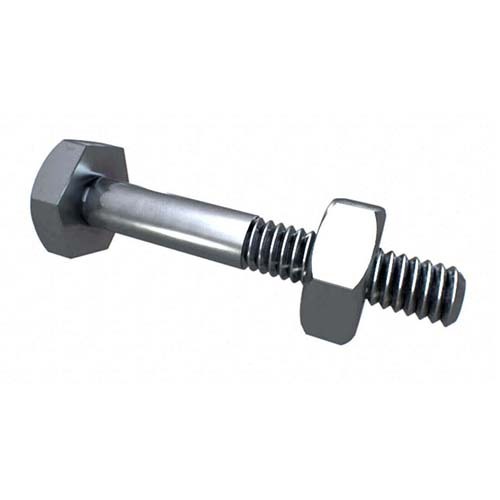

Hobson Metric Hex Bolt and Nut, M6 / 55
The price shown is for the pack.
Available
The Hobson metric hex bolt and nut range has 22 items in class 8.8, zinc plated finish: sizes M6 to M24, with lengths from 16mm to 250mm. Class 8.8 is high tensile, and corresponds to imperial grade 5. ZP means zinc, usually referencing zinc plating (zinc with clear chromate).
Where this product is used
- Bolt and nut sets for joining parts through a clearance hole
- Hex head tightened with a spanner or socket
- Choose length and thread form to suit the parts being joined
Features
- 8 sizes: M6 to M24
- Class 8.8, Zinc plated finish
- Lengths from 16mm to 250mm
- Pack quantity and part number for every item
- Proof load and minimum tensile strength
- Spanner size (A/F) by size
Key specifications
| Specification | Detail |
|---|---|
| Brand | Hobson |
| Sizes | M6 to M24 |
| Thread | Metric |
| Strength class | Class 8.8 |
| Finish | Zinc plated |
| Contents | Bolt and nut |
| Lengths | 16mm to 250mm |
Choosing the right option
Choose the thread form first: the nut must match the bolt in thread form, diameter and pitch. Length is measured from under the head to the end of the bolt. For the bolt on its own: see Hobson Metric Hex Bolt, Class 8.8, Zinc Plated, M14 x 120mm, Pack of 15.
Related hex bolts: Hobson Metric Hex Bolt and Nut, Class 8.8, Plain, M6 to M36 x 16 to 300mm, Hobson Metric Hex Bolt and Nut, Class 8.8, Hot Dip Galvanised, M8 to M16 x 20 to 50mm and Hobson Metric Hex Bolt and Nut, Class 8.8, Plain, M6 to M36 x 60 to 400mm.
| Option | Part number | SKU |
|---|---|---|
| M6 / 55 | KBH88ZCM060055 | A0135098 |
| M8 / 55 | KBH88ZCM080055 | A0135099 |
| M10 / 16 | KBH88ZCM100016 | A0135100 |
| M12 / 85 | KBH88ZCM120085 | A0135101 |
| M14 / 25 | KBH88ZCM140025 | A0135102 |
| M14 / 30 | KBH88ZCM140030 | A0135103 |
| M14 / 45 | KBH88ZCM140045 | A0135104 |
| M14 / 60 | KBH88ZCM140060 | A0135105 |
| M14 / 65 | KBH88ZCM140065 | A0135106 |
| M14 / 80 | KBH88ZCM140080 | A0135107 |
| M14 / 100 | KBH88ZCM140100 | A0135108 |
| M16 / 85 | KBH88ZCM160085 | A0135109 |
| M18 / 40 | KBH88ZCM180040 | A0135110 |
| M18 / 60 | KBH88ZCM180060 | A0135111 |
| M18 / 70 | KBH88ZCM180070 | A0135112 |
| M18 / 80 | KBH88ZCM180080 | A0135113 |
| M18 / 90 | KBH88ZCM180090 | A0135114 |
| M18 / 100 | KBH88ZCM180100 | A0135115 |
| M24 / 85 | KBH88ZCM240085 | A0135116 |
| M24 / 220 | KBH88ZCM240220 | A0135117 |
| M24 / 240 | KBH88ZCM240240 | A0135118 |
| M24 / 250 | KBH88ZCM240250 | A0135119 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hobson Metric Hex Bolt and Nut, Class 8.8, Zinc Plated, M6 to M24 x 16 to 250mm: M6 / 55
SKU: A0135098 | Model: KBH88ZCM060055
Hobson KBH88ZCM060055: M6 x 55mm metric hex bolt and nut, class 8.8, zinc plated finish. Pack of 150. Thread length 18mm.
