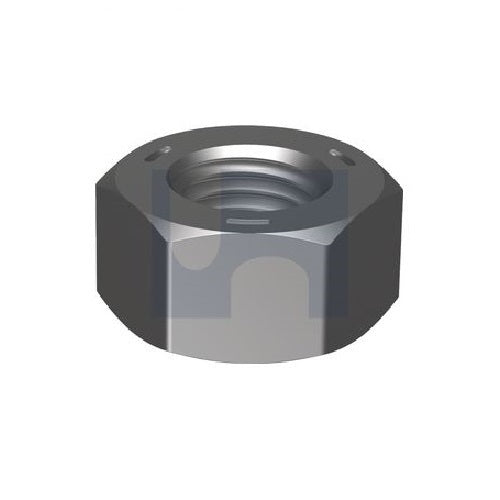

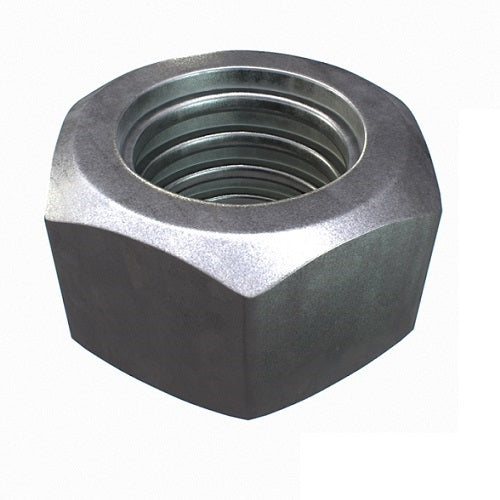

Bremick Metric Hex Nut, M8

A hex nut is the standard six-sided nut. It is turned with a spanner or socket onto a bolt, stud or threaded rod of the same thread form, diameter and pitch. There are 4 Bremick metric hex nut items (metric thread, Class 8, high tensile steel, hot dip galvanised finish): M8 to M16.

Pitch is the coarse pitch for each diameter. Check the pitch of your bolt. The class for each item is shown in the table. The pack or box quantity for each item is shown in the table. It changes with the size.

Where this product is used

• Fitting to bolts and studs, and to threaded rod cut to length
• Securing bolted joints in fabrication, maintenance and repair
• Machinery mounting and frame assembly using studs
• Outdoor and long-term exposure, including structural steelwork, roofing and fencing
• Choosing between the 4 items here: they cover diameters from M8 to M16

Features

• 4 items: M8 to M16
• Metric thread, hex nut
• Class 8, high tensile steel, hot dip galvanised finish
• Pack quantity shown for each item
• AS 1112.1 named for the items the stock list covers
• Hot dip galvanised: suited to long-term outdoor exposure
• High tensile steel construction

Key specifications

Choosing the finish

A hot dip galvanised finish is a heavy zinc coating made for outdoor and long-term exposure, including structural steelwork, roofing and fencing.

In coastal splash zones and within about 1 km of the sea, 316 stainless is generally the better choice.

A hot dip galvanised nut is tapped oversize after galvanising to allow for the coating, so match it with galvanised bolts. A clean, dry-to-touch lubricant on the nut threads helps when tightening.

What the class means

These are Class 8.

Fasteners are not lifting rated unless marked.

Choosing the right option

Match the nut to the bolt, stud or rod: thread form, diameter and pitch must all agree. Sizes are the nominal thread diameter in millimetres; compare the pitch with your bolt.
