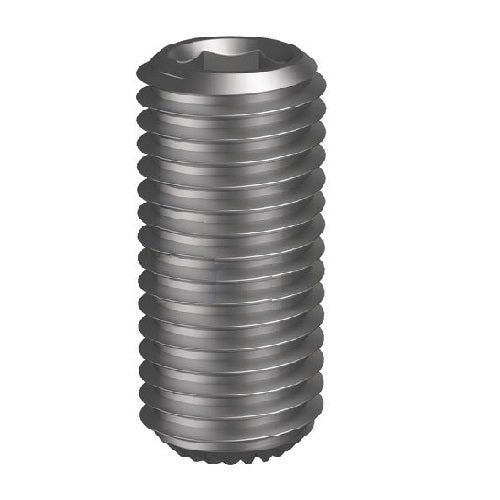

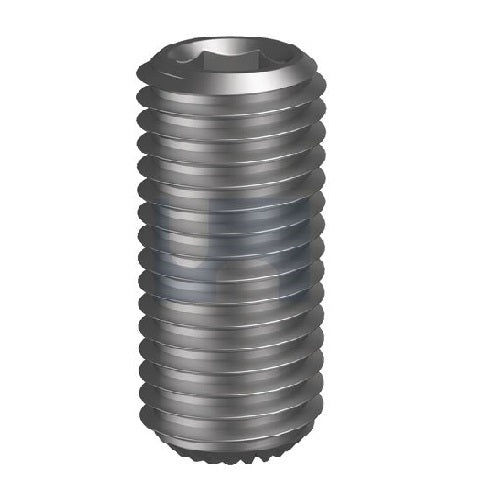

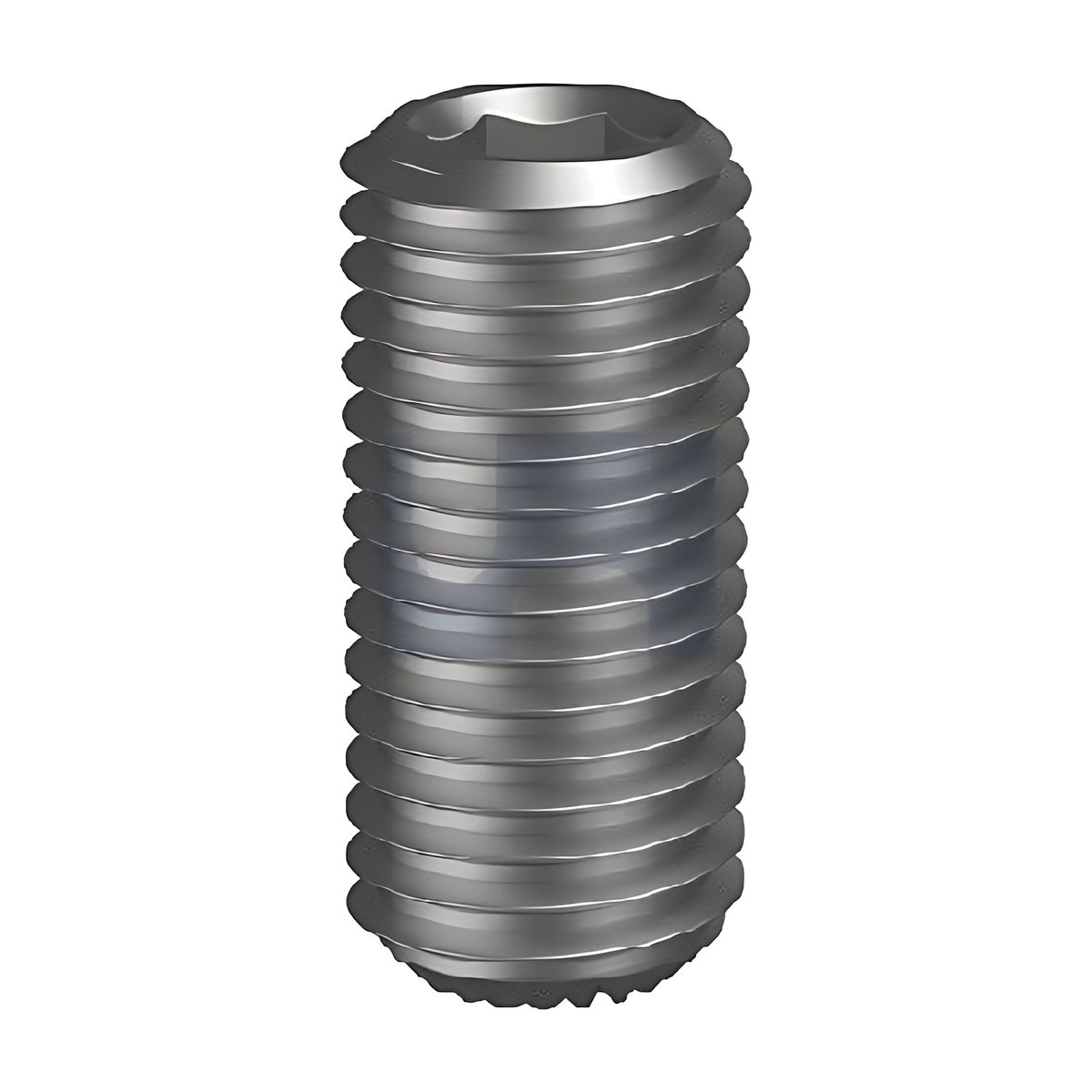

Bremick metric socket set (grub) screw, plain alloy steel, dark grey cylinder with full thread and a hex socket end
Bremick metric socket set (grub) screw, plain alloy steel, dark grey cylinder with full thread and a hex socket end

Bremick SSSKPCM030003 M3 x 3mm Socket Set (Grub) Screw, Alloy Steel, Plain

$12.01
$12.01
Inc. GST

Available

A socket set (grub) screw has no head. It is threaded along its whole length and is turned from a socket in one end with a key or bit. This page lists 70 Bremick metric socket set (grub) screw items (metric thread, alloy steel, plain finish): sizes M3 to M20, lengths 3mm to 60mm.

The pitch shown for each size is the coarse pitch given in the maker's thread table (manufacturer-stated). The product data does not state a pitch, so check the pitch of your nut or tapped hole.

The product data does not state a strength class for these screws, so no strength figure is published.

The product data does not give the socket (key) size, head dimensions or thread length for these screws, so none are published. Check the key size against a screw in hand.

The pack or box quantity for each item is shown in the table. It changes with the size and length.

Where this product is used

  • Fixing a collar, pulley or similar part onto a shaft by tightening the screw down on it
  • Driven from the socket with a matching key or bit; there is no head
  • Replacing a socket set screw of the same thread form, size, length and point

Features

  • 70 items: M3 to M20
  • Metric thread, socket set (grub) screw
  • Alloy steel, plain finish
  • Pack quantity shown for each item

Common specifications

Specification Detail
Sizes M3 to M20
Lengths 3mm to 60mm
Thread Metric
Type Socket set (grub), headless
Point Knurled cup
Material Alloy steel
Finish Plain

Pitch by size (manufacturer-stated)

Size Pitch
M3 0.5mm
M4 0.7mm
M5 0.8mm
M6 1mm
M8 1.25mm
M10 1.5mm
M12 1.75mm
M16 2mm
M20 2.5mm

Key specifications

Model Size Supplied as
SSSKPCM030003 M3 x 3mm Box of 100
SSSKPCM030004 M3 x 4mm Box of 100
SSSKPCM030005 M3 x 5mm Box of 100
SSSKPCM030006 M3 x 6mm Box of 100
SSSKPCM030008 M3 x 8mm Box of 100
SSSKPCM030010 M3 x 10mm Box of 100
SSSKPCM030016 M3 x 16mm Box of 100
SSSKPCM040004 M4 x 4mm Box of 100
SSSKPCM040005 M4 x 5mm Box of 100
SSSKPCM040006 M4 x 6mm Box of 100
SSSKPCM040008 M4 x 8mm Box of 100
SSSKPCM040010 M4 x 10mm Box of 100
SSSKPCM040012 M4 x 12mm Box of 100
SSSKPCM040016 M4 x 16mm Box of 100
SSSKPCM040020 M4 x 20mm Box of 100
SSSKPCM050005 M5 x 5mm Box of 100
SSSKPCM050006 M5 x 6mm Box of 100
SSSKPCM050008 M5 x 8mm Box of 100
SSSKPCM050010 M5 x 10mm Box of 100
SSSKPCM050012 M5 x 12mm Box of 100
SSSKPCM050016 M5 x 16mm Box of 100
SSSKPCM050020 M5 x 20mm Box of 100
SSSKPCM060006 M6 x 6mm Box of 100
SSSKPCM060008 M6 x 8mm Box of 100
SSSKPCM060010 M6 x 10mm Box of 100
SSSKPCM060012 M6 x 12mm Box of 100
SSSKPCM060016 M6 x 16mm Box of 100
SSSKPCM060020 M6 x 20mm Box of 100
SSSKPCM060025 M6 x 25mm Box of 100
SSSKPCM060030 M6 x 30mm Box of 100
SSSKPCM060035 M6 x 35mm Box of 100
SSSKPCM060040 M6 x 40mm Box of 100
SSSKPCM080008 M8 x 8mm Box of 100
SSSKPCM080010 M8 x 10mm Box of 100
SSSKPCM080012 M8 x 12mm Box of 100
SSSKPCM080016 M8 x 16mm Box of 100
SSSKPCM080020 M8 x 20mm Box of 100
SSSKPCM080025 M8 x 25mm Box of 100
SSSKPCM080030 M8 x 30mm Box of 100
SSSKPCM080035 M8 x 35mm Box of 100
SSSKPCM080040 M8 x 40mm Box of 100
SSSKPCM080050 M8 x 50mm Box of 100
SSSKPCM100010 M10 x 10mm Box of 100
SSSKPCM100012 M10 x 12mm Box of 100
SSSKPCM100016 M10 x 16mm Box of 100
SSSKPCM100020 M10 x 20mm Box of 100
SSSKPCM100025 M10 x 25mm Box of 100
SSSKPCM100030 M10 x 30mm Box of 100
SSSKPCM100035 M10 x 35mm Box of 100
SSSKPCM100040 M10 x 40mm Box of 100
SSSKPCM100050 M10 x 50mm Box of 50
SSSKPCM120016 M12 x 16mm Box of 100
SSSKPCM120020 M12 x 20mm Box of 100
SSSKPCM120025 M12 x 25mm Box of 100
SSSKPCM120030 M12 x 30mm Box of 100
SSSKPCM120035 M12 x 35mm Box of 100
SSSKPCM120040 M12 x 40mm Box of 50
SSSKPCM120045 M12 x 45mm Box of 50
SSSKPCM120050 M12 x 50mm Box of 50
SSSKPCM120060 M12 x 60mm Box of 50
SSSKPCM160016 M16 x 16mm Box of 50
SSSKPCM160020 M16 x 20mm Box of 50
SSSKPCM160025 M16 x 25mm Box of 50
SSSKPCM160030 M16 x 30mm Box of 50
SSSKPCM160040 M16 x 40mm Box of 50
SSSKPCM160050 M16 x 50mm Box of 50
SSSKPCM160060 M16 x 60mm Box of 25
SSSKPCM200020 M20 x 20mm Box of 50
SSSKPCM200025 M20 x 25mm Box of 50
SSSKPCM200035 M20 x 35mm Box of 25

Selecting the right option

Choose the thread form first: the screw must match its nut or tapped hole in thread form, diameter and pitch. Metric sizes are the nominal diameter in millimetres; compare the pitch with your thread. A grub screw has no head, so the length shown is the length of the whole screw, by convention; the product data does not state the measuring point. Check the key size against the screw in hand, as the product data does not state it.

Related products

Related screws: Bremick Metric Button Head Socket Screw, Grade 12.9, Alloy Steel, Plain, M3 to M12, Bremick BSW Socket Head Cap Screw, Alloy Steel, Plain, 3/16" to 3/4" and Bremick Metric Flat Round Washer, Mild Steel, Plain, M6 to M56.
Product Highlights −

A socket set (grub) screw has no head. It is threaded along its whole length and is turned from a socket in one end with a key or bit. This page lists 70 Bremick metric socket set (grub) screw items (metric thread, alloy steel, plain finish): sizes M3 to M20, lengths 3mm to 60mm.

The pitch shown for each size is the coarse pitch given in the maker's thread table (manufacturer-stated). The product data does not state a pitch, so check the pitch of your nut or tapped hole.

The product data does not state a strength class for these screws, so no strength figure is published.

The product data does not give the socket (key) size, head dimensions or thread length for these screws, so none are published. Check the key size against a screw in hand.

The pack or box quantity for each item is shown in the table. It changes with the size and length.
