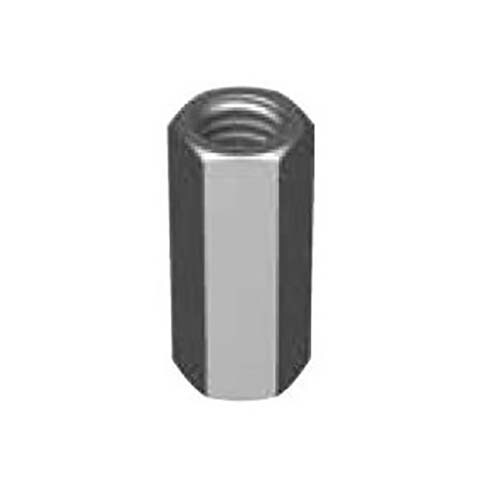

Hobson Metric Hex Coupler Nut, M6
The price shown is for the pack.
Available
The Hobson metric hex coupler nut comes in 5 sizes: M6 to M36; zinc plated finish. A hex coupling nut is a long hex nut used to join two threaded rods or studs end to end. These nuts are Class 5.
ZP means zinc, usually referencing zinc plating (zinc with clear chromate).
Where this product is used
- Joining two threaded rods or studs of the same thread end to end
- Extending a run of threaded rod
Features
- 5 sizes: M6 to M36
- Metric thread
- Zinc plated finish
- Class 5
- Pack quantity shown for each item
Key specifications
| Specification | Detail |
|---|---|
| Brand | Hobson |
| Sizes | M6 to M36 |
| Thread | Metric |
| Class | 5 |
| Finish | Zinc plated |
Choosing the right option
Choose the thread form first: the nut and its bolt or stud must match in thread form, diameter and pitch. The second figure in each size (for example 50mm in M16 x 50mm) is the nut length; choose it to suit the rods you are joining.
Related nuts: Hobson BSW Hex Coupler Nut, Zinc Plated, 1/4" to 7/8", Hobson Metric Hex Coupler Nut, Class 8, Hot Dip Galvanised, M16 to M48 and Hobson Metric Hex Coupling Nut, Grade 5, Mild Steel, Hot Dip Galvanised, M10 to M20.
| Option | Part number | SKU |
|---|---|---|
| M6 | AXHC05ZCM06 | A0135132 |
| M20 | AXHC05ZCM20 | A0135133 |
| M24 | AXHC05ZCM24 | A0135134 |
| M30 | AXHC05ZCM30 | A0135135 |
| M36 | AXHC05ZCM36 | A0135136 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hobson Metric Hex Coupler Nut, Class 5, Zinc Plated, M6 to M36: M6
SKU: A0135132 | Model: AXHC05ZCM06
Hobson AXHC05ZCM06: M6 x 18mm metric hex coupler nut, Class 5, zinc plated. Pack of 100. Pitch 1mm.
