Finer Power mi-Lock No. 1 Bush, bore (inch) 1
Available

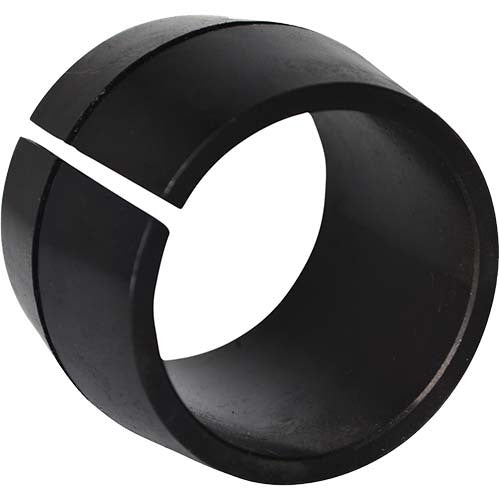

These Mi-Lock No. 1 bushes have imperial bores from 3/8 to 1-1/8", in 13 sizes. A Mi-Lock bush mounts a Mi-Lock pulley on a shaft.
The No. 1 Bush, which cover 71 to 132mm pitch diameter on the A section. Choose the bush number to match the pulley, then choose the bore to suit your shaft.
Where this product is used
- Mounting Mi-Lock V-pulleys on shafts
- Belt drives using A and B section V belts
Features
- Mi-Lock No. 1 bush for Mi-Lock pulleys
- Imperial bores from 3/8 to 1-1/8"
- 13 bore sizes
- Suits Mi-Lock V-pulleys of 71 to 132mm pitch diameter (A section)
- Retainer kit and long bolt are available separately
Key specifications
| Specification | Detail |
|---|---|
| Product | Mi-Lock bush |
| Bush size | No. 1 |
| Bore system | Imperial |
| Bore range | 3/8 to 1-1/8" |
| Number of sizes | 13 |
| Suits pulleys | Mi-Lock V-pulleys, 71 to 132mm pitch diameter (A section) |
Models
| Model | Bore (in) | Bore (mm) |
|---|---|---|
| NO1-3/8 | 3/8 | 9.5 |
| NO1-7/16 | 7/16 | 11.1 |
| NO1-1/2 | 1/2 | 12.7 |
| NO1-9/16 | 9/16 | 14.3 |
| NO1-5/8 | 5/8 | 15.9 |
| NO1-11/16 | 11/16 | 17.5 |
| NO1-3/4 | 3/4 | 19.1 |
| NO1-13/16 | 13/16 | 20.6 |
| NO1-7/8 | 7/8 | 22.2 |
| NO1-15/16 | 15/16 | 23.8 |
| NO1-1 | 1 | 25.4 |
| NO1-1-1/16 | 1-1/16 | 27 |
| NO1-1-1/8 | 1-1/8 | 28.6 |
Choosing the right option
Match the bush number to your Mi-Lock pulley: the No. 1 Bush. Then choose the bore to suit your shaft diameter.
| Option | Part number | SKU |
|---|---|---|
| 1 | NO1-1 | A0148588 |
| 1-1/16 | NO1-1-1/16 | A0148589 |
| 1-1/8 | NO1-1-1/8 | A0148590 |
| 1-1/2 | NO1-1/2 | A0148591 |
| 3/4 | NO1-3/4 | A0148595 |
| 3/8 | NO1-3/8 | A0148596 |
| 5/8 | NO1-5/8 | A0148597 |
| 7/16 | NO1-7/16 | A0148598 |
| 7/8 | NO1-7/8 | A0148599 |
| 9/16 | NO1-9/16 | A0148600 |
| 11/16 | NO1-11/16 | A0148592 |
| 13/16 | NO1-13/16 | A0148593 |
| 15/16 | NO1-15/16 | A0148594 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mi-Lock No. 1 Bush, Imperial Bore, 3/8 to 1-1/8 in: 1
SKU: A0148588 | Model: NO1-1
Mi-Lock No. 1 Bush, 1" (25.4mm) bore.
