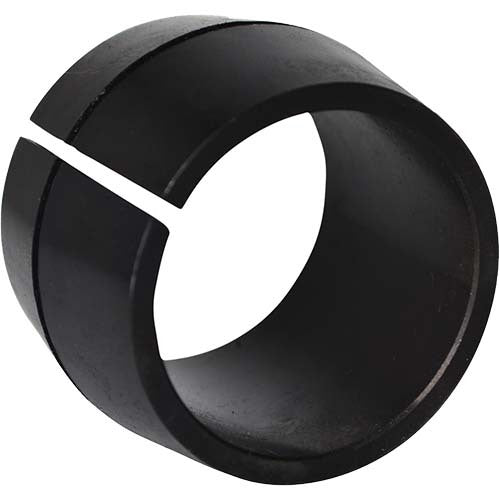

Mi-Lock No. 2 Bush, 1 in Bore
Regular price
$45.91
Sale price
$45.91
Regular price
Inc. GST
Available
These Mi-Lock No. 2 bushes have imperial bores from 1/2 to 1-9/16 in, in 18 sizes. A Mi-Lock bush mounts a Mi-Lock pulley on a shaft.
The No. 2 bush suits the Mi-Lock V-pulleys listed as Suits No. 2 Bush, which cover 140 to 450 mm pitch diameter on the A section. Choose the bush number to match the pulley, then choose the bore to suit your shaft.
Where this product is used
- Mounting Mi-Lock V-pulleys on shafts
- Belt drives using A and B section V belts
Features
- Mi-Lock No. 2 bush for Mi-Lock pulleys
- Imperial bores from 1/2 to 1-9/16 in
- 18 bore sizes
- Suits Mi-Lock V-pulleys of 140 to 450 mm pitch diameter (A section)
- Retainer kit and long bolt are available separately
Key specifications
| Specification | Detail |
|---|---|
| Product | Mi-Lock bush |
| Bush size | No. 2 |
| Bore system | Imperial |
| Bore range | 1/2 to 1-9/16 in |
| Number of sizes | 18 |
| Suits pulleys | Mi-Lock V-pulleys, 140 to 450 mm pitch diameter (A section) |
Models
| Model | Bore (in) | Bore (mm) |
|---|---|---|
| NO2-1/2 | 1/2 | 12.7 |
| NO2-9/16 | 9/16 | 14.3 |
| NO2-5/8 | 5/8 | 15.9 |
| NO2-11/16 | 11/16 | 17.5 |
| NO2-3/4 | 3/4 | 19.1 |
| NO2-13/16 | 13/16 | 20.6 |
| NO2-7/8 | 7/8 | 22.2 |
| NO2-15/16 | 15/16 | 23.8 |
| NO2-1 | 1 | 25.4 |
| NO2-1-1/16 | 1-1/16 | 27 |
| NO2-1-1/8 | 1-1/8 | 28.6 |
| NO2-1-3/16 | 1-3/16 | 30.2 |
| NO2-1-1/4 | 1-1/4 | 31.8 |
| NO2-1-5/16 | 1-5/16 | 33.3 |
| NO2-1-3/8 | 1-3/8 | 34.9 |
| NO2-1-7/16 | 1-7/16 | 36.5 |
| NO2-1-1/2 | 1-1/2 | 38.1 |
| NO2-1-9/16 | 1-9/16 | 39.7 |
Selecting and fitting
Match the bush number to your Mi-Lock pulley: the No. 2 bush suits the pulleys listed as Suits No. 2 Bush. Then choose the bore to suit your shaft diameter.
Imperial bores are listed in inches, with the metric conversion shown in the table.
