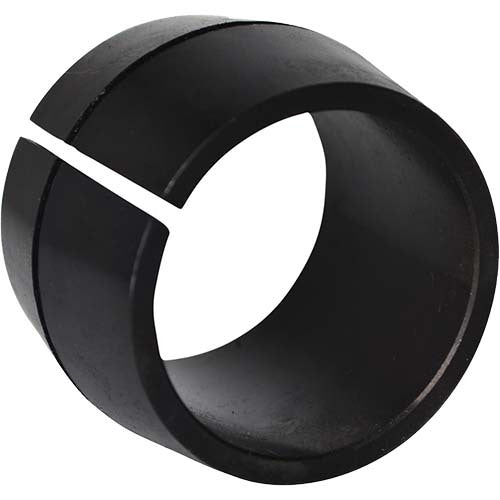

Finer Power mi-Lock No. 2 Bush, bore (mm) 16
Available
These Mi-Lock No. 2 bushes have metric bores from 16 to 42mm, in 14 sizes. A Mi-Lock bush mounts a Mi-Lock pulley on a shaft.
The No. 2 Bush, which cover 140 to 450mm pitch diameter on the A section. Choose the bush number to match the pulley, then choose the bore to suit your shaft.
Where this product is used
- Mounting Mi-Lock V-pulleys on shafts
- Belt drives using A and B section V belts
Features
- Mi-Lock No. 2 bush for Mi-Lock pulleys
- Metric bores from 16 to 42mm
- 14 bore sizes
- Suits Mi-Lock V-pulleys of 140 to 450mm pitch diameter (A section)
- Retainer kit and long bolt are available separately
Key specifications
| Specification | Detail |
|---|---|
| Product | Mi-Lock bush |
| Bush size | No. 2 |
| Bore system | Metric |
| Bore range | 16 to 42mm |
| Number of sizes | 14 |
| Suits pulleys | Mi-Lock V-pulleys, 140 to 450mm pitch diameter (A section) |
Models
| Model | Bore (mm) |
|---|---|
| NO2-16MM | 16 |
| NO2-18MM | 18 |
| NO2-19MM | 19 |
| NO2-20MM | 20 |
| NO2-22MM | 22 |
| NO2-24MM | 24 |
| NO2-25MM | 25 |
| NO2-28MM | 28 |
| NO2-30MM | 30 |
| NO2-32MM | 32 |
| NO2-35MM | 35 |
| NO2-38MM | 38 |
| NO2-40MM | 40 |
| NO2-42MM | 42 |
Choosing the right option
Match the bush number to your Mi-Lock pulley: the No. 2 Bush. Then choose the bore to suit your shaft diameter.
| Option | Part number | SKU |
|---|---|---|
| 16 | NO2-16MM | A0148631 |
| 18 | NO2-18MM | A0148632 |
| 19 | NO2-19MM | A0148633 |
| 20 | NO2-20MM | A0148634 |
| 22 | NO2-22MM | A0148635 |
| 24 | NO2-24MM | A0148636 |
| 25 | NO2-25MM | A0148637 |
| 28 | NO2-28MM | A0148638 |
| 30 | NO2-30MM | A0148639 |
| 32 | NO2-32MM | A0148640 |
| 35 | NO2-35MM | A0148641 |
| 38 | NO2-38MM | A0148642 |
| 40 | NO2-40MM | A0148643 |
| 42 | NO2-42MM | A0148644 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Mi-Lock No. 2 Bush, Metric Bore, 16 to 42 mm: 16
SKU: A0148631 | Model: NO2-16MM
Mi-Lock No. 2 Bush, 16mm bore.
