Seco MM06-0.38-1.6-0-0002 Insert
Available
Genuine Seco Minimaster™ Shank MM06 Insert Taper Size 9.53 x 7 x 40mm (Cylindrical) MM06-0.38-1.6-0-0002.
Key Specifications
| Shank Type | Cylindrical |
|---|---|
| Insert Taper Size | MM06 |
| Body Half Taper Angle (BHTA) | 0° |
| Rotational Speed Maximum (RPMX) | 80,000 rpm |
| Additional Details | Minimaster™ Shank MM06 Cylindrical - Design 2 (Cylindrical Back End and 90° Front) Cylindrical back end and 90° front. |
About Minimaster™
Minimaster™ is a unique, versatile end milling system that can combine different solutions for optimum accessibility and maximum stability and security. The flexible two-piece design combines shanks and inserts to save time, money and create a versatile tool that enables users to find a solution for almost every application whether they need to minimize the overhang, attain maximum stability, or more. When an insert is worn, users easily replace just the insert, saving the cost of replacing the entire tool and the time for regrinding. The Minimaster range encompasses a wide range of inserts and shanks, making it the most flexible end milling system in the industry. There are more than 600 combinations of inserts and shanks for each diameter between 6 – 20 mm, and the inserts can be ordered in many different versions such as under-sized inserts for keyway, square shoulder inserts with sharp edges or corner radius, center drilling, chamfering 45–60° or double chamfer, high feed inserts, plunge milling and copy milling inserts in 90–120° ball nose versions. Seco Minimaster for 3D milling is available in 2- and 3- flute versions, with the 3-flute version it is possible to improve the productivity with higher feed rates, and with the 2-flute version, it is possible to minimize the risk of vibration.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
MM06-0.38-1.6-0-0002
Model Number: 00096107
-
MM06-10040.0-0007
Model Number: 00094747
-
MM06-10050.0-0007DS
Model Number: 02580666
-
MM06-0.62-3.5-0-0004DS
Model Number: 02593394
-
MM06-16090.0-0012DS
Model Number: 02580670
-
MM06-16095.0-0024DS
Model Number: 02580673
-
MM06-0.62-3.7-0-0009DS
Model Number: 02593395
-
MM08-0.38-1.6-0-0002
Model Number: 00096119
-
MM08-10040.0-0007
Model Number: 00083980
-
MM08-10050.0-0007DS
Model Number: 02580665
-
MM08-0.62-3.3-0-0006DS
Model Number: 02593402
-
MM08-16085.0-0016DS
Model Number: 02580675
-
MM08-16100.0-0032DS
Model Number: 02580687
-
MM08-0.62-4.0-0-0012DS
Model Number: 02593403
-
MM10-0.38-1.8-0-0002
Model Number: 00096126
-
MM10-12060.0-0007DS
Model Number: 02580667
-

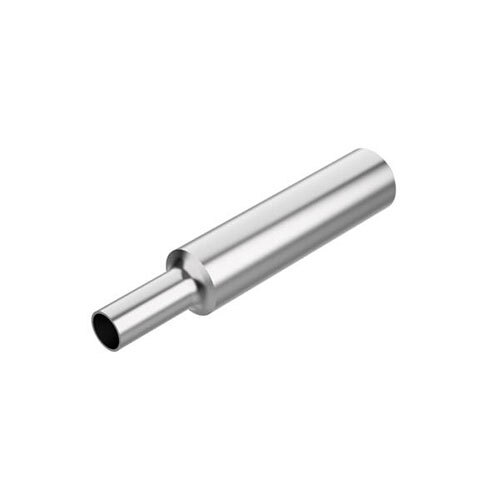

MM10-16085.0-0020DS
Model Number: 02580688
-
MM10-16105.0-0040DS
Model Number: 02580689
-
MM10-0.75-4.1-0-0015DS
Model Number: 02593422
-
MM10-10045.0-0007
Model Number: 00083979
-
MM12-0.50-2.2-0-0003
Model Number: 00096133
-
MM12-0.75-3.8-0-0009DS
Model Number: 02593428
-
MM12-16095.0-0024DS
Model Number: 02580690
-
MM12-0.75-4.5-0-0018DS
Model Number: 02593430
-
MM12-16115.0-0048DS
Model Number: 02580691
-

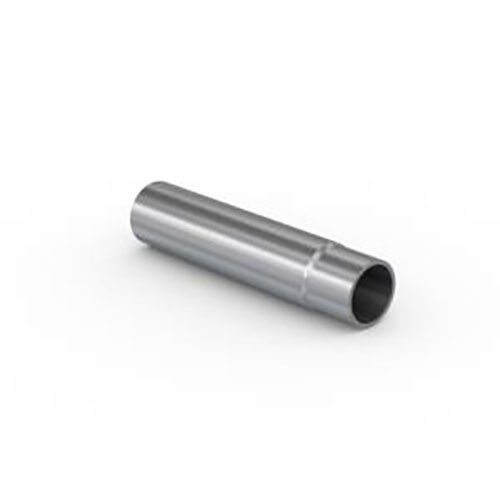

MM12-12055.0-0008
