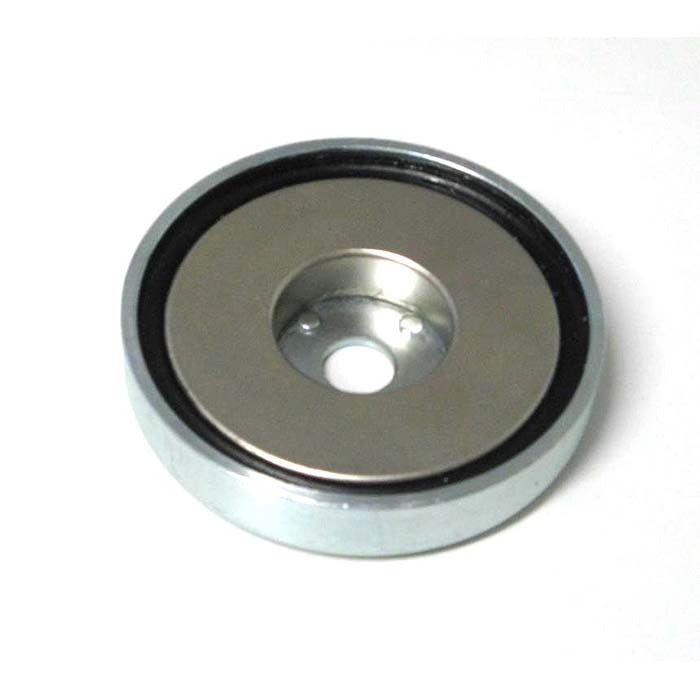

MSA Magnetics rare earth pot magnet, 16mm diameter

The MSA B Series is a range of rare earth pot magnets with a straight hole. There are 10 sizes, from 16mm to 88mm in diameter, with attraction from 4kg to 180kg.

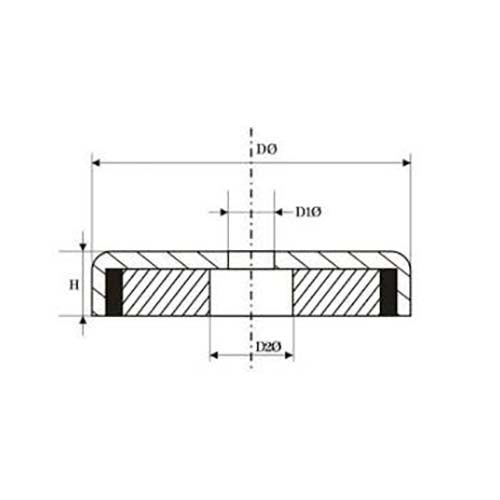

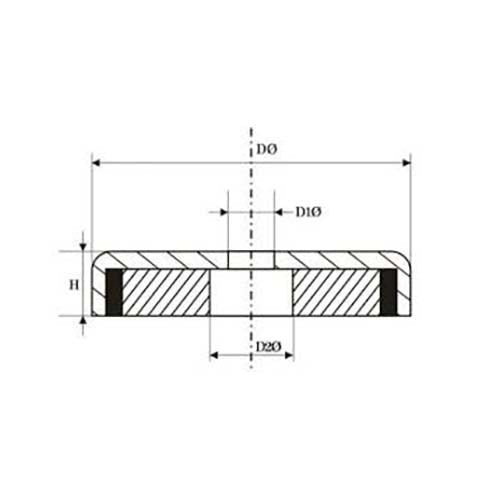

A pot magnet is a magnet set in a steel shell, so that it holds on its open flat face. The range is neodymium magnets. The B Series has a straight centre hole, so the magnet can be fixed with a screw or bolt through the hole. It has the two hole diameters (D1 and D2) for each size and does not name a screw size. It has attraction in kilograms and dead weight in grams for every size.

Where this product is used

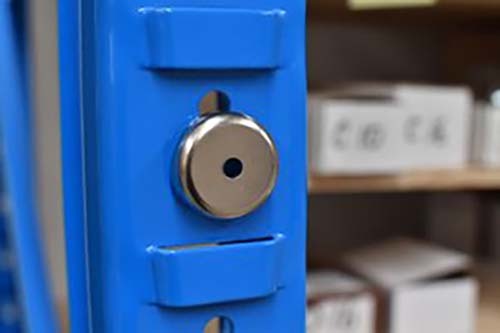

• Fixing a magnet to a panel, bracket or fixture with a screw or bolt through the centre hole
• Holding steel parts or fixtures in place on the magnet face
• Magnetic mounting of signs, tags or light fittings to steel surfaces, within a safe margin of the attraction figure

Features

• 10 sizes, 16mm to 88mm diameter
• Straight centre hole in every size
• Attraction 4kg to 180kg
• Neodymium magnet
• Height, dead weight and attraction for every size

Key specifications

Choosing the right option

Choose the size on the attraction figure and the space you have: attraction rises with diameter, from 4kg at 16mm to 180kg at 88mm. Holding force falls on thin, rough, painted or curved steel and the figure makes no allowance for that, so keep a margin and test on your own steel. It has attraction, not a safe working load: do not use a pot magnet to lift or suspend a load where a fall could cause injury. Rare earth magnets are strong and brittle: handle them with care, keep them clear of pacemakers and electronic media, and do not let two magnets snap together.

Other MSA pot magnet series: MSA A Series countersunk centre hole pot magnets, MSA C Series male thread pot magnets, MSA D Series female threaded boss pot magnets.
