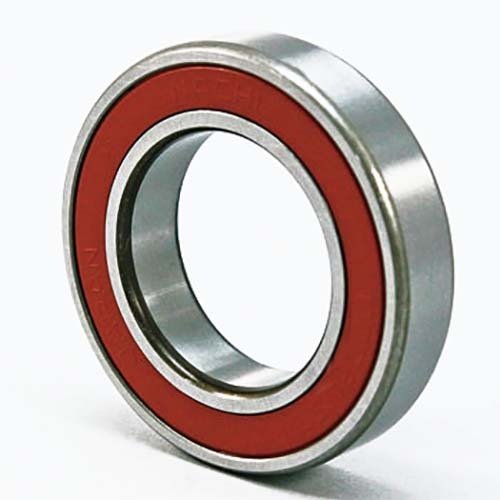

NACHI 6300-2NSE9 Sealed Deep Groove Ball Bearing 10x35x11 mm

This NACHI range covers 54 single row deep groove ball bearings, contact sealed, from 10 to 120 mm bore (outer diameters 28 to 215 mm, widths 8 to 47 mm). Select the size from the drop-down: each size has its own bearing number, load ratings and limiting speed in the Model Details.

Deep groove bearings are the most widely used ball bearing type. They carry radial, axial and combined loads, run at high speed with high running accuracy, and need no adjustment. The 24 bearings with a 9 in the number (for example 6300-2NSE9) are NACHI QUEST bearings with heat-resistant nitrile seals and NACHI high-performance grease.

Where this product is used

• Electric motors and generators
• Pumps, fans and blowers
• Gearboxes and industrial transmissions
• Conveyor rollers, idlers and pulleys
• Power tools, appliances and general industrial machinery

Features

• Two contact rubber seals (2NS/2NSE/2NSL/2NSE9) retain the factory grease fill and give excellent dust and water proofing, including in severe dust environments
• Seal contact adds friction torque, so limiting speed is lower than the equivalent open or shielded bearing
• NACHI QUEST bearings (suffix 9): heat-resistant nitrile seals and NACHI high-performance grease, with two times the grease life of NACHI’s conventional grease at 120 °C
• Load ratings, limiting speeds and mass for every size are taken from the manufacturer’s catalogue; boundary dimensions follow the ISO/JIS standard plan

Key specifications

Available sizes

Selecting the right option

Contact-sealed bearings (NSE, NSL, NS) give the best dust and water proofing of the three closure types and can run in severe dust. The trade-off is higher friction torque and a lower limiting speed. The filled grease can leak at high speed or high temperature, or if the outer ring rotates. For standard filled grease the recommended temperature range is -25 to 100 °C.

Fitting and use

Check the load and speed against the catalogue figures in the table before ordering, and apply a suitable safety factor. These bearings must always carry a minimum radial load so the balls roll rather than slide, and heavy axial loads should be checked with AIMS before ordering.

Press the ring that is being fitted, not the other ring or the balls: force goes through the side face of the inner ring on a shaft and the outer ring in a housing.

Sealed bearings are built for inner ring rotation, so they are not suited to high speed outer ring rotation. Do not wash or heat sealed bearings before mounting.

Related products

The same NACHI deep groove range is also available with other closures: NACHI open deep groove ball bearings (31 sizes) and NACHI double shielded deep groove ball bearings (60 sizes).
