Save 25%
NACHI NJ305C3 Cylindrical Roller Bearings | AIMS Industrial
Regular price
$43.32
Sale price
$43.32
Regular price
$57.76
Inc. GST
Available
◆
Very high radial load capacity at speed via line contact
●
Series design to ISO standard for direct interchange
▲
Separable construction simplifies fitting and removal

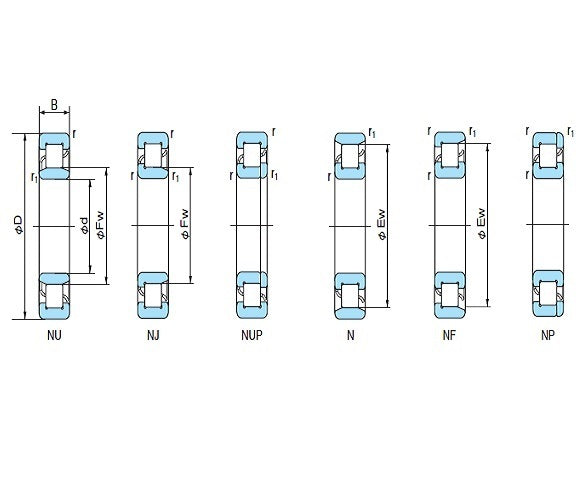

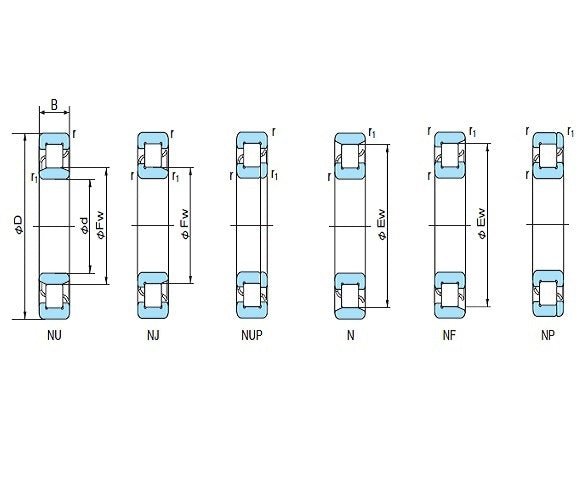

Where radial load is the headline. NACHI cylindrical roller bearings carry very high radial loads at high speed thanks to line contact between the rollers and the raceways. The standard EG range uses a high-capacity geometry that lifts load rating without changing envelope dimensions. NJ, NU and N configurations cover the common axial location and separability requirements. This product page covers the cylindrical roller family from NACHI supplied at C3 clearance, with 12 variants spanning the standard size range, so the matching size for your shaft is in stock as a single ordering family.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-

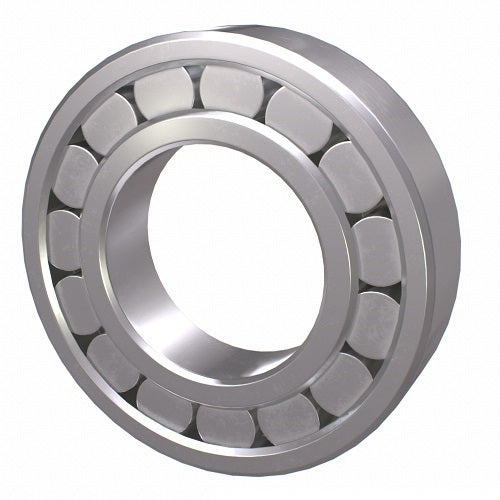

17 x 40 x 12mm bearing
Model Number: NJ203C3/NACHI
-
25 x 62 x 17mm bearing
Model Number: NJ305C3/NACHI
-
30 x 62 x 16mm bearing
Model Number: NJ206C3/NACHI
-
30 x 72 x 19mm bearing
Model Number: NJ306C3/NACHI
-
35 x 72 x 17mm bearing
Model Number: NJ207C3/NACHI
-
40 x 80 x 18mm bearing
Model Number: NJ208C3/NACHI
-
45 x 85 x 19mm bearing
Model Number: NJ209C3/NACHI
-
50 x 110 x 27mm bearing
Model Number: NJ310C3/NACHI
-
50 x 90 x 20mm bearing
Model Number: NJ210C3/NACHI
-
55 x 100 x 21mm bearing
Model Number: NJ211C3/NACHI
-
70 x 150 x 35mm bearing
Model Number: NJ314C3/NACHI
-
70 x 125 x 24mm bearing
Model Number: NJ214C3/NACHI
